Timing Belt Tensioner: Service and Repair

Timing Belt Tensioner Pulley Replacement

Removal Procedure





1. Remove intake air resonator.
2. Remove the intake plenum.
3. Remove the timing belt cover.
4. Remove the timing belt.

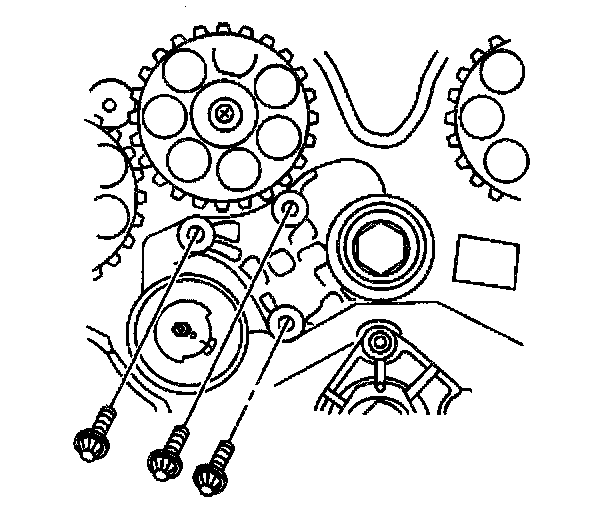

5. Remove the timing belt tensioner pulley bracket bolts.
6. Remove the timing belt tensioner bracket with pulley.

Installation Procedure

1. Install the timing belt tensioner pulley and bracket assembly.

Notice: Refer to Fastener Notice in Service Precautions.





2. Install the timing belt tensioner pulley bracket bolts.
Tighten the timing belt tensioner bracket bolts to 40 Nm (30 ft. lbs.).
3. Install the timing belt.
4. Install the timing belt cover.
5. Install the intake plenum.
6. Install the intake air resonator.
