Lower Channel Plate, Control Valve Body

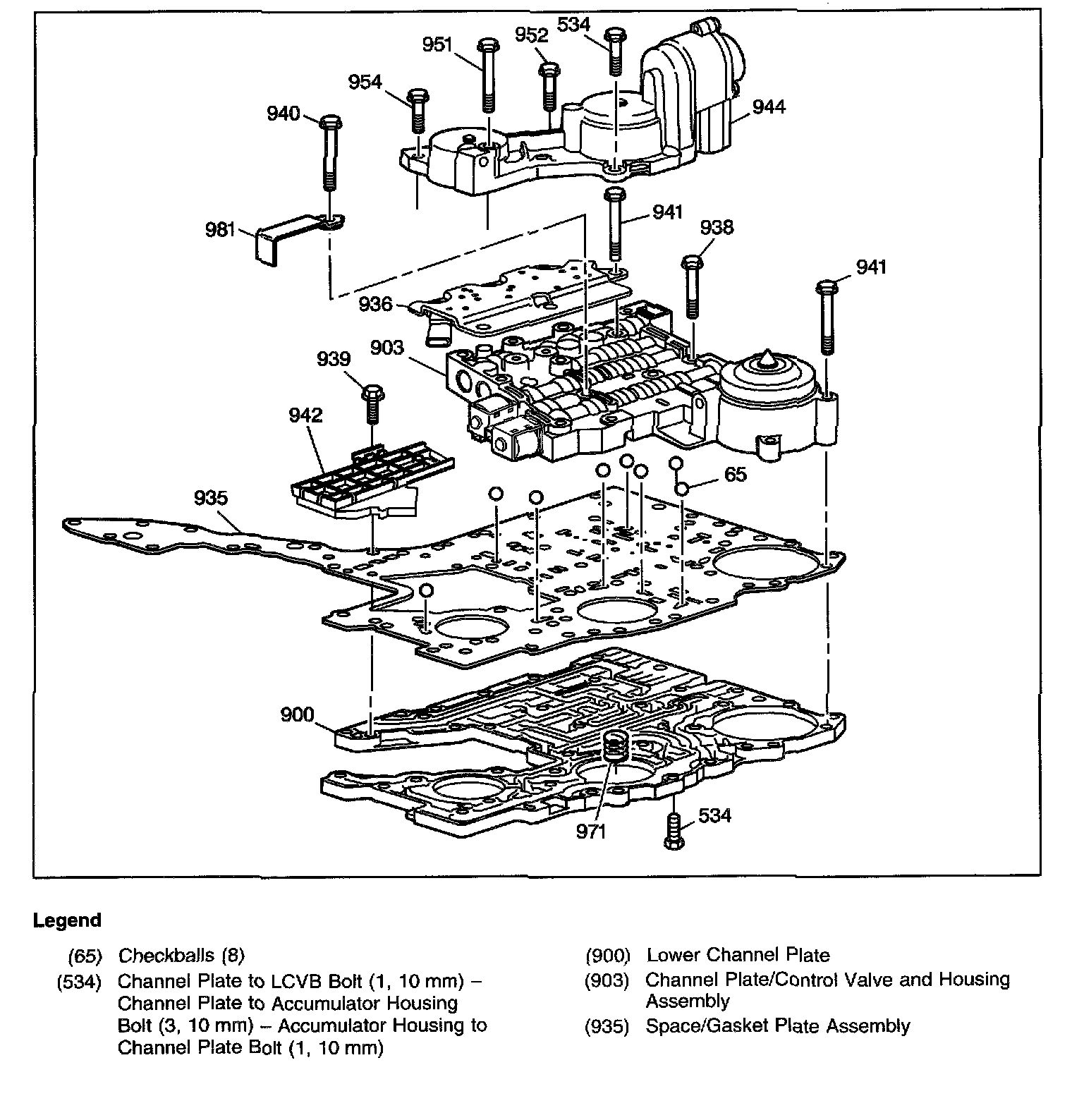

Part 1 of 2

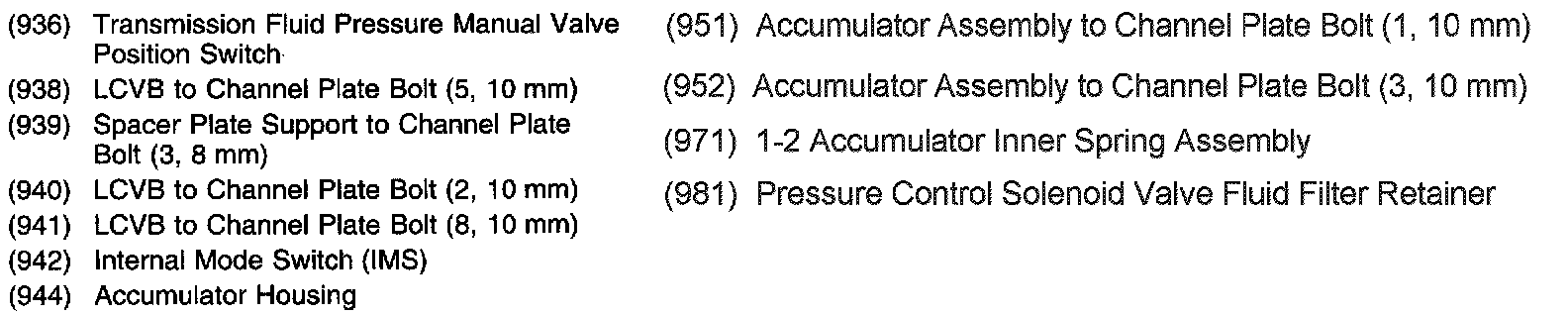

Part 2 of 2

Lower Channel Plate, Control Valve Body and Accumulator Housing Assembly
