Condenser HVAC: Service and Repair
CONDENSER REPLACEMENTTOOLS REQUIRED
J 39400-A Halogen Leak Detector
REMOVAL PROCEDURE
1. Recover the refrigerant.
2. Remove the radiator.

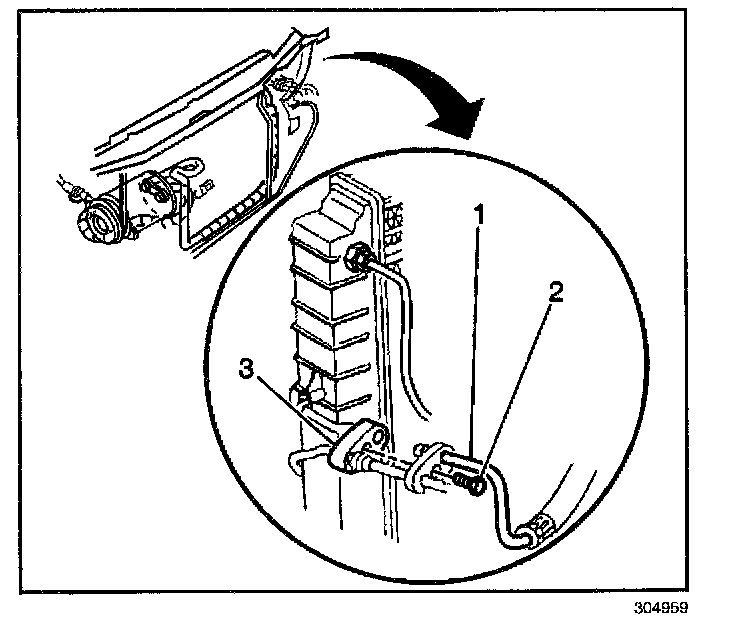

3. Remove the condenser inlet and outlet lines (1).

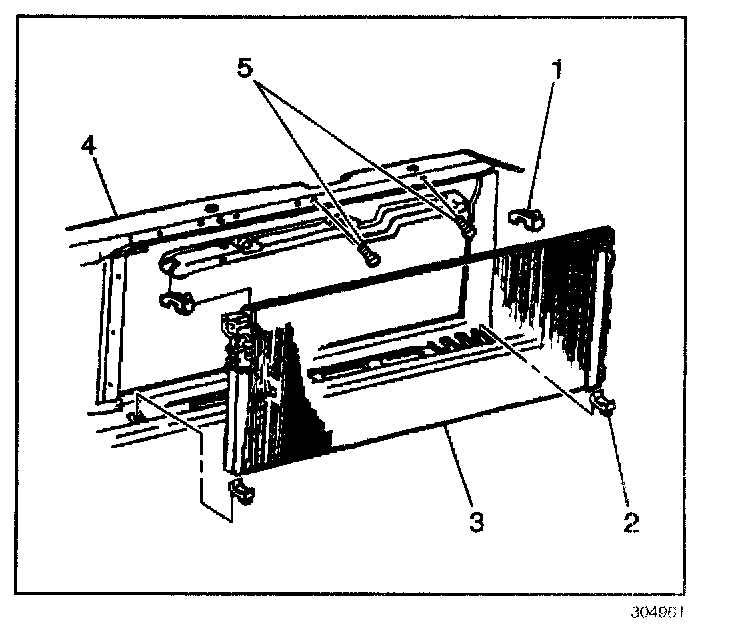

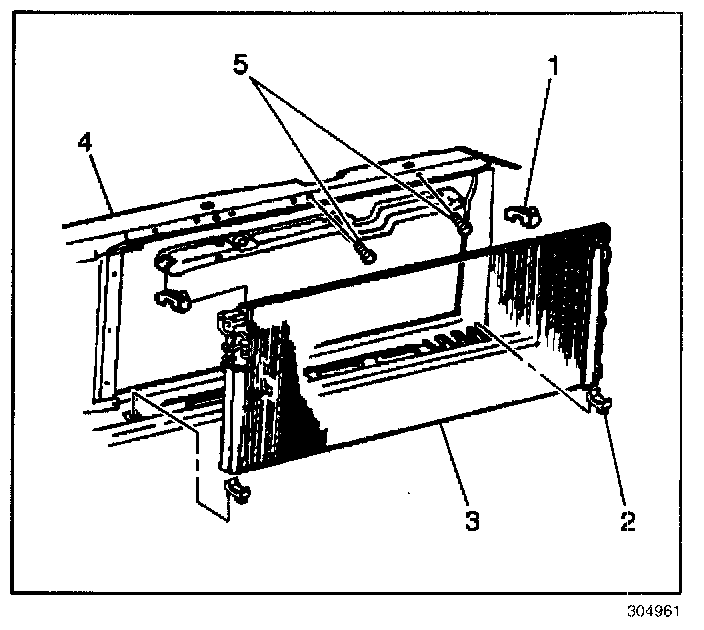

4. Remove the condenser to radiator attachment bolts.
5. Remove the condenser (3).
INSTALLATION PROCEDURE
NOTE: Refer to Fastener Notice in Service Precautions.
1. Install the condenser (3) to the radiator.
Tighten
Tighten the bolts to 12 N.m (9 lb ft).
2. Install the radiator and condenser assembly into the vehicle.

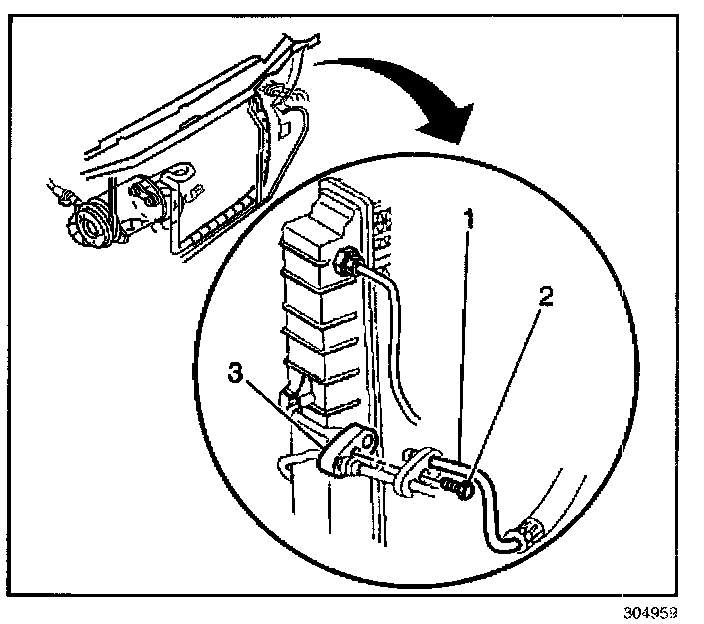

3. Connect the refrigerant lines to the condenser (3).
Tighten
Tighten the condenser line fittings to 24 N.m (18 lb ft).
4. Recharge the A/C system.
5. Leak test the fittings of the component using the J 39400-A.
