Home >> Cadillac >> 2002 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> Shift Lock Control (A/T Fluid Pressure Manual Valve Pos Sw)

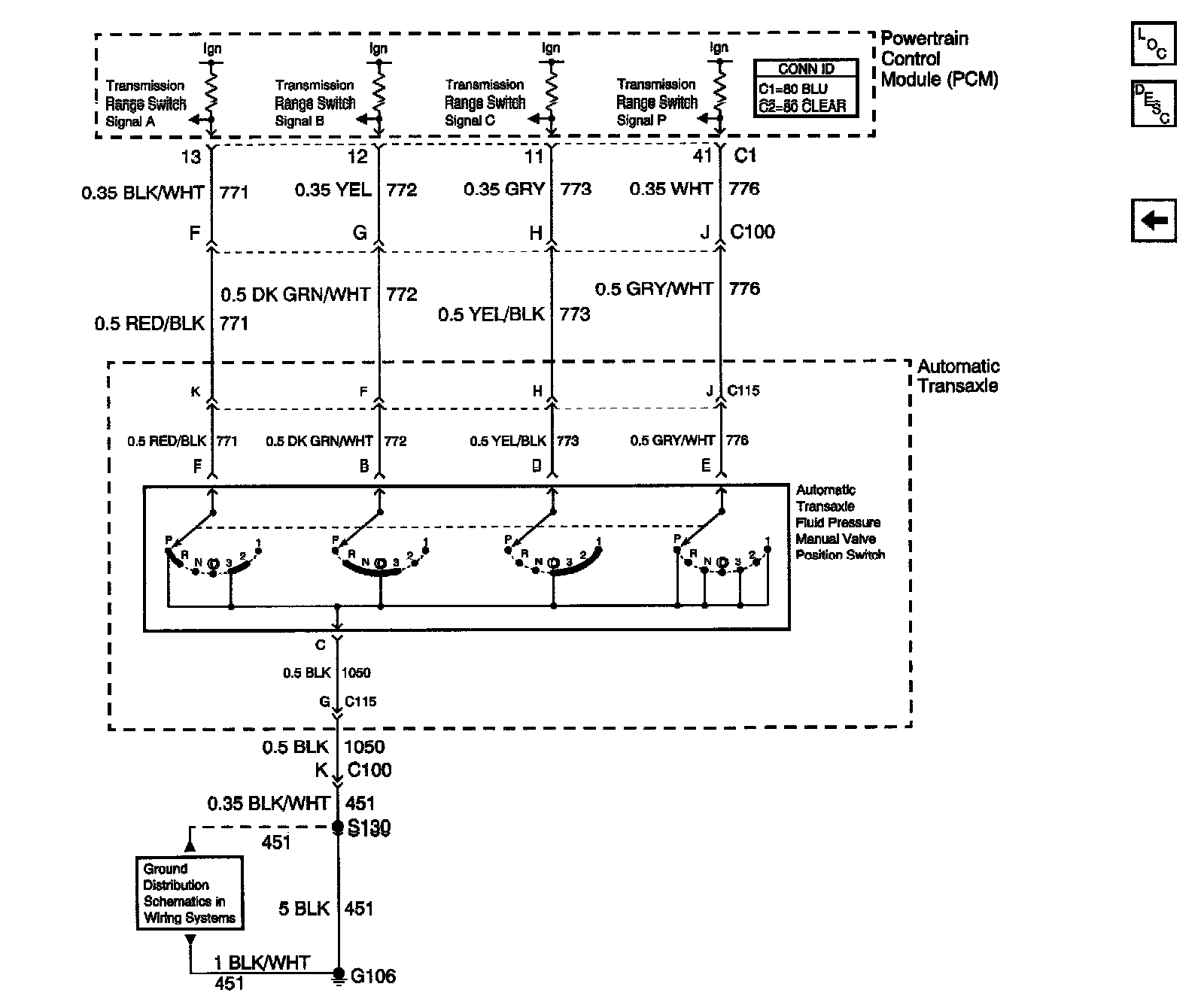

Shift Lock Control (A/T Fluid Pressure Manual Valve Pos Sw)
