4T80-E Automatic Transaxle

Automatic Transaxle - 4T80-E





Transmission Fluid Temperature (TFT) Sensor Specifications

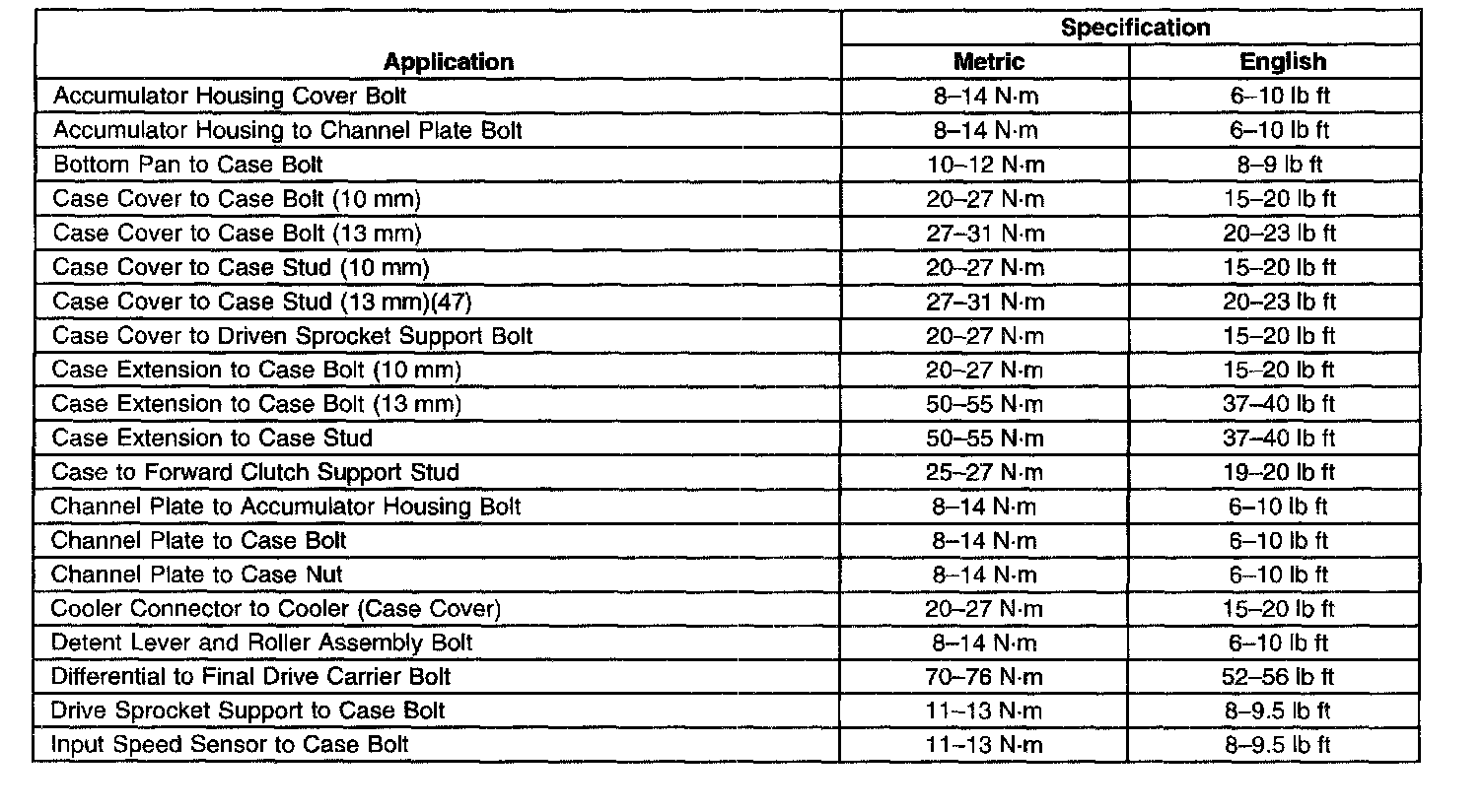

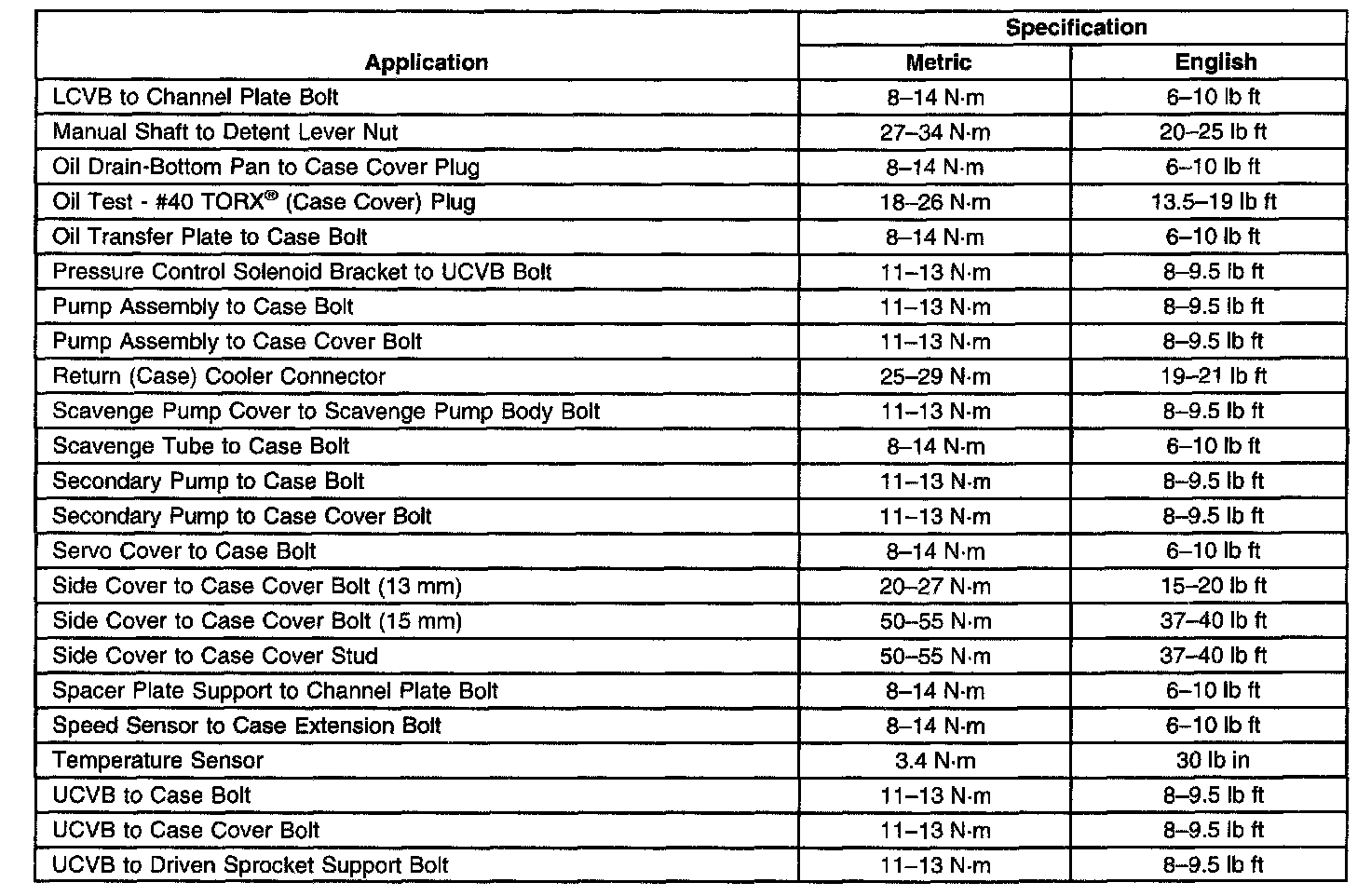

Fastener Tightening Specifications

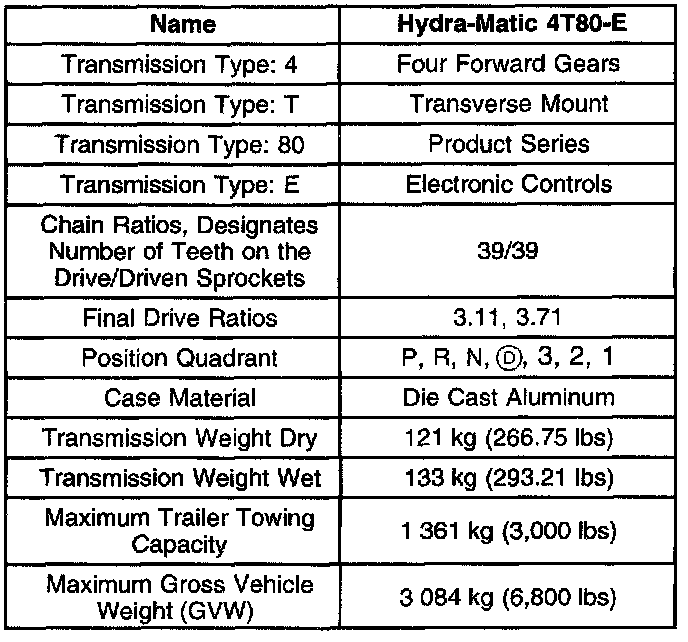

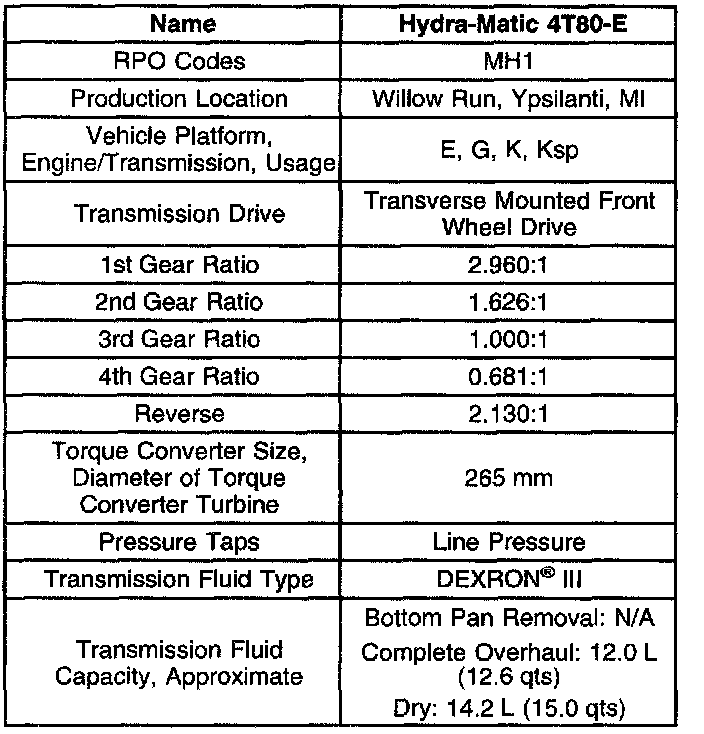

Transmission General Specifications

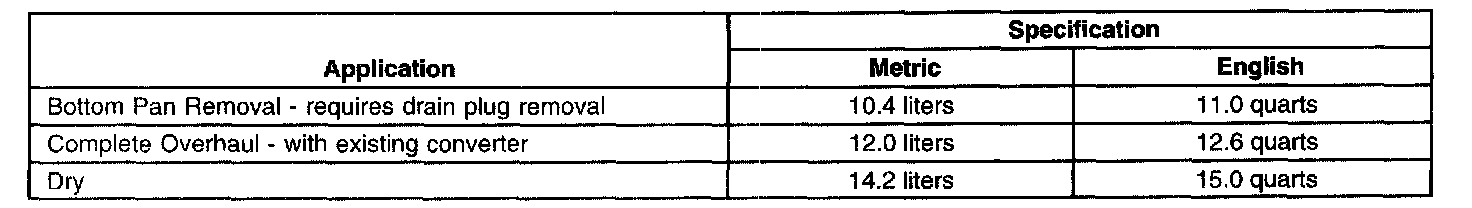

Fluid Capacity Specifications

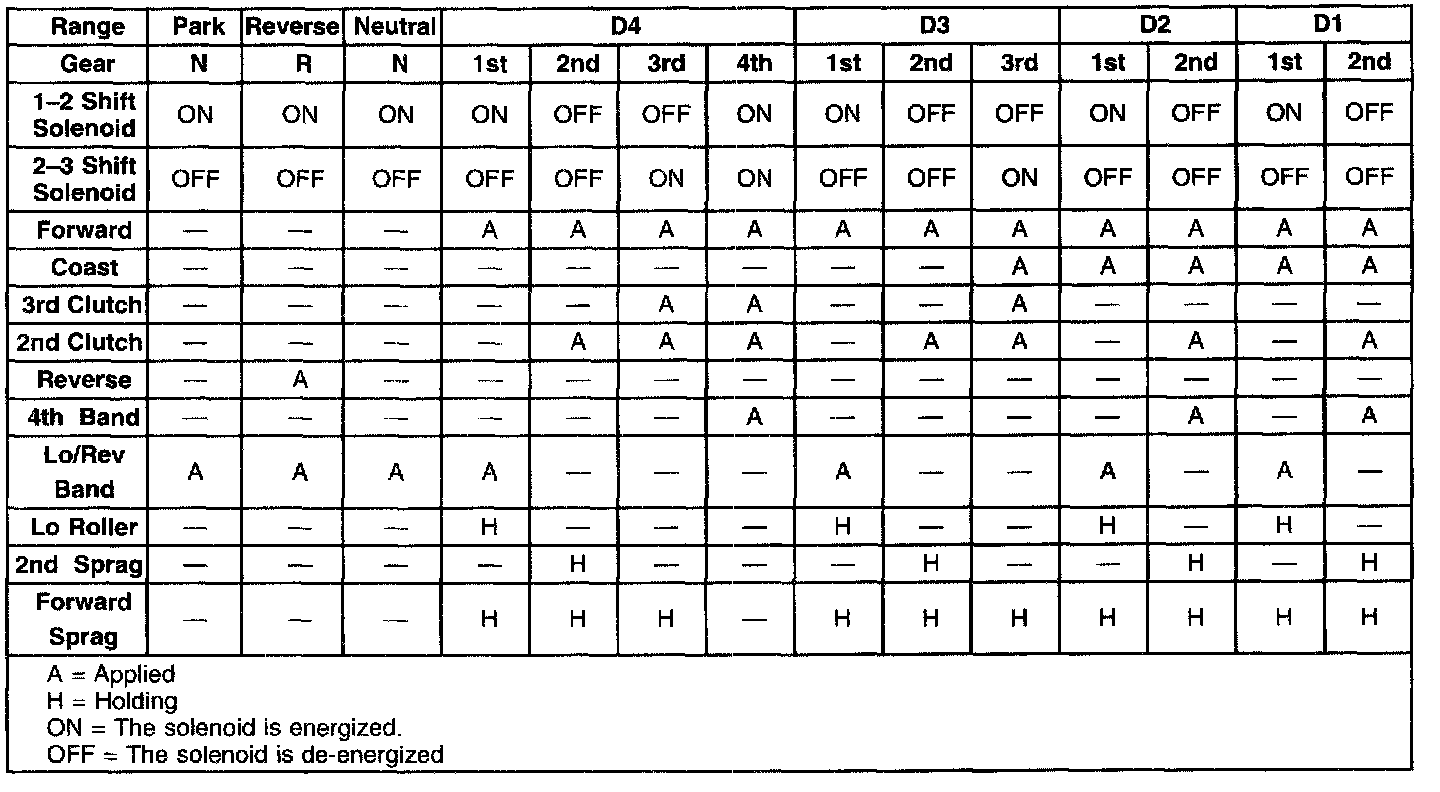

Range Reference

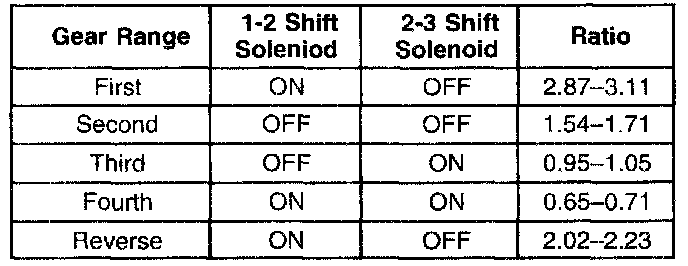

Shift Solenoid Valve State and Gear Ratio

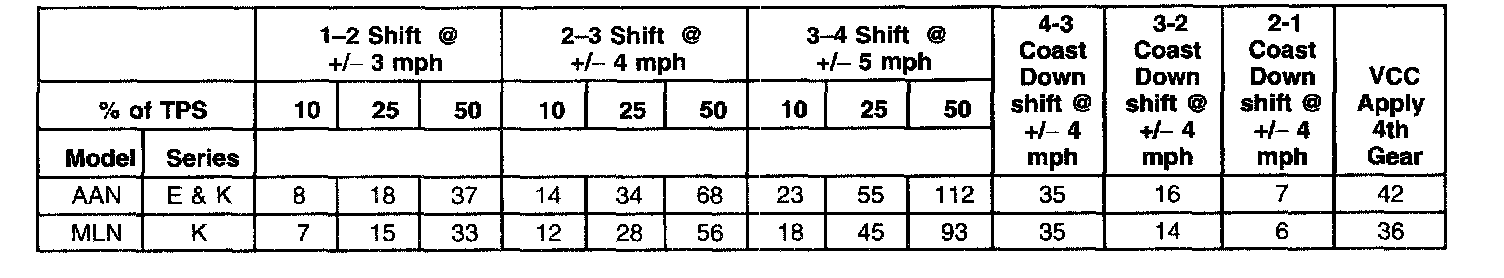

Shift Speed

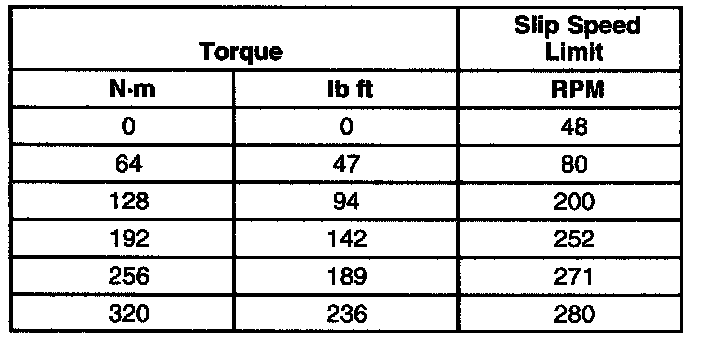

Torque Converter Clutch (TCC) Slip Speed





Transmission Fluid Pressure (TFP) Manual





Line Pressure





Transmission Internal Mode Switch Logic





Component Resistance

Flex Plate Tightening
First Pass
^ Tighten the flywheel mounting bolts to 15 Nm (11 ft. lbs.).
Final Pass
^ Tighten the flywheel mounting bolts an additional 50 degrees using the J 36660.
