Wiper System (W/CE1)

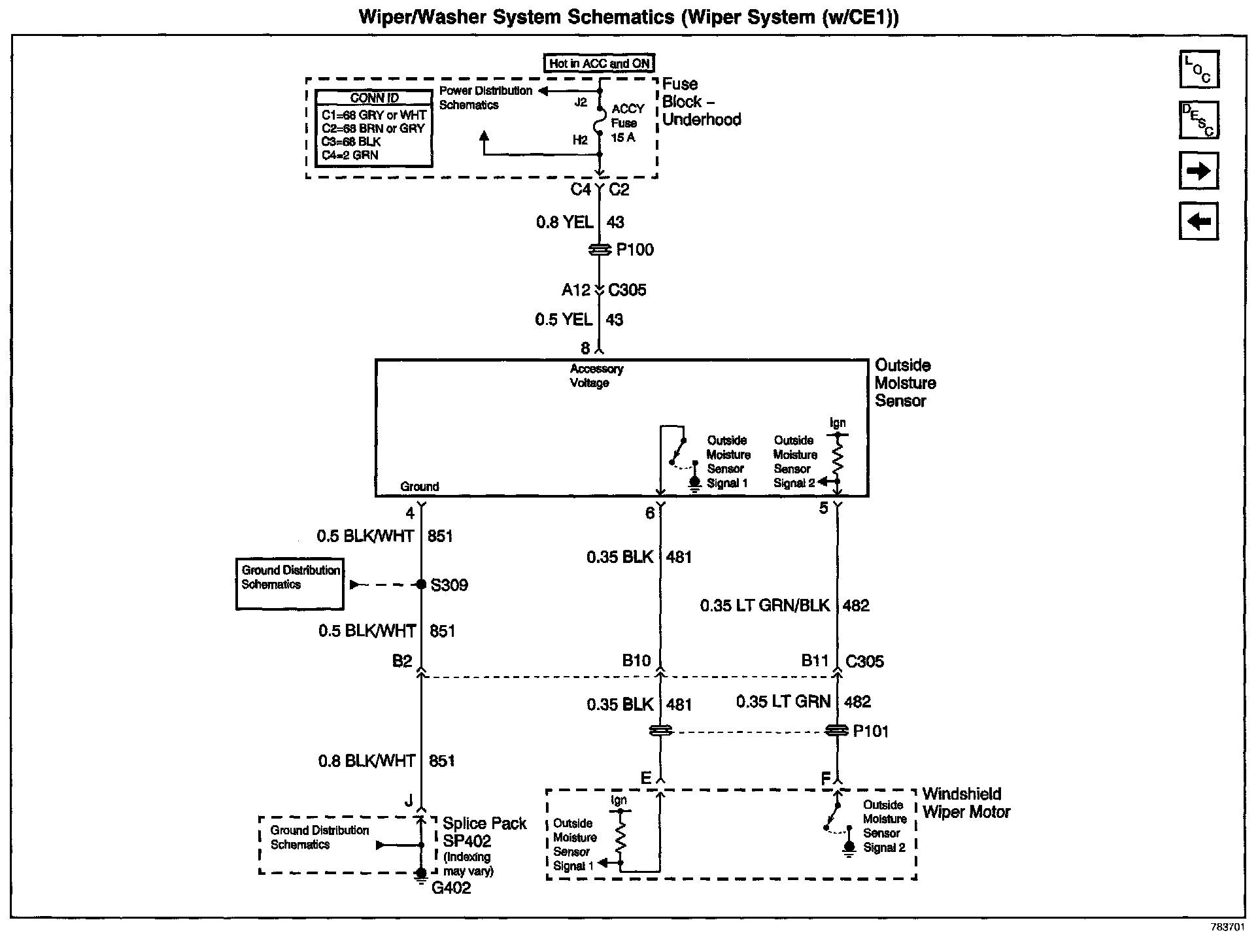

Wiper/Washer System Schematics: Wiper System (W/CE1):





For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID". RPO Codes
