Receiver Dryer: Service and Repair
DESICCANT BAG REPLACEMENTTOOLS REQUIRED
J 39400-A Halogen Leak Detector
REMOVAL PROCEDURE
1. Recover the refrigerant.
2. Remove the front air deflector.

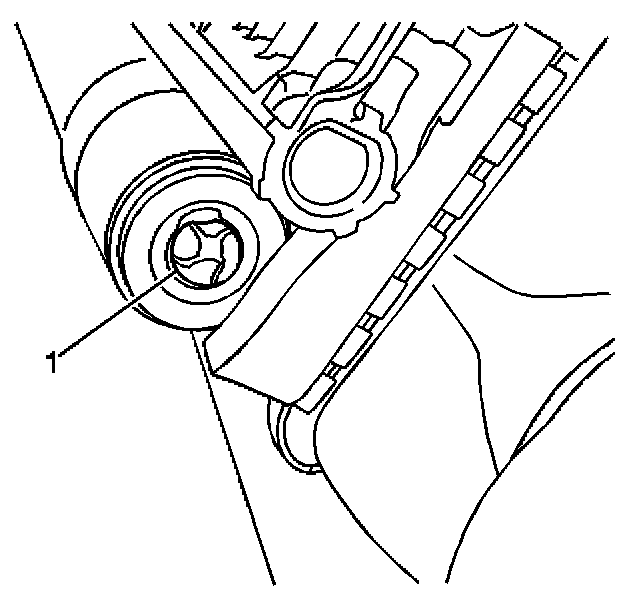

3. Remove the receiver dryer bottom plug (1).
4. Remove the filter (2).

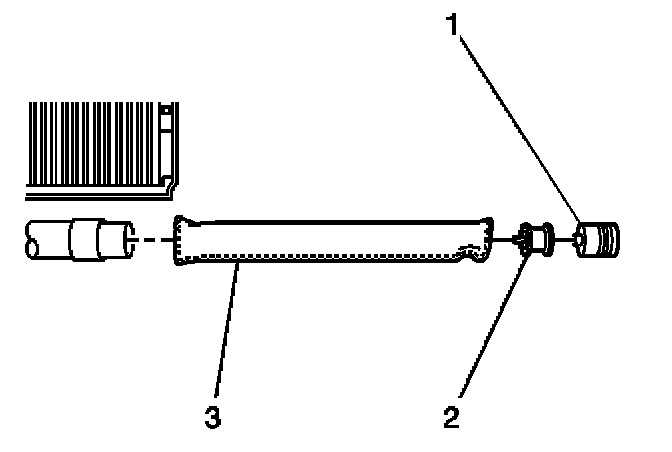

5. Remove the desiccant bag (3).
INSTALLATION PROCEDURE
1. Install the desiccant bag (3).
2. Install the filter (2).
3. Lubricate the O-rings on the plug with refrigerant oil before installing.
4. Install the bottom plug (1).
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the plug to 12.5 N.m (111 lb in).
5. Install the front air deflector.
6. Lower the vehicle.
7. Add the proper amount of oil.
8. Evacuate and recharge the refrigerant.
9. Leak test the fittings of the component with J 39400-A.
