Blower Motor Resistor: Service and Repair

BLOWER MOTOR RESISTOR ASSEMBLY REPLACEMENT - AUXILIARY

REMOVAL PROCEDURE




1. Remove the console trim plate.

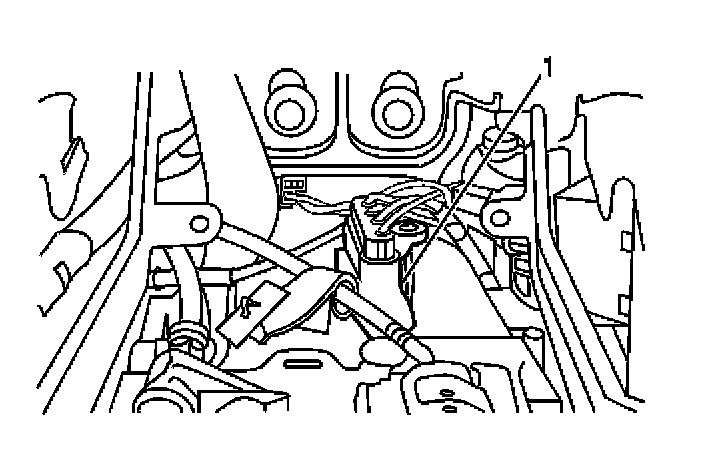

2. Disconnect the electrical connector from the blower resistor (1).
3. Remove the rear blower motor resistor fasteners.
4. Remove the blower resistor.

INSTALLATION PROCEDURE




1. Install the blower resistor.
2. Install the rear blower motor resistor fasteners.

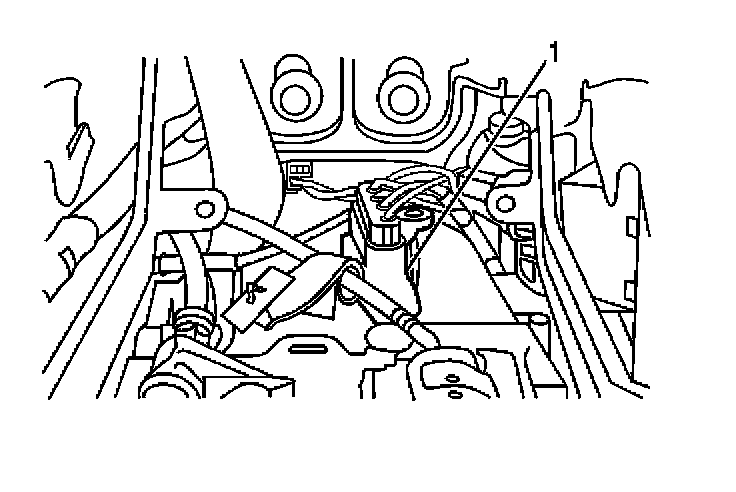

3. Connect the electrical connector to the blower resistor (1).
4. Install the console trim plate.
