Service Port HVAC: Service and Repair
SERVICE PORTS REPLACEMENTTOOLS REQUIRED
J 39400-A Halogen Leak Detector
REMOVAL PROCEDURE
1. Recover the refrigerant from the system.

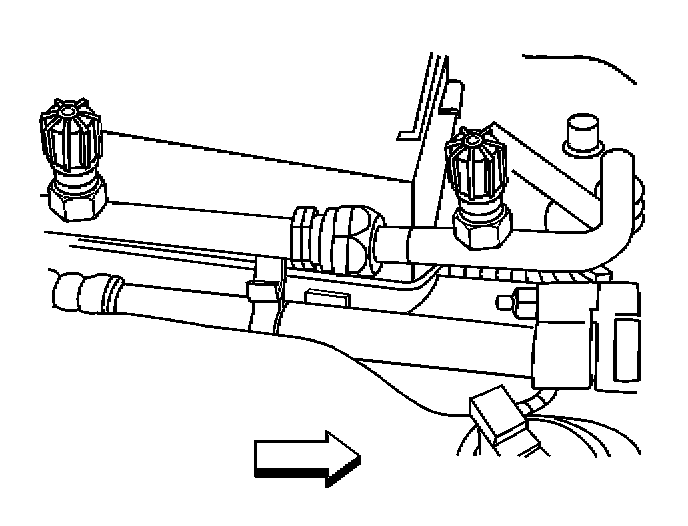

2. Remove the service fitting from the line.
INSTALLATION PROCEDURE
1. Lubricate the O-ring with 525 refrigerant oil.

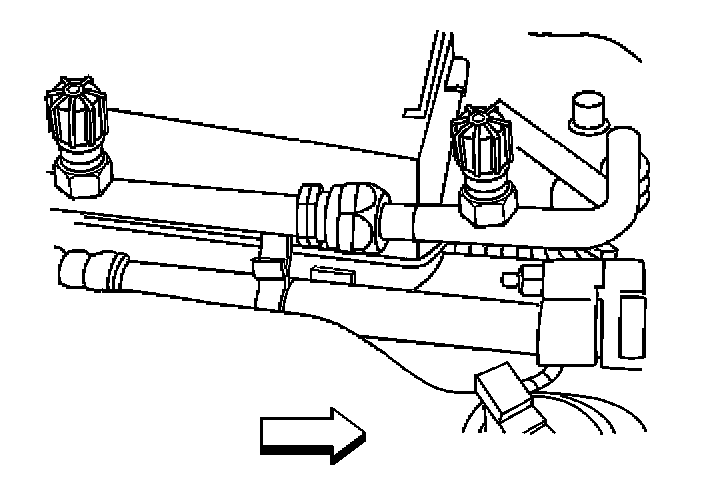

2. Install the service fitting to the line.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the service fitting to 12 N.m (9 lb ft).
3. Recharge the refrigerant system.
4. Leak test the fittings of the repaired or reinstalled component using J 39400-A.
