Battery Tray Replacement

BATTERY TRAY REPLACEMENT

REMOVAL PROCEDURE

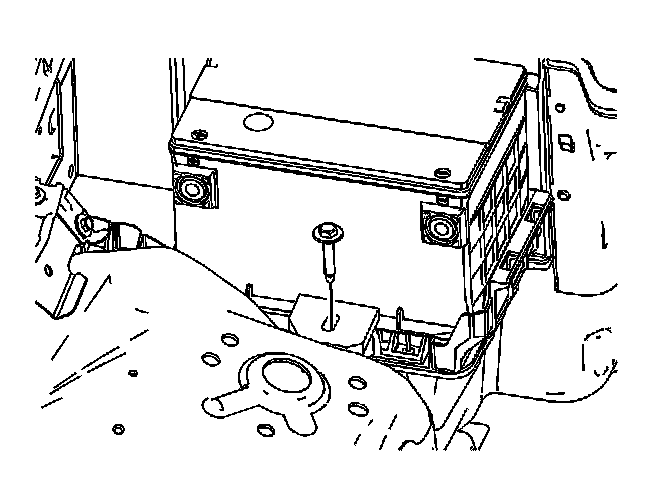

1. Remove the battery from the vehicle.
2. Remove the right side air inlet grille panel.

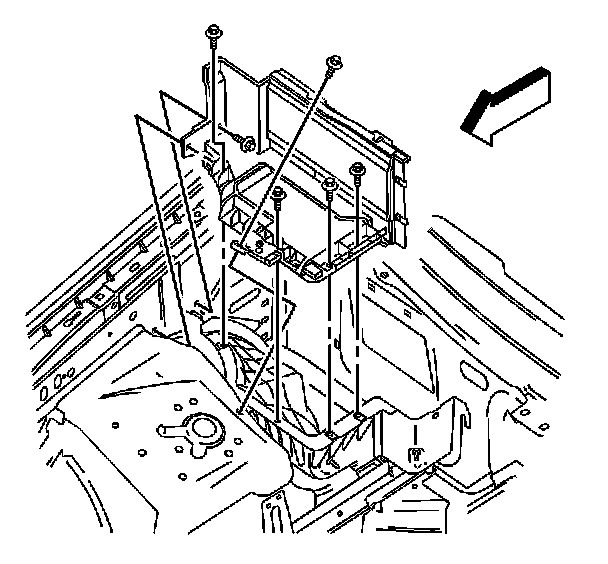

3. Remove the bolts from the battery tray.
4. Remove the battery tray from the vehicle.

INSTALLATION PROCEDURE




1. Install the battery tray into the vehicle.

NOTE: Refer to Fastener Notice in Service Precautions.

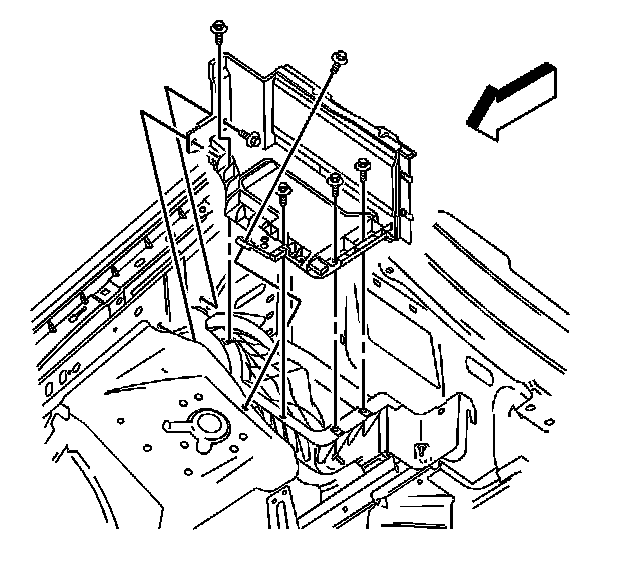

2. Install the battery tray bolts.

Tighten
Tighten the battery tray bolts to 6 N.m (53 lb in).




3. Install the right side air inlet grille panel.

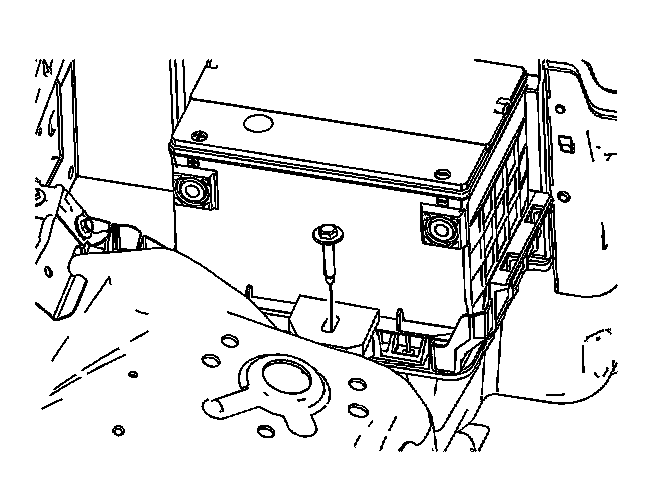

4. Install the battery into the vehicle.
