Manual Transmission/Transaxle: Locations

Component Locator

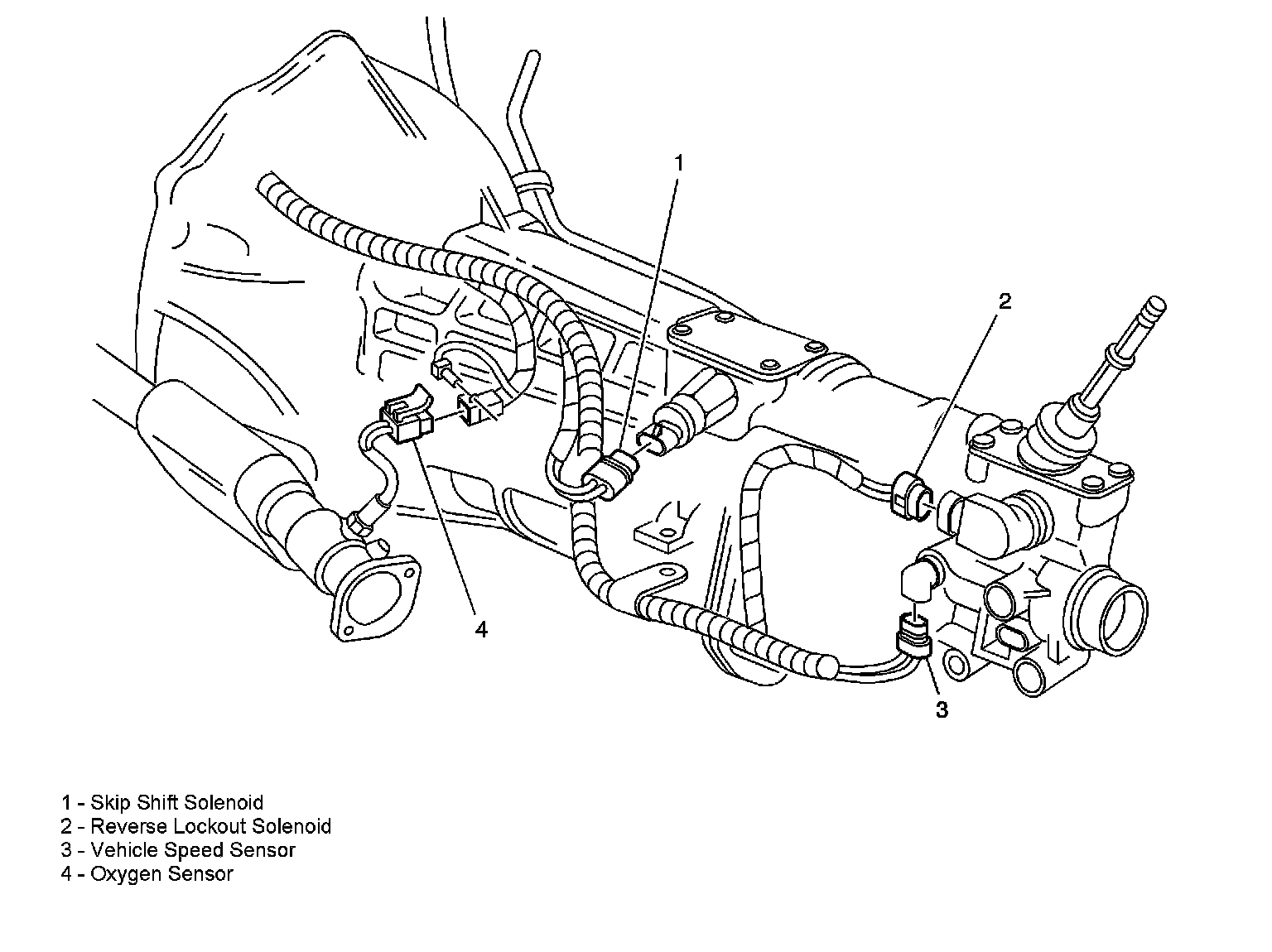

Manual Transmission Component Views

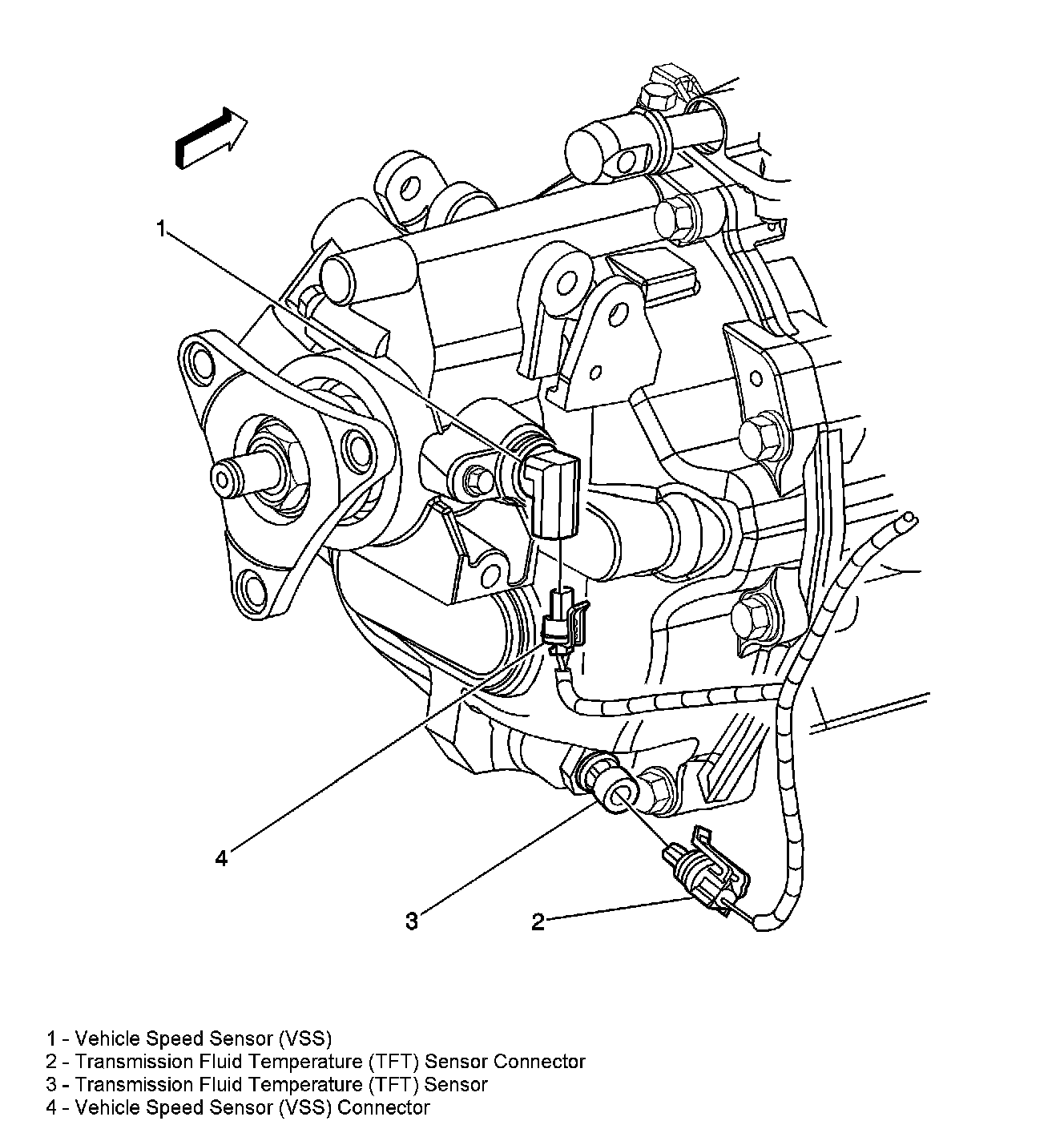

Manual Transmission Electrical Components

RR of Transmission - Tremec 6-Speed (M12/MN6)
