Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
2004
>>
DeVille V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
System Specifications
>>
Thread Repair Specifications
>>
Left Cylinder Head Camshaft Cover Face
Left Cylinder Head Camshaft Cover Face

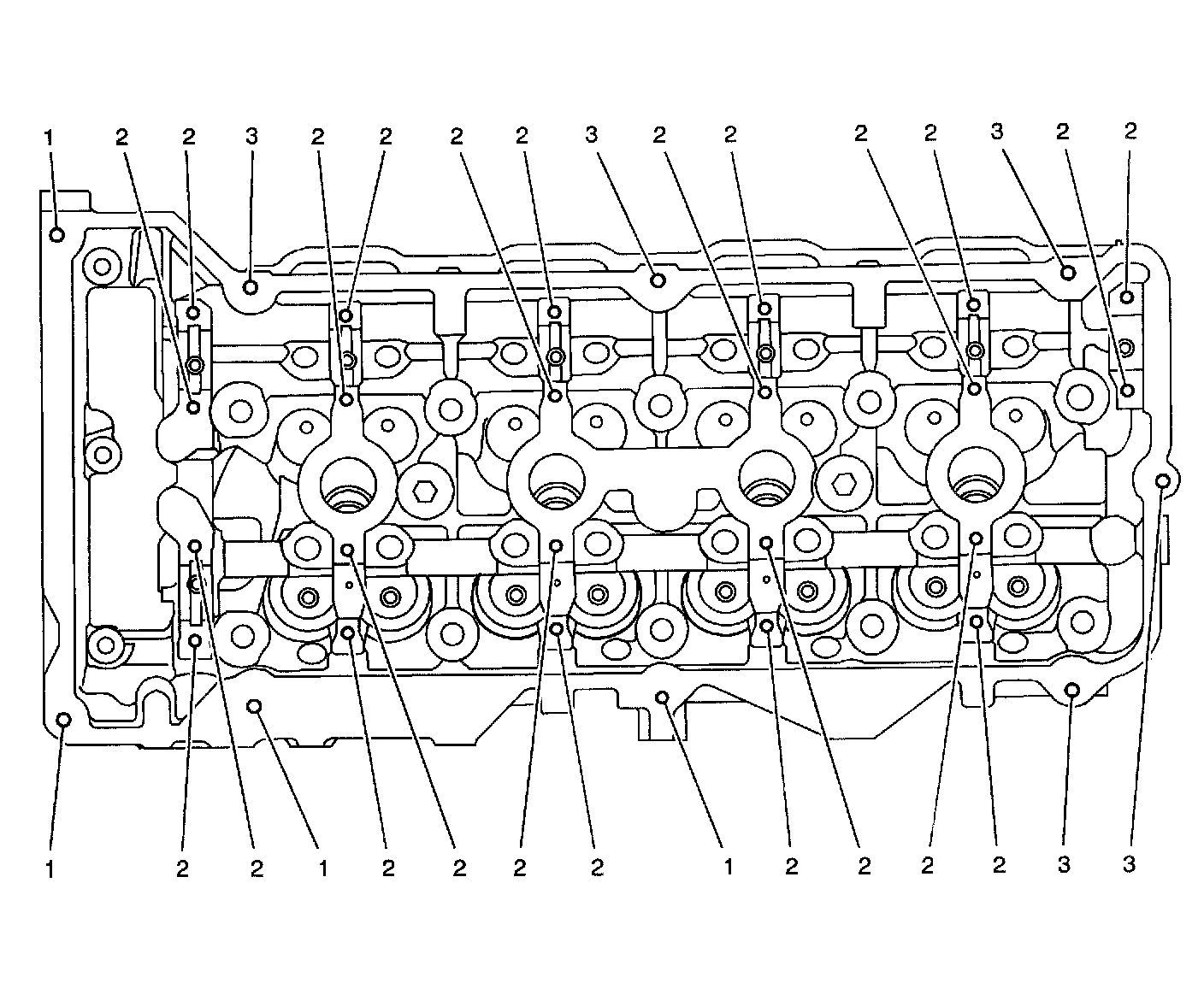

Left Cylinder Head Camshaft Cover Face Part 1:

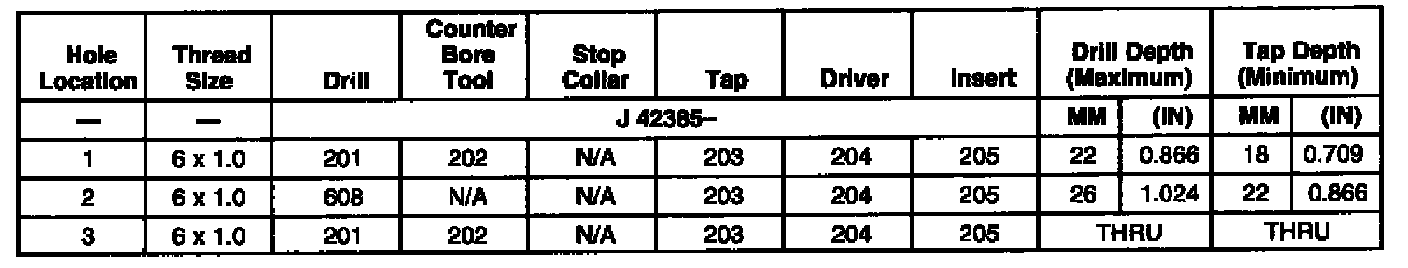

Left Cylinder Head Camshaft Cover Face Part 2:
