Connector Views
>>
Canister Purge Solenoid
Canister Purge Solenoid

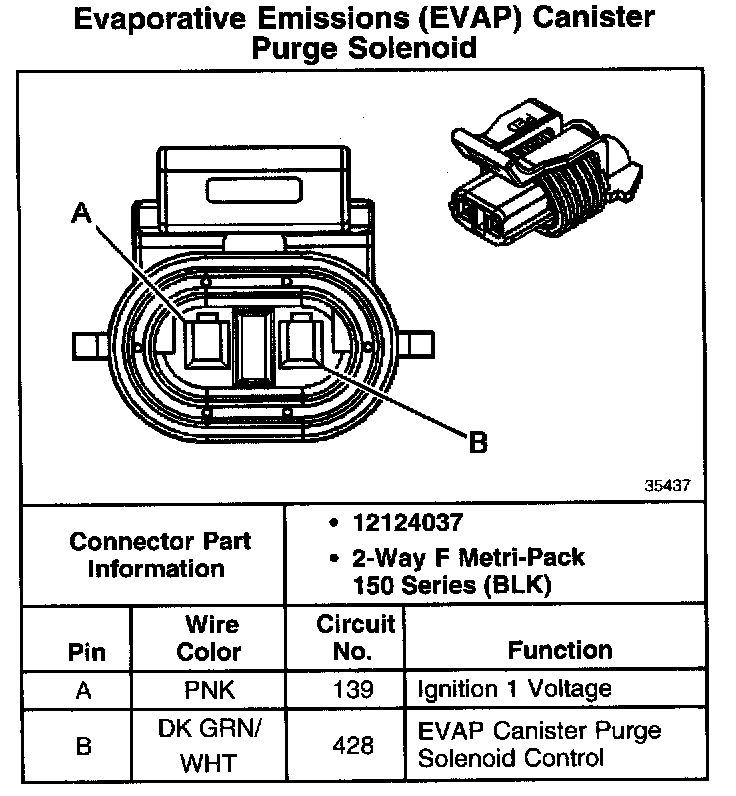

Evaporative Emissions (EVAP) Canister Purge Solenoid:

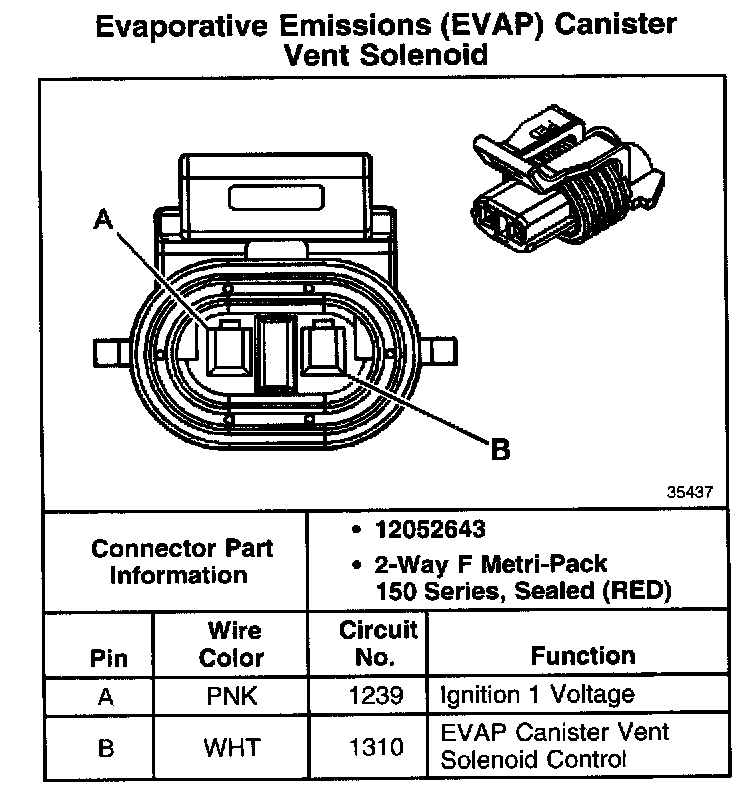

Evaporative Emissions (EVAP) Canister Vent Solenoid:
