Steering Column

Steering Wheel and Column Connector End Views

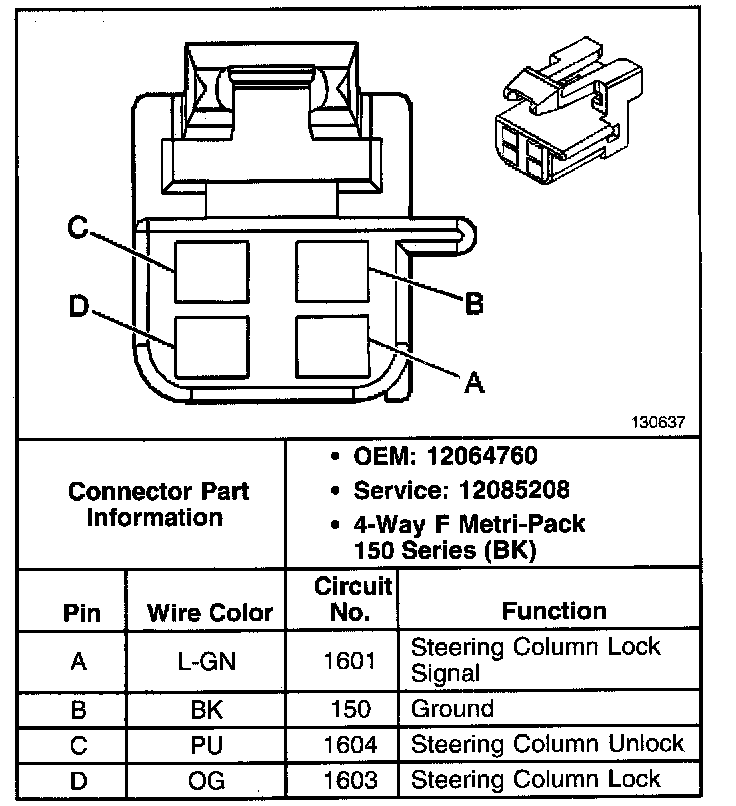

Steering Column Lock Control Module C1

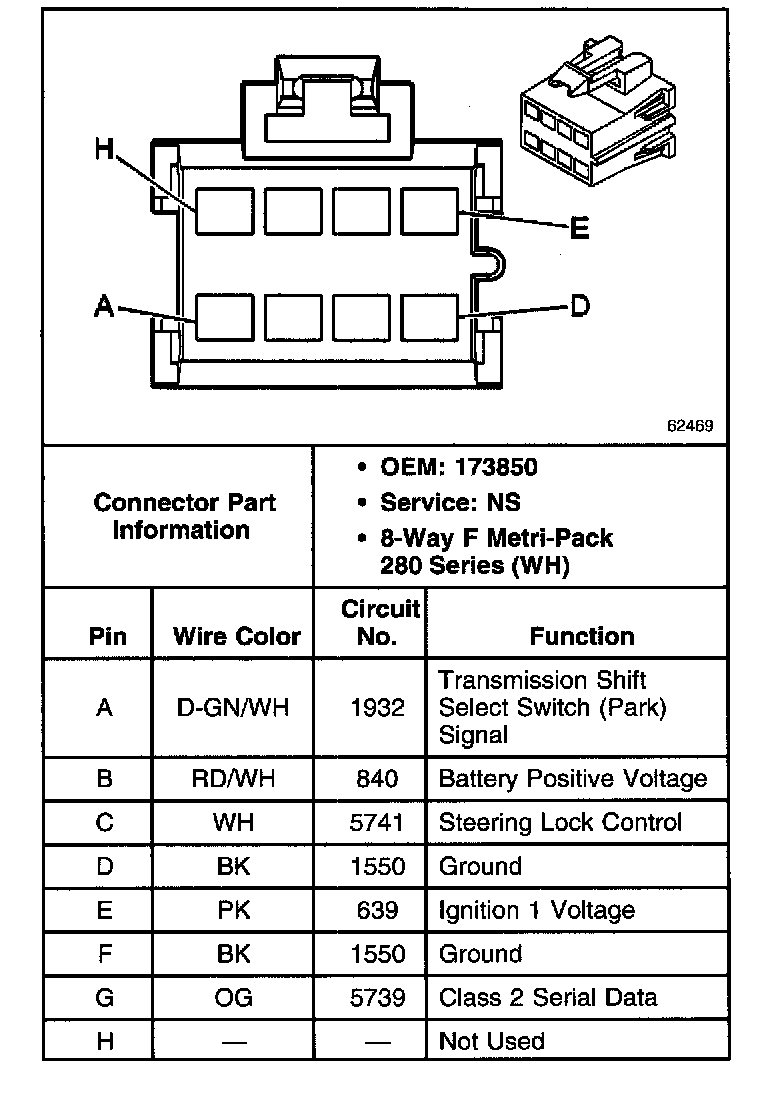

Steering Column Lock Control Module C2

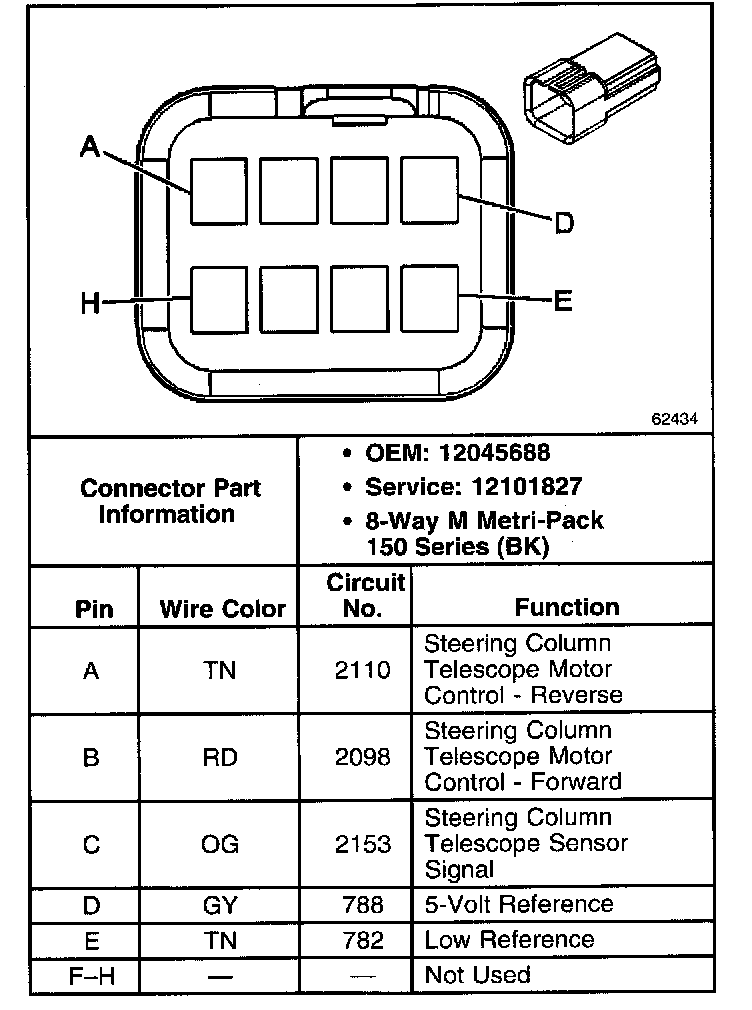

Telescoping Drive Motor

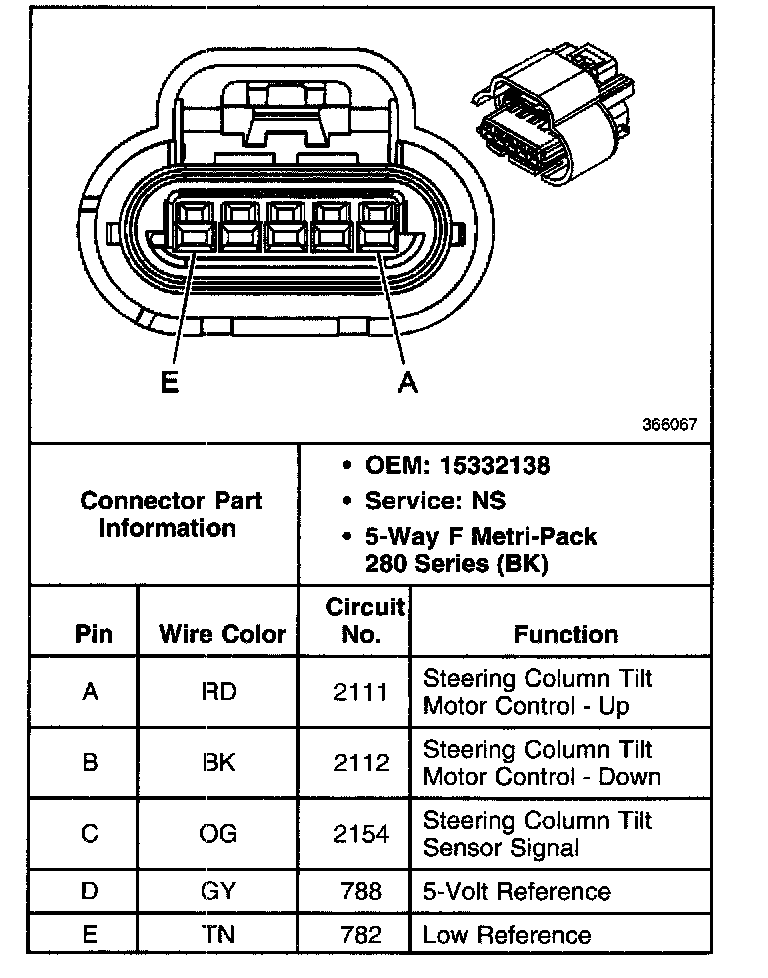

Tilt Actuator

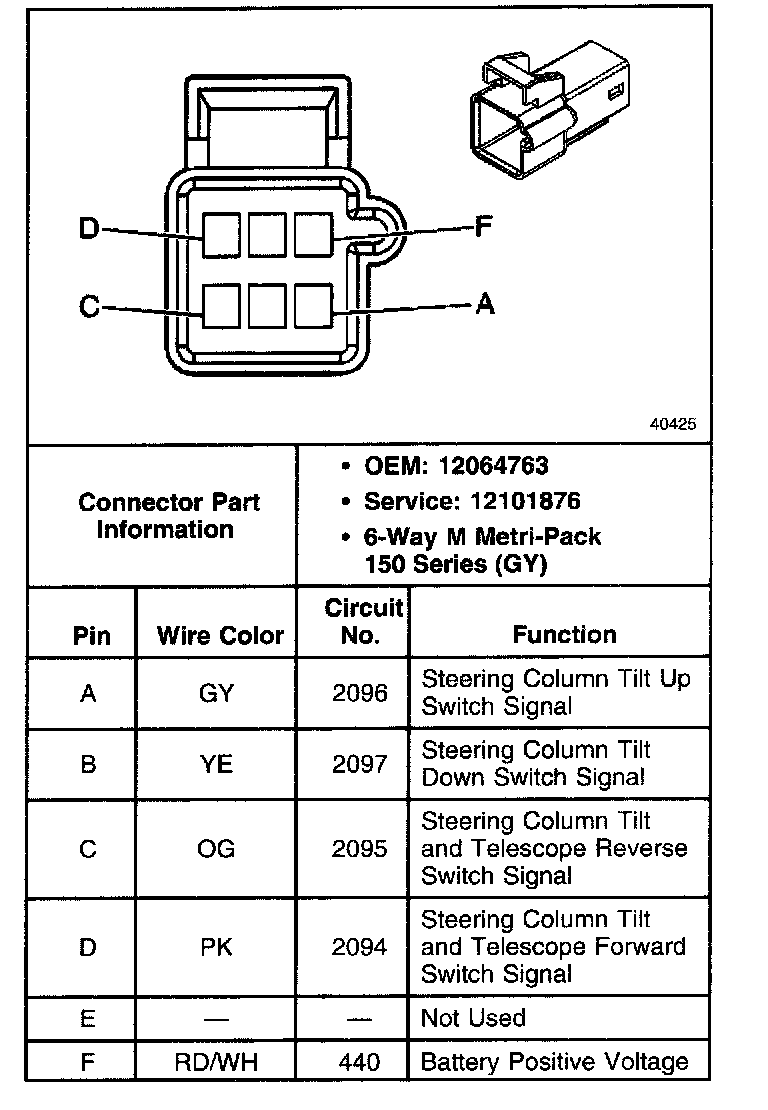

Tilt/Telescope Switch
