System Diagram

Steering Controls Connector End Views

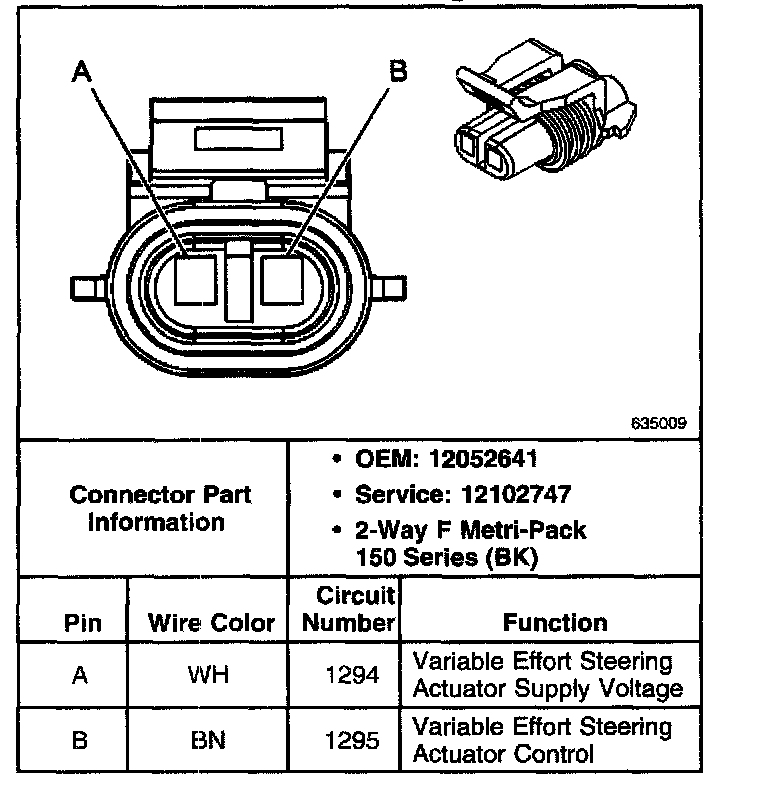

Variable Effort Steering Actuator

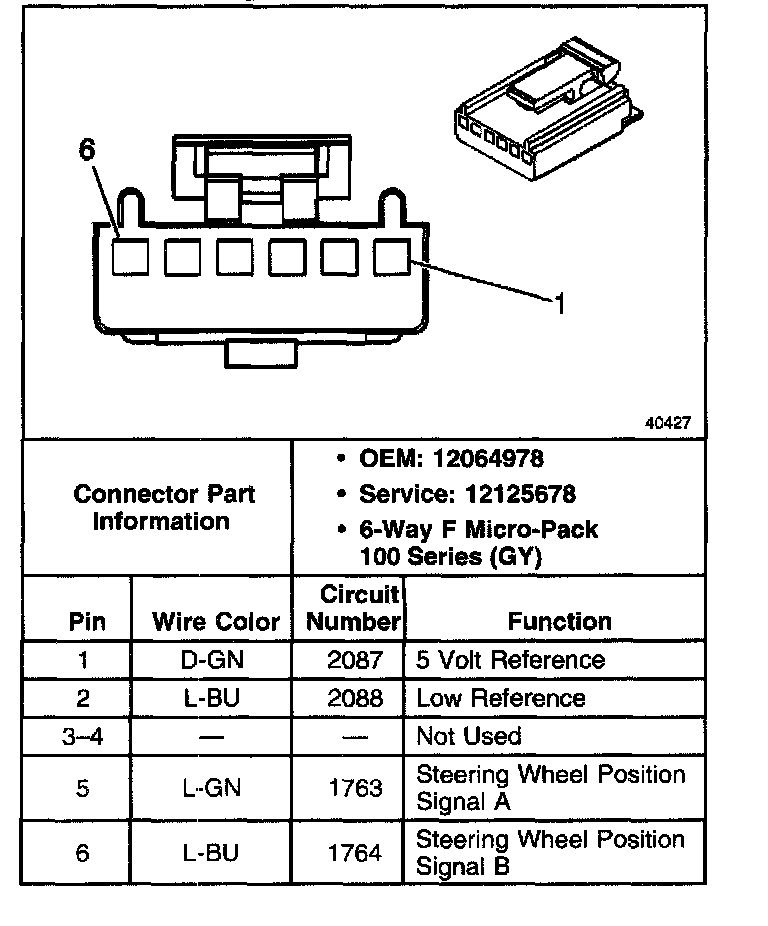

Steering Wheel Position Sensor
