Fuel Filter: Locations

FUEL FILTER


The fuel filter is contained in the fuel sender assembly inside the left fuel tank.

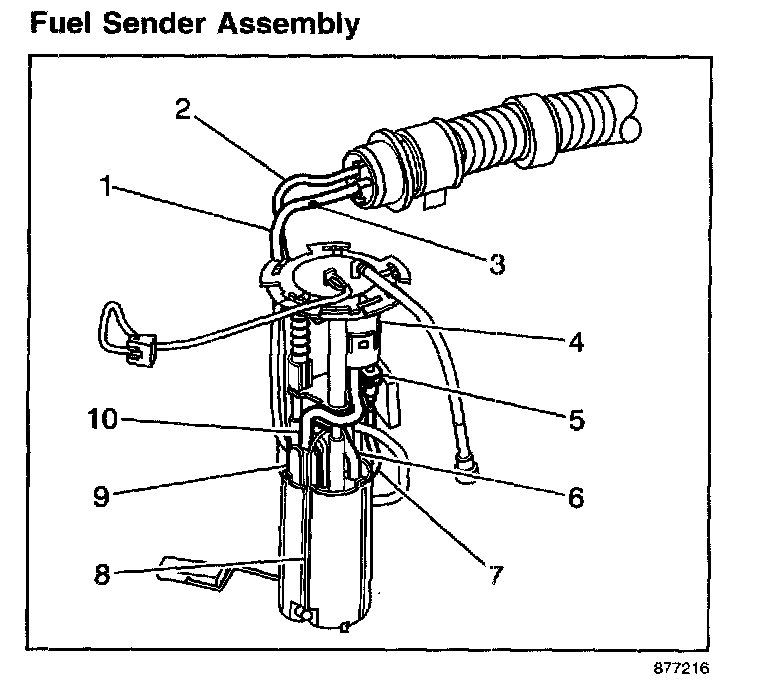

A fuel sender assembly is located inside each fuel tank. The fuel sender assembly attaches to the top of each fuel tank. The left fuel sender assembly consists of the following major components:
- The fuel level sensor
- The fuel pump and reservoir assembly
- The fuel pump strainer
- The fuel filter (4)
- The primary fuel pressure regulator (9)
