Electrical Diagrams
Schematic and Routing Diagrams
Automatic Transmission Controls Schematics (DLC, Ground, MIL and Power)

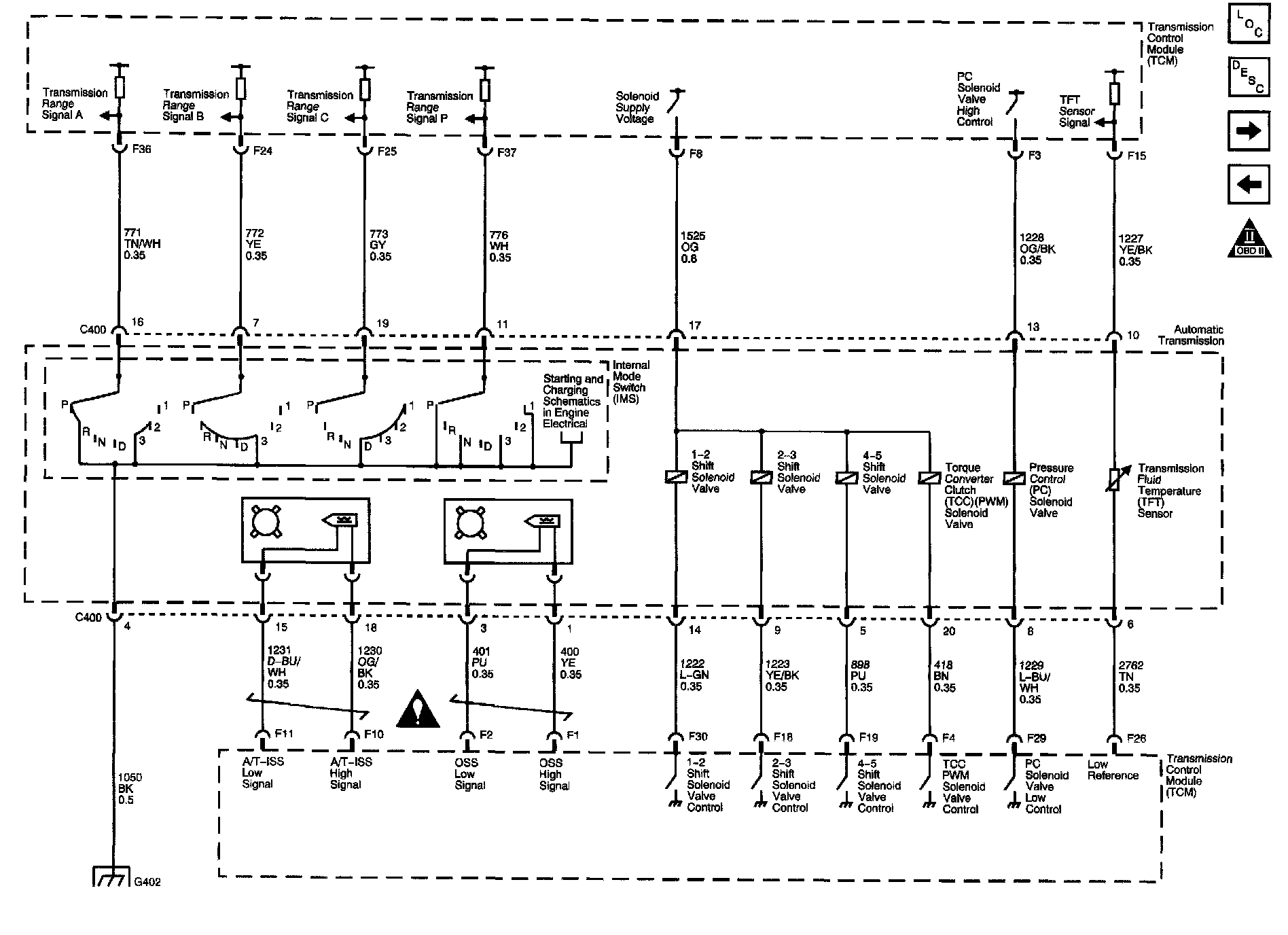

Automatic Transmission Controls Schematics (IMS, ISS, Solenoids, TFT, and VSS)
Automatic Transmission Controls Schematics (Shift Lever)
