Oil Temperature Sensor/Switch, Engine

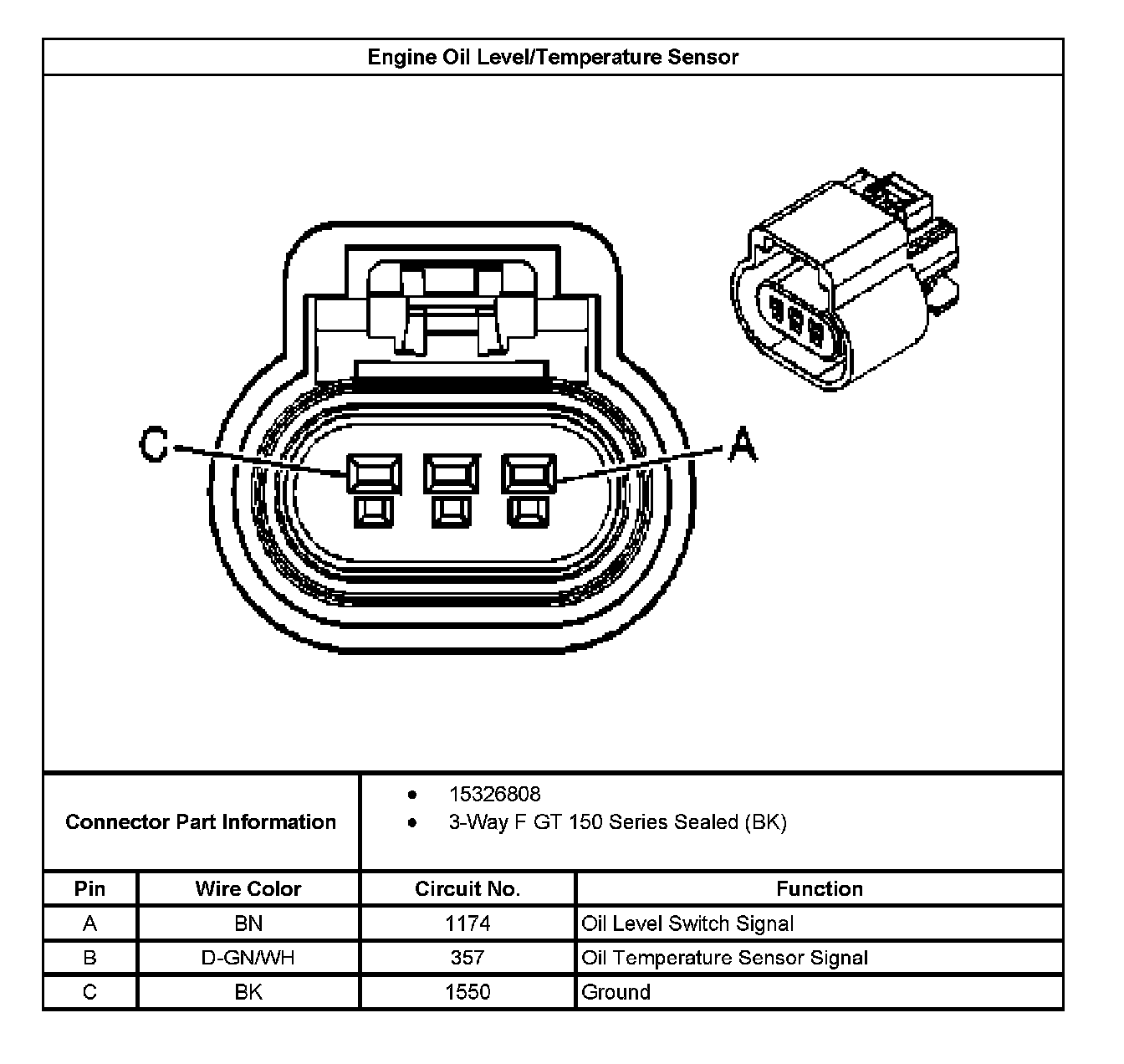

Engine Oil Level/Temperature Sensor:



Engine Oil Level/Temperature Sensor:
