Cadillac
>>
2005
>>
CTS V8-5.7L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Steering Column
Steering Column

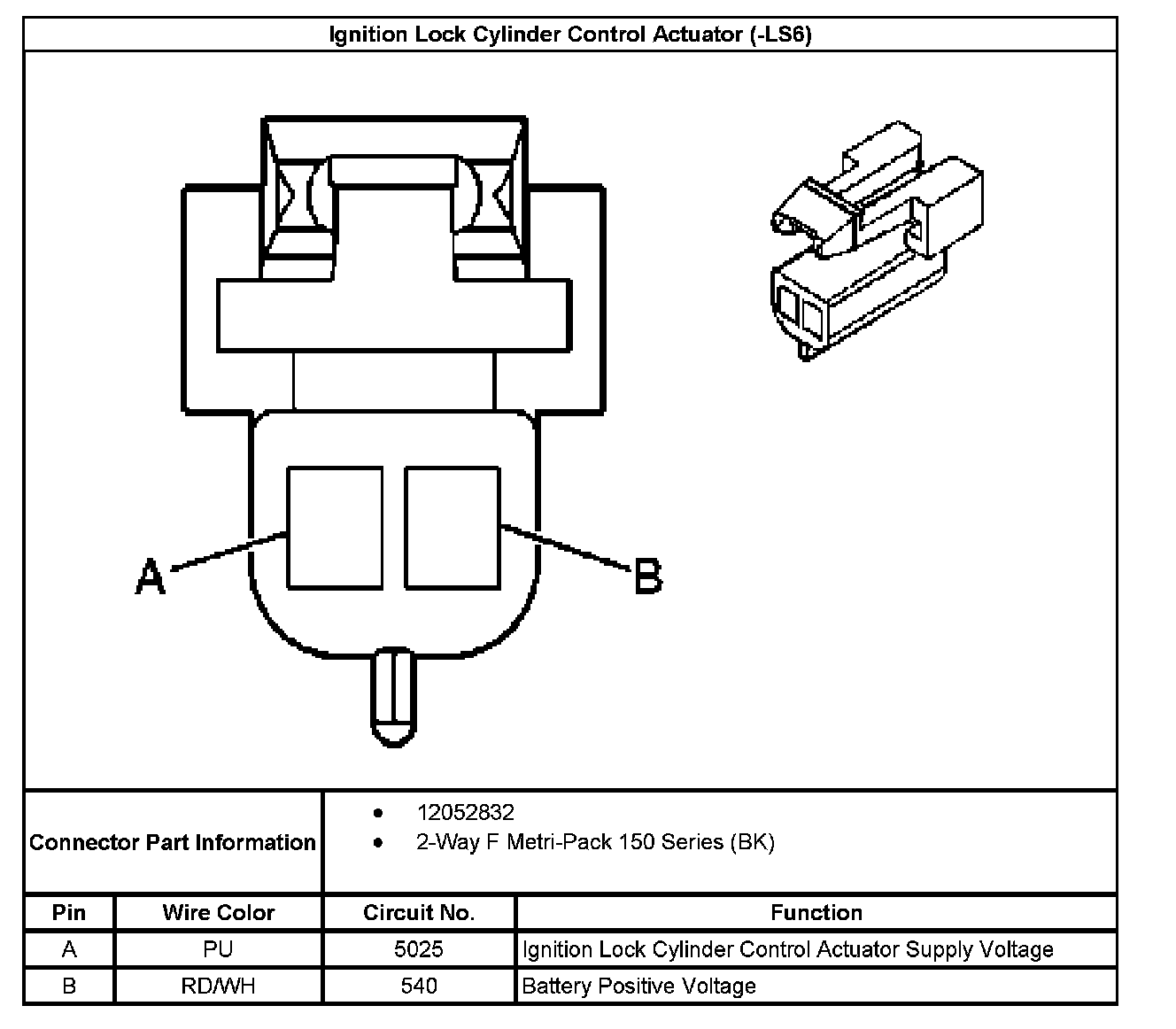

Ignition Lock Cylinder Control Actuator (-LS6):
