Sunroof / Moonroof Module

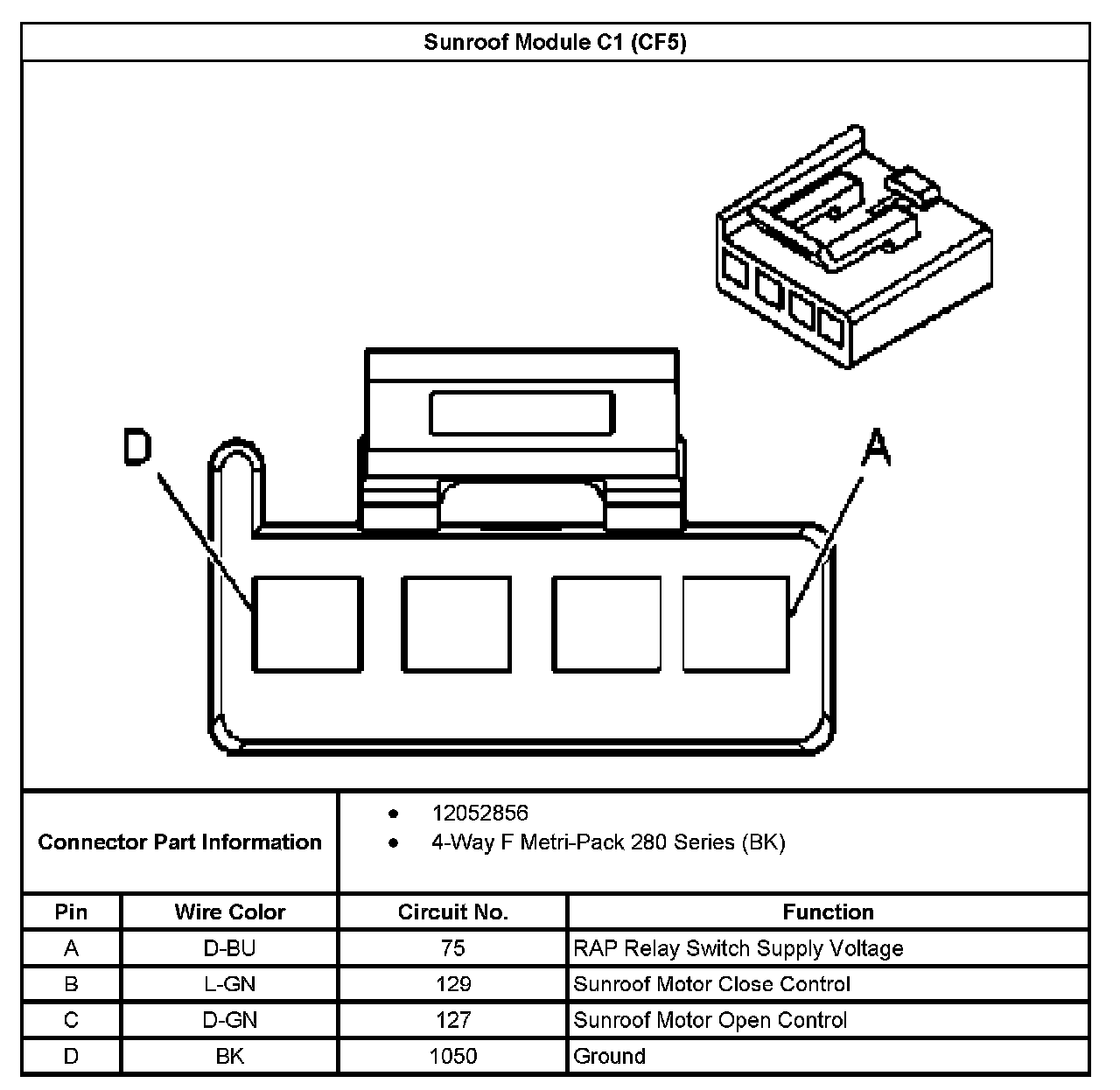

Sunroof Module C1 (With RPO Code CF5):

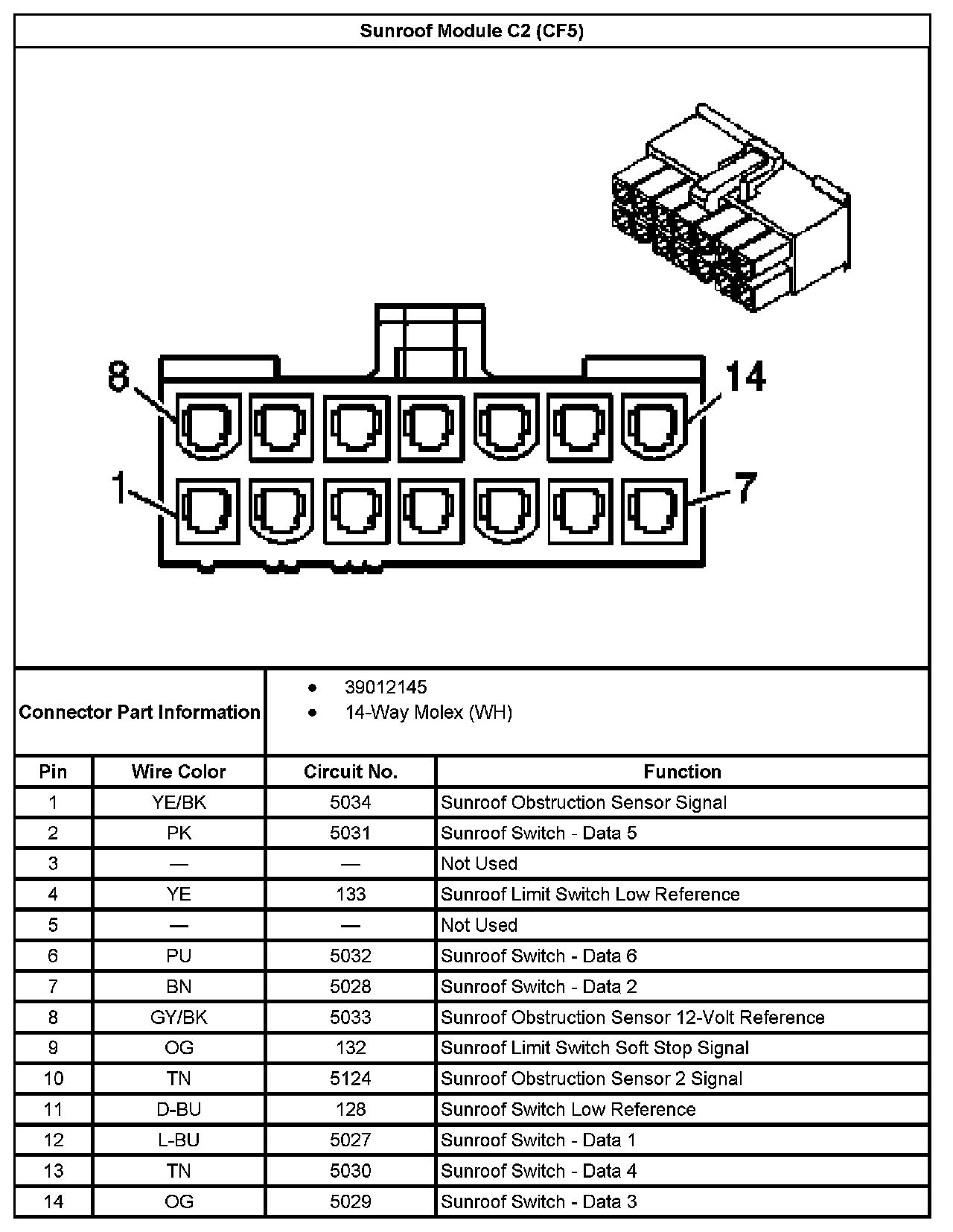

Sunroof Module C2 (With RPO Code CF5):
