Home
>>
Cadillac
>>
2005
>>
CTS V8-5.7L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Battery and Fuse Blocks Views

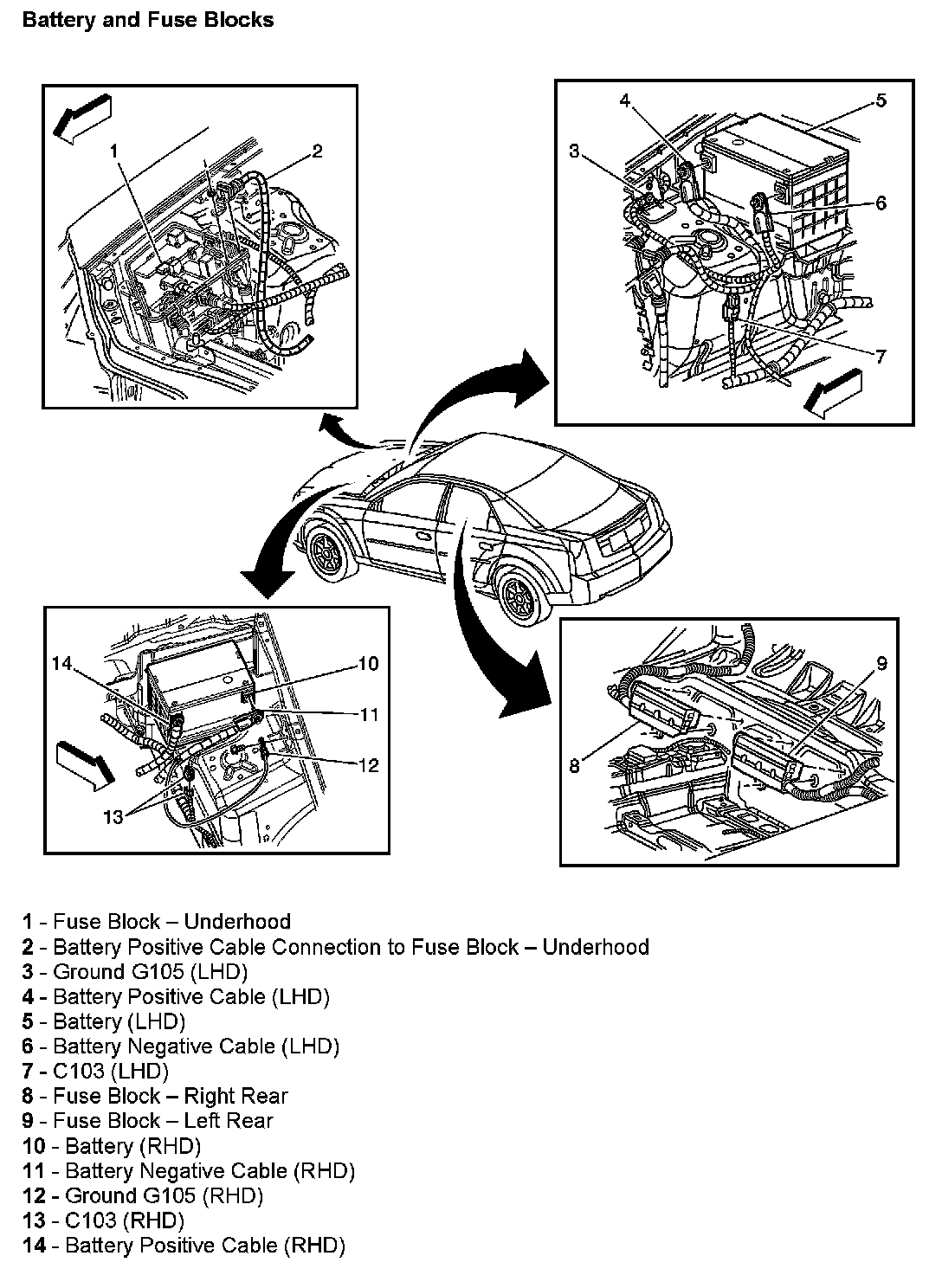

Battery and Fuse Blocks Views
Battery and Fuse Blocks:
