Home >> Cadillac >> 2005 >> CTS V8-5.7L VIN S >> Repair and Diagnosis >> Locations >> Harness Locations >> I/P Views

I/P Views

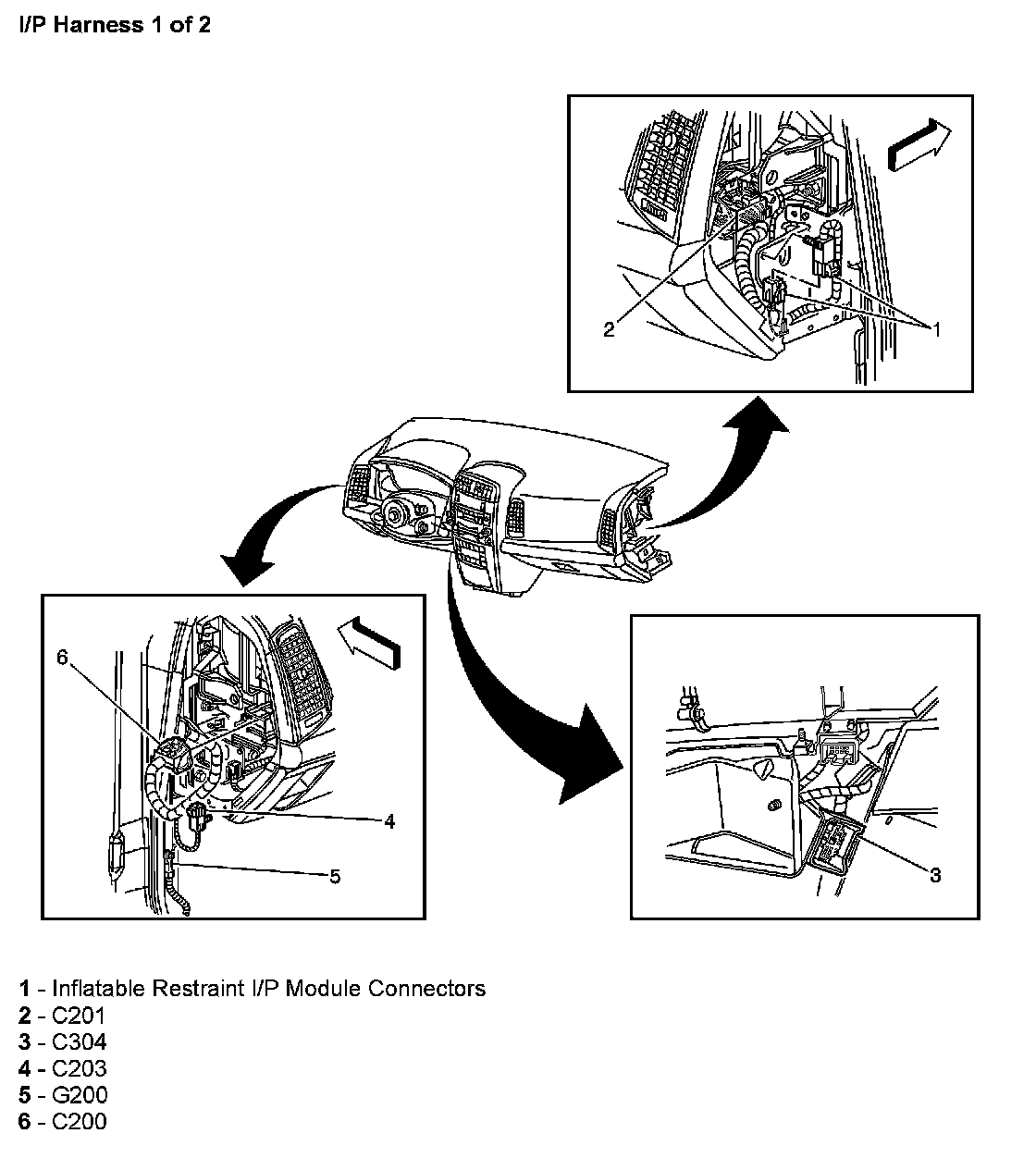

I/P Harness Part 1:

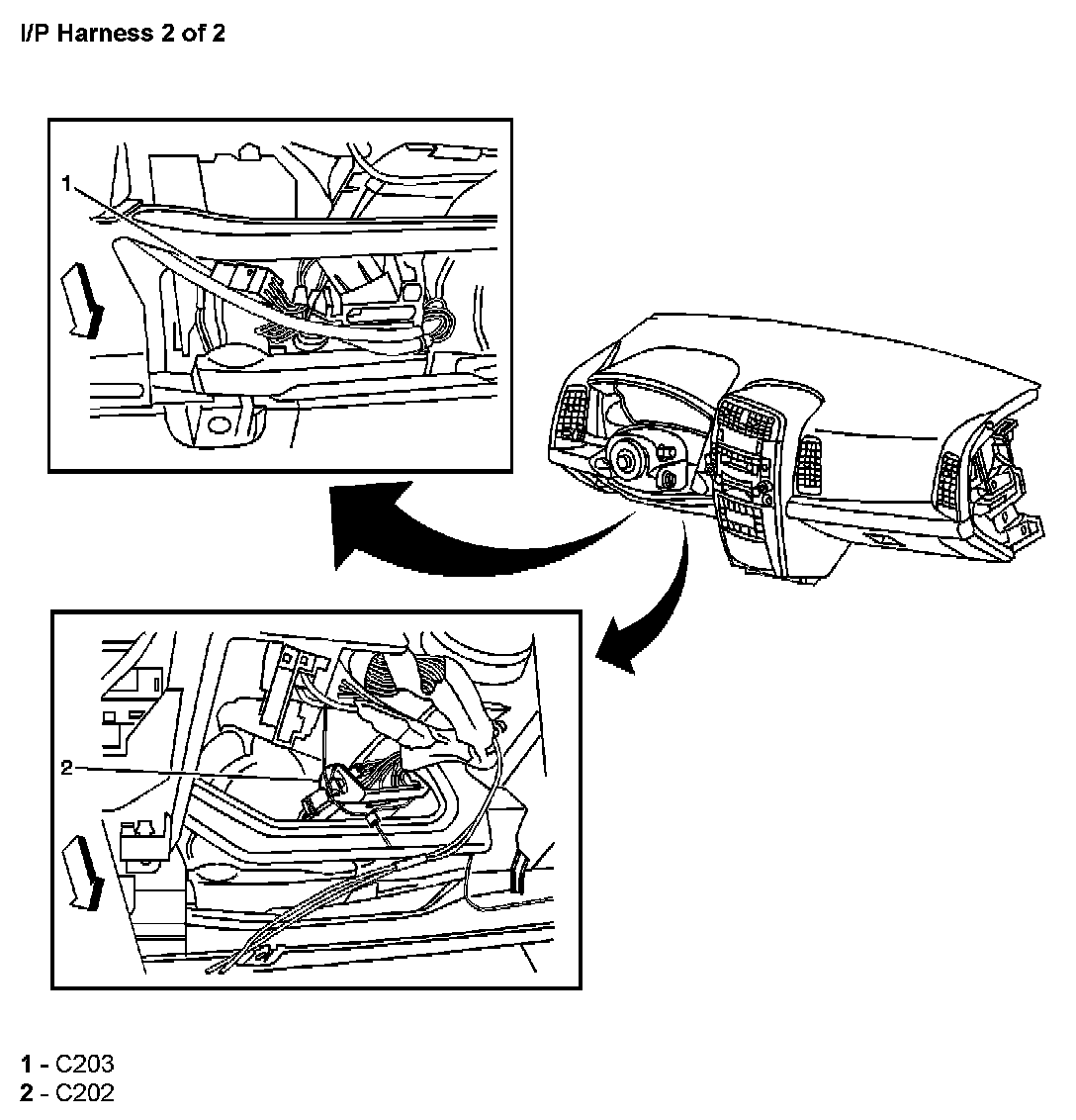

I/P Harness Part 2:
