Passenger Compartment Views

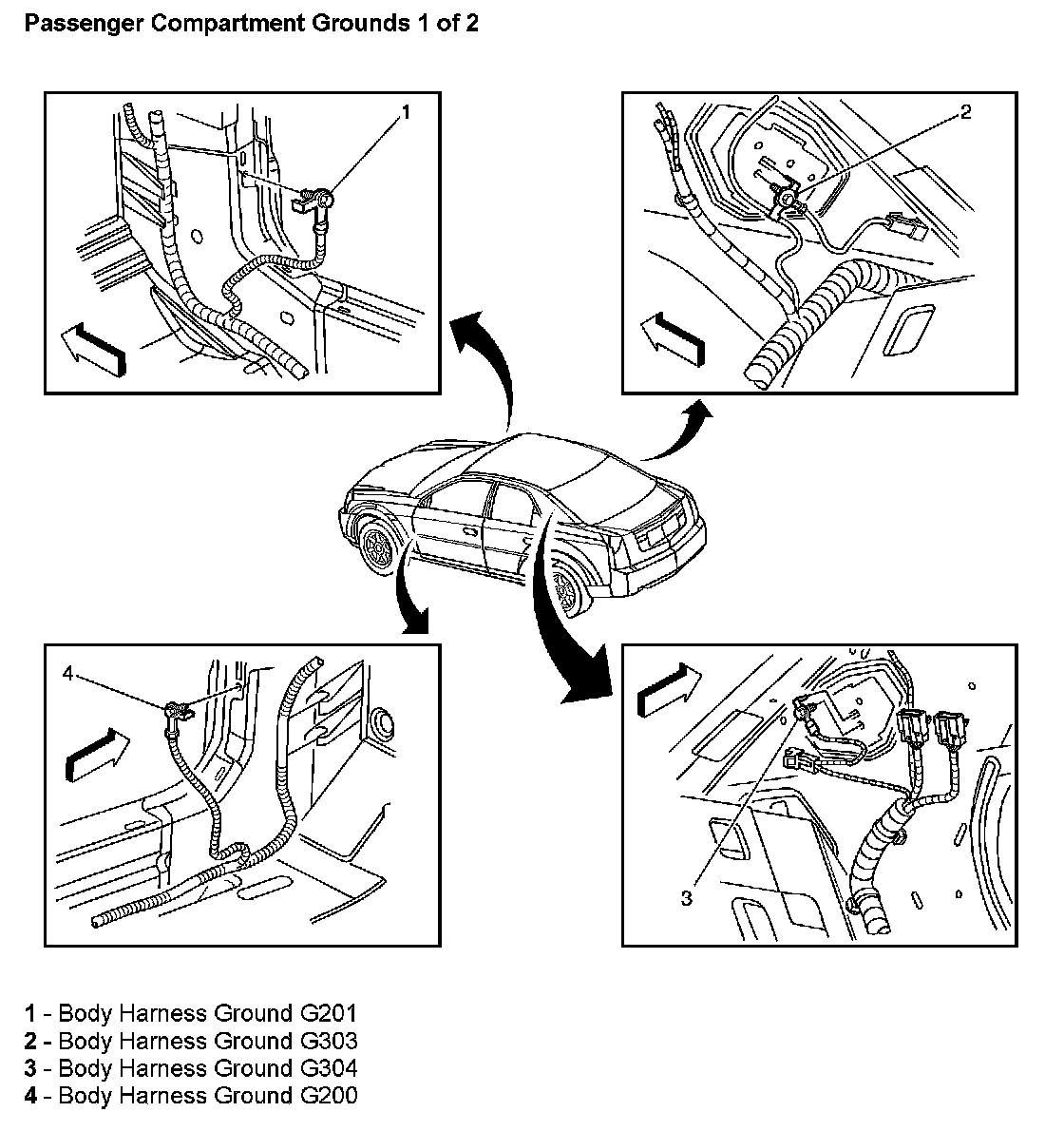

Passenger Compartment Grounds Part 1:

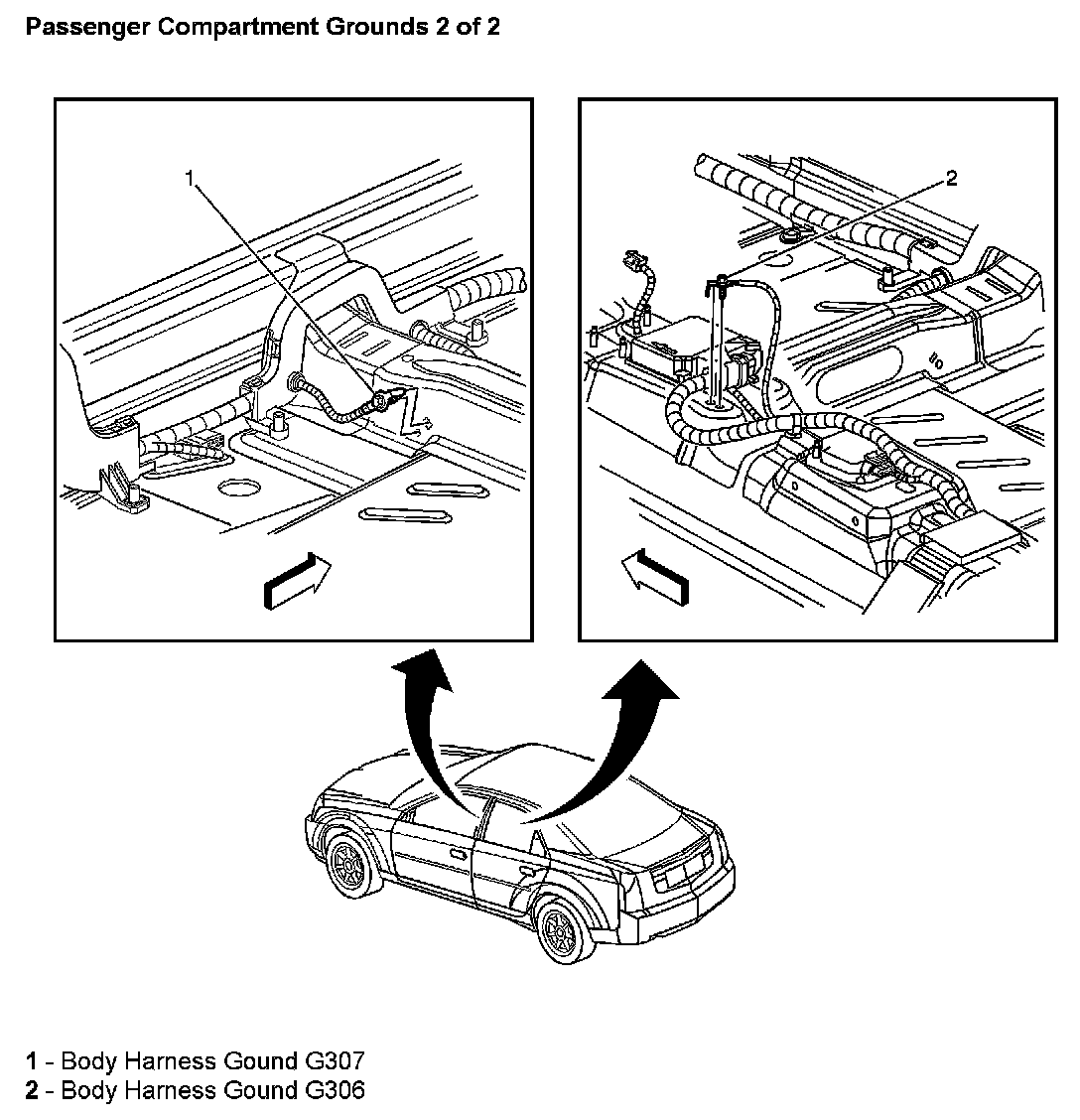

Passenger Compartment Grounds Part 2:
