Remote Control, Audio - Stereo

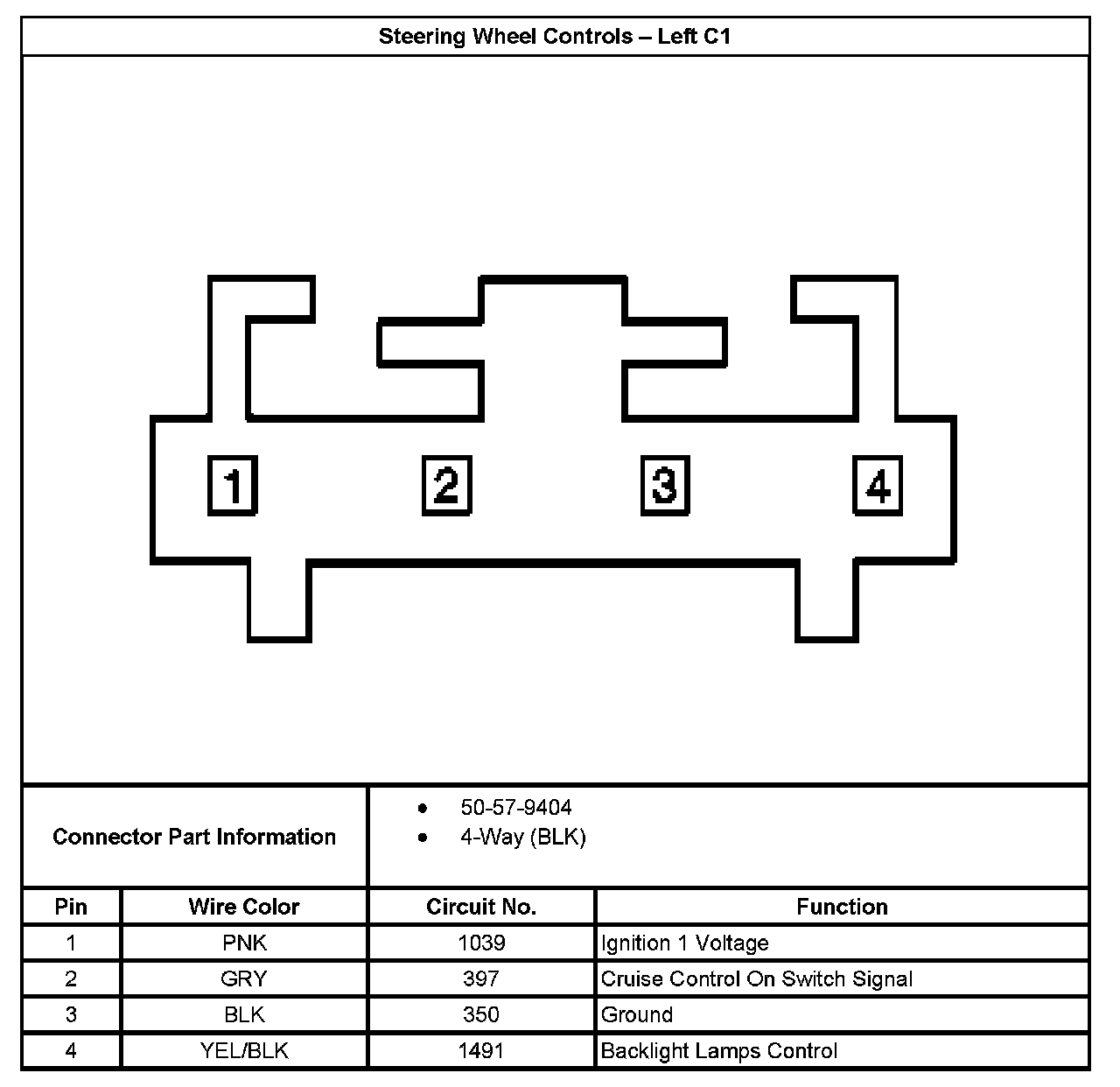

Steering Wheel Controls - Left C1:

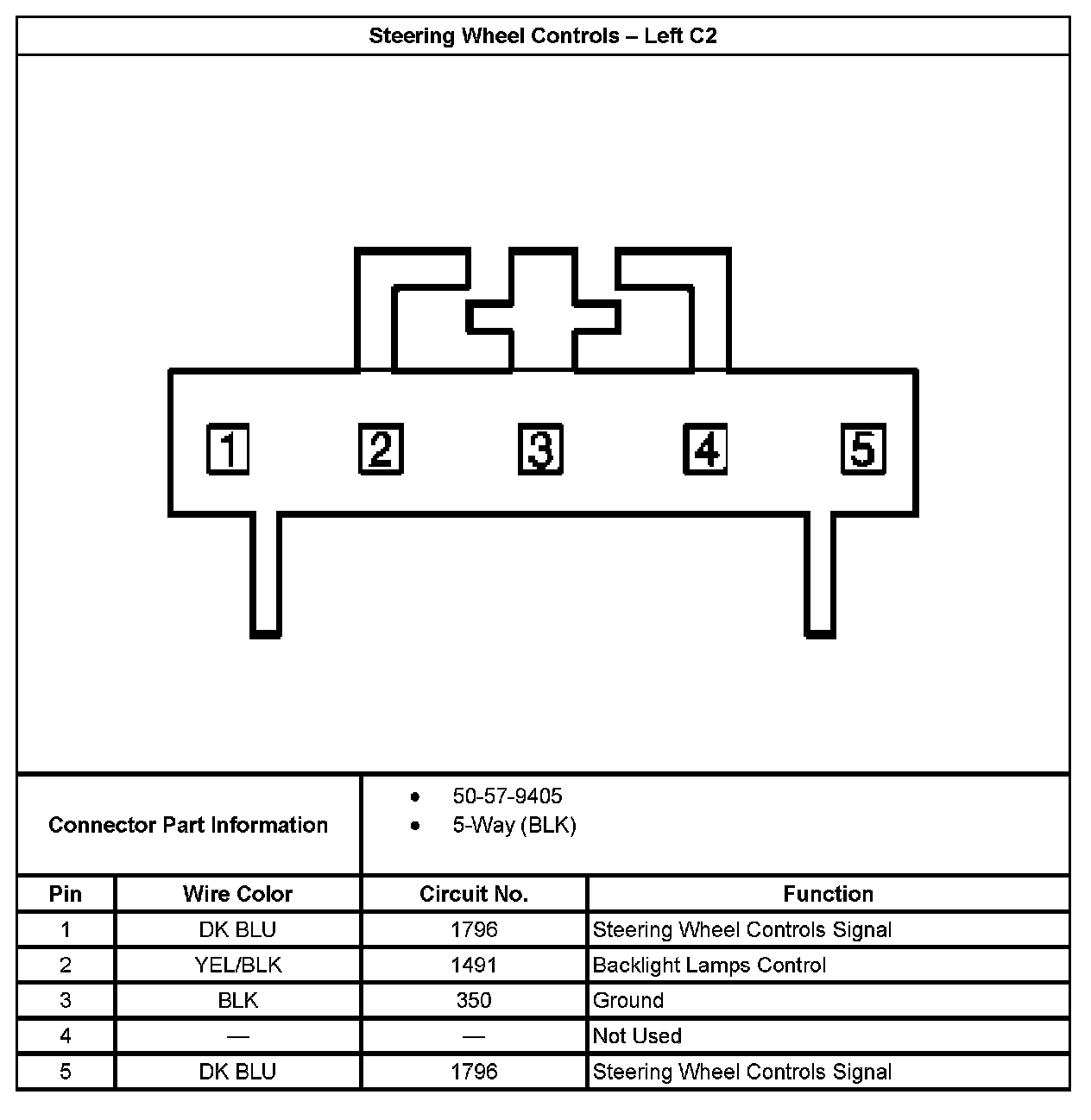

Steering Wheel Controls - Left C2:

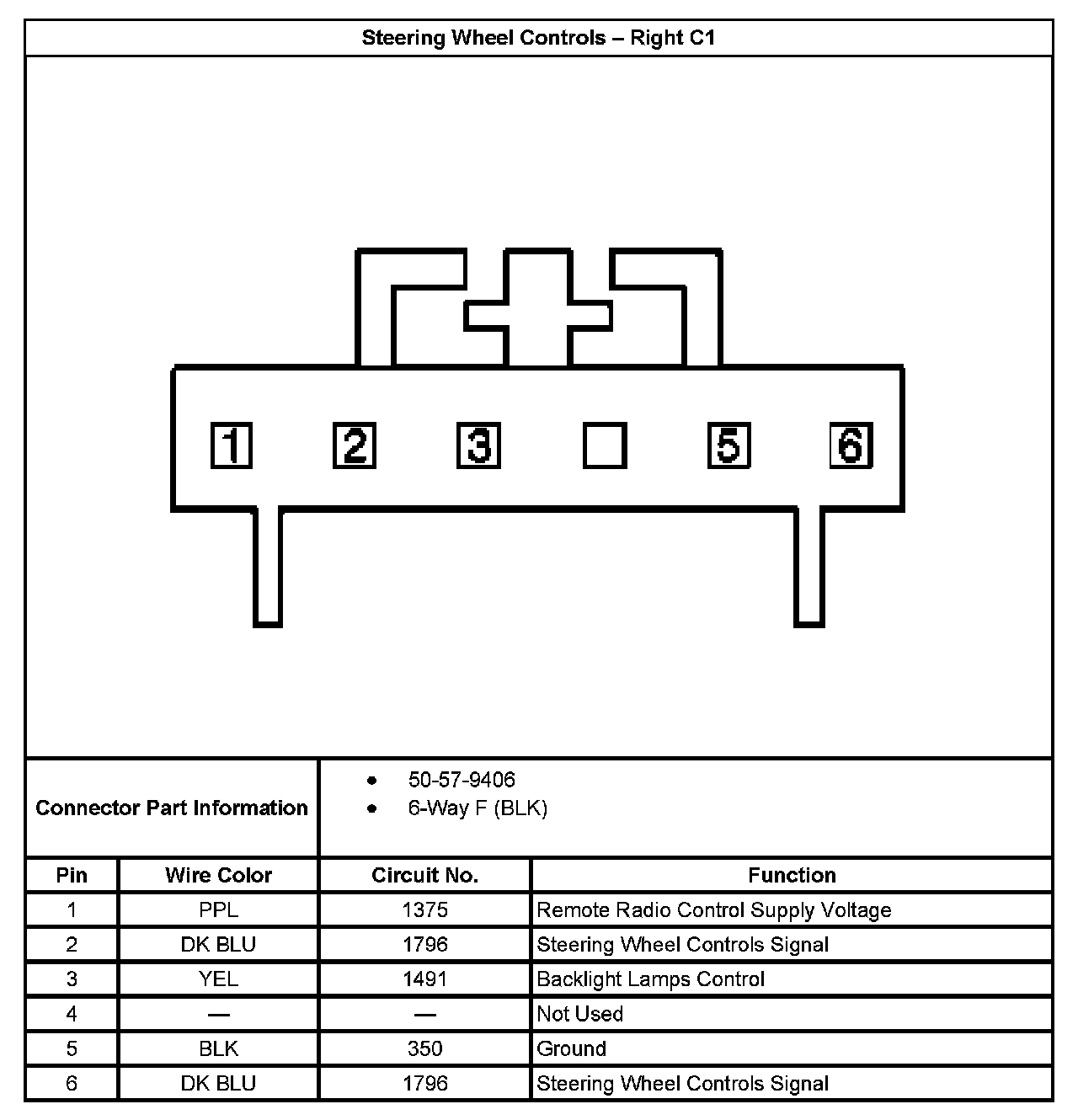

Steering Wheel Controls - Right C1:

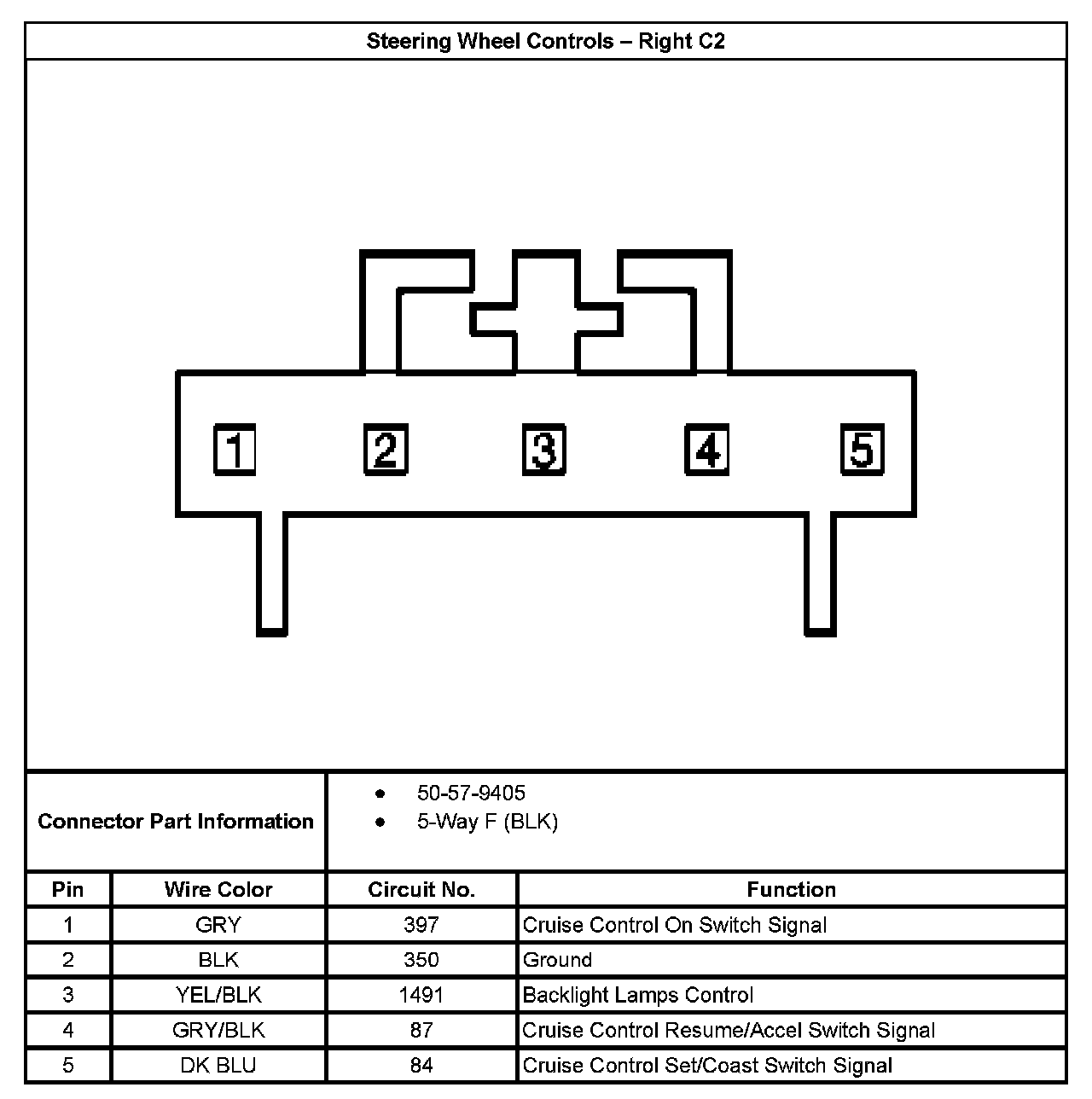

Steering Wheel Controls - Right C2:
