Windshield
Windshield

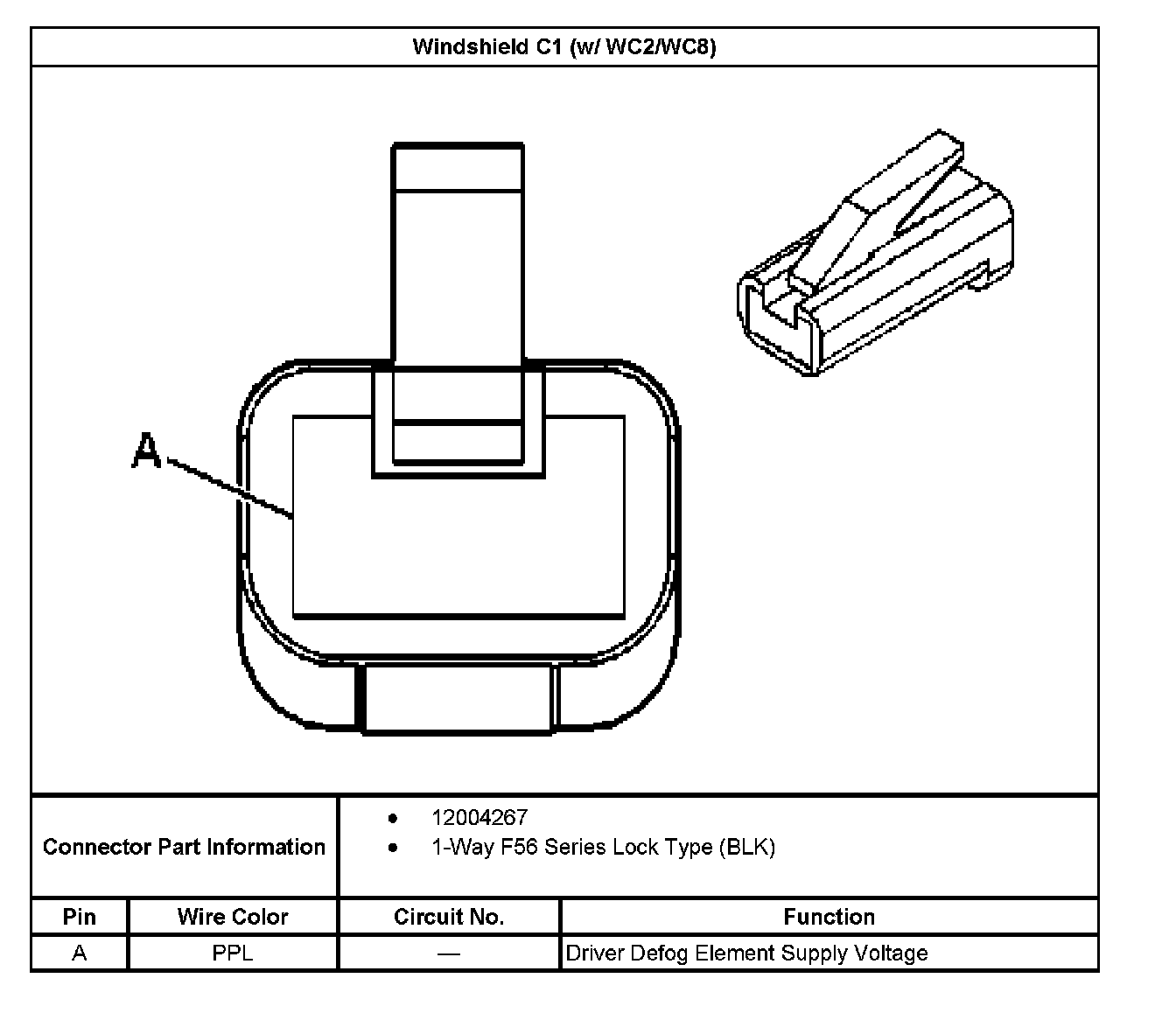

Windshield C1 (With RPO Code WC2/WC8):

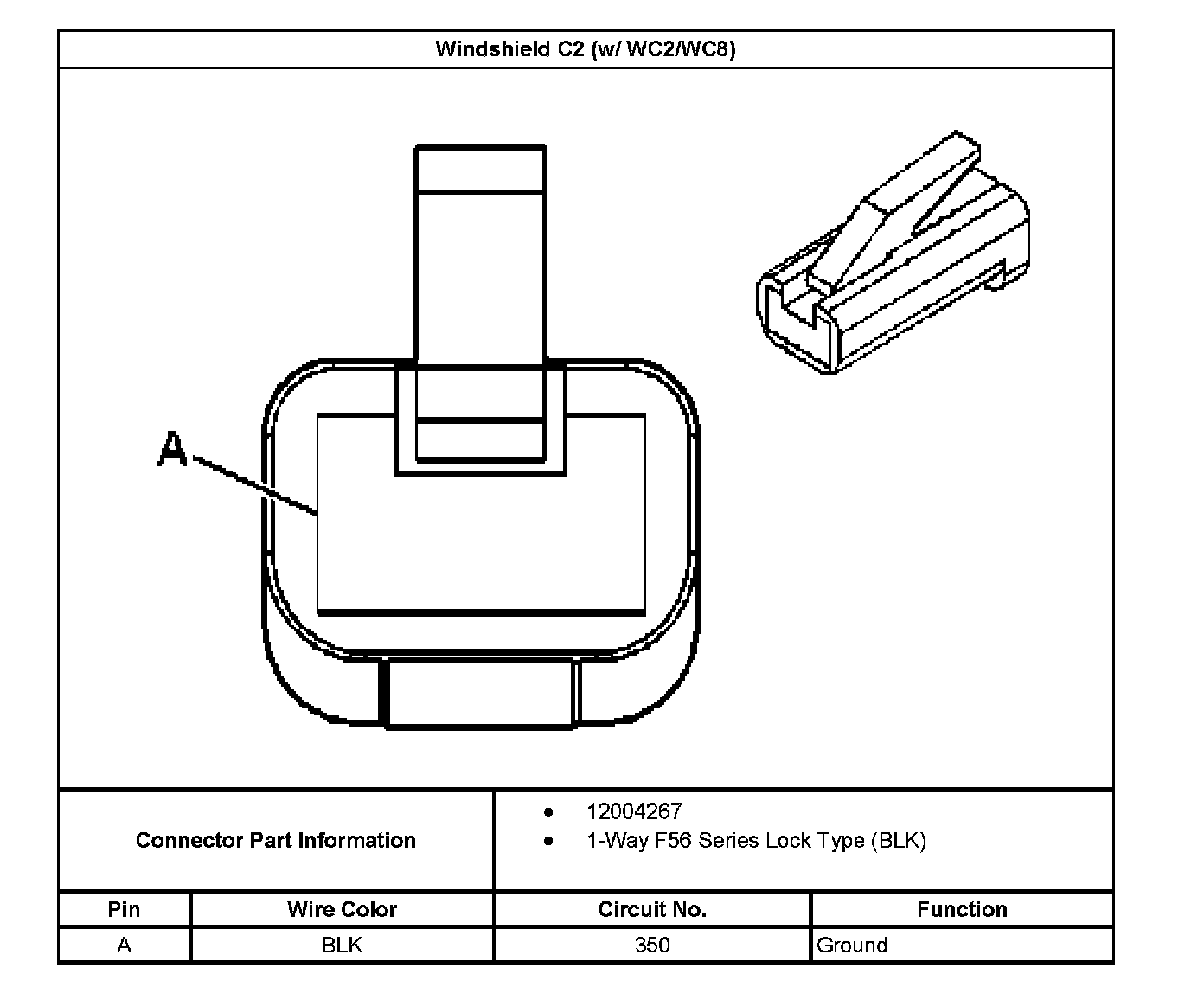

Windshield C2 (With RPO Code WC2/WC8):

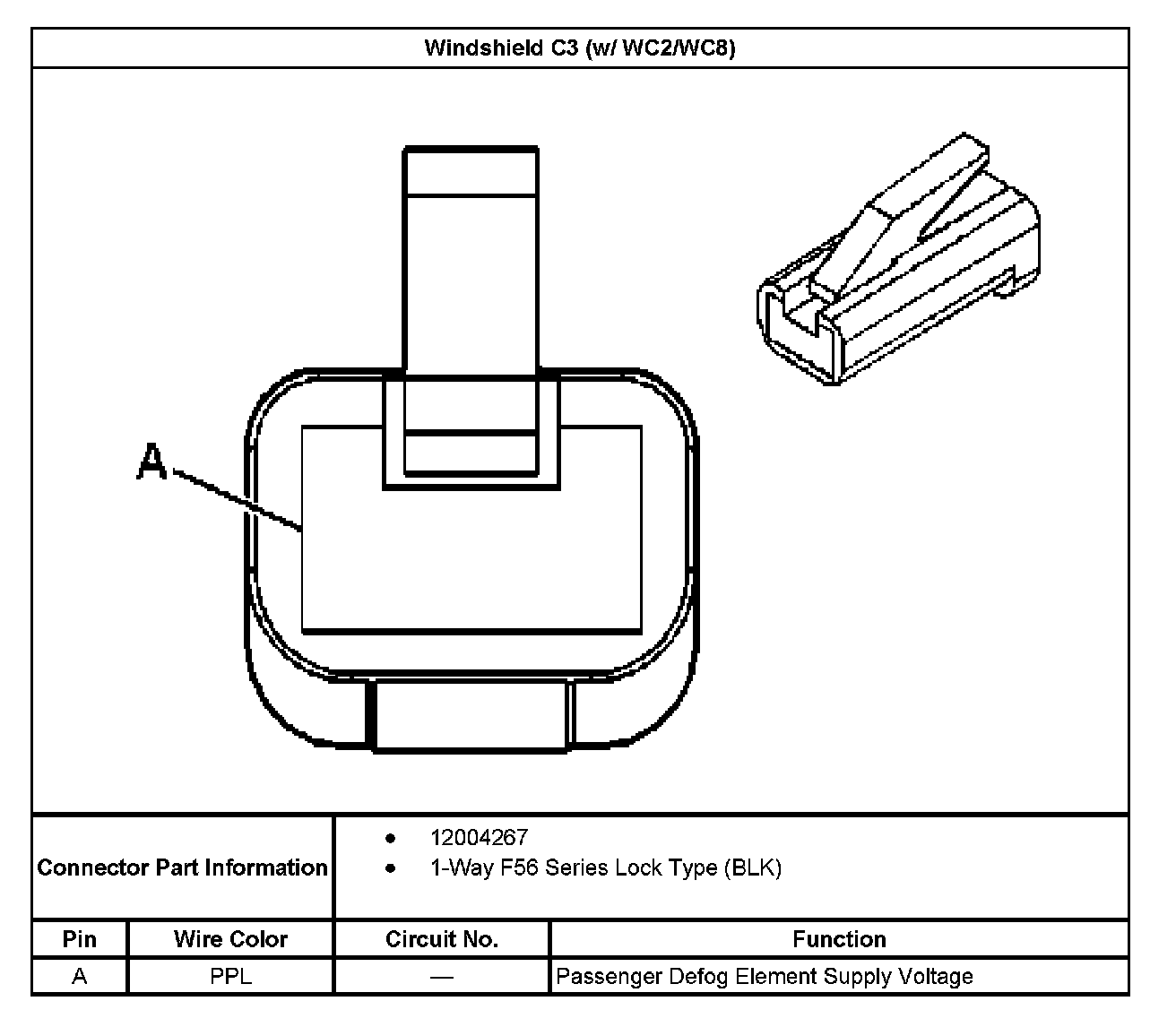

Windshield C3 (With RPO Code WC2/WC8):

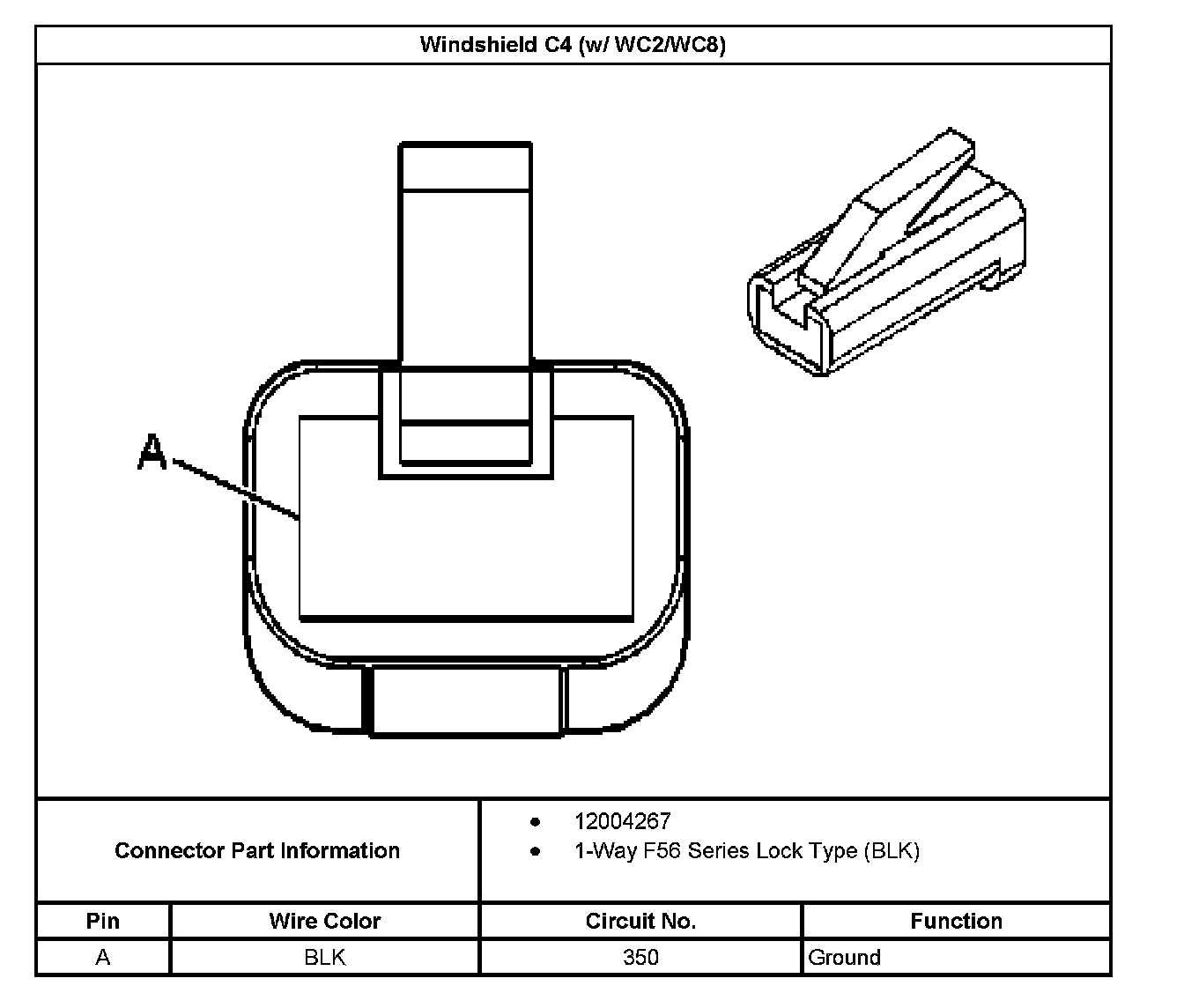

Windshield C4 (With RPO Code WC2/WC8):
