Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
2005
>>
STS V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
Components

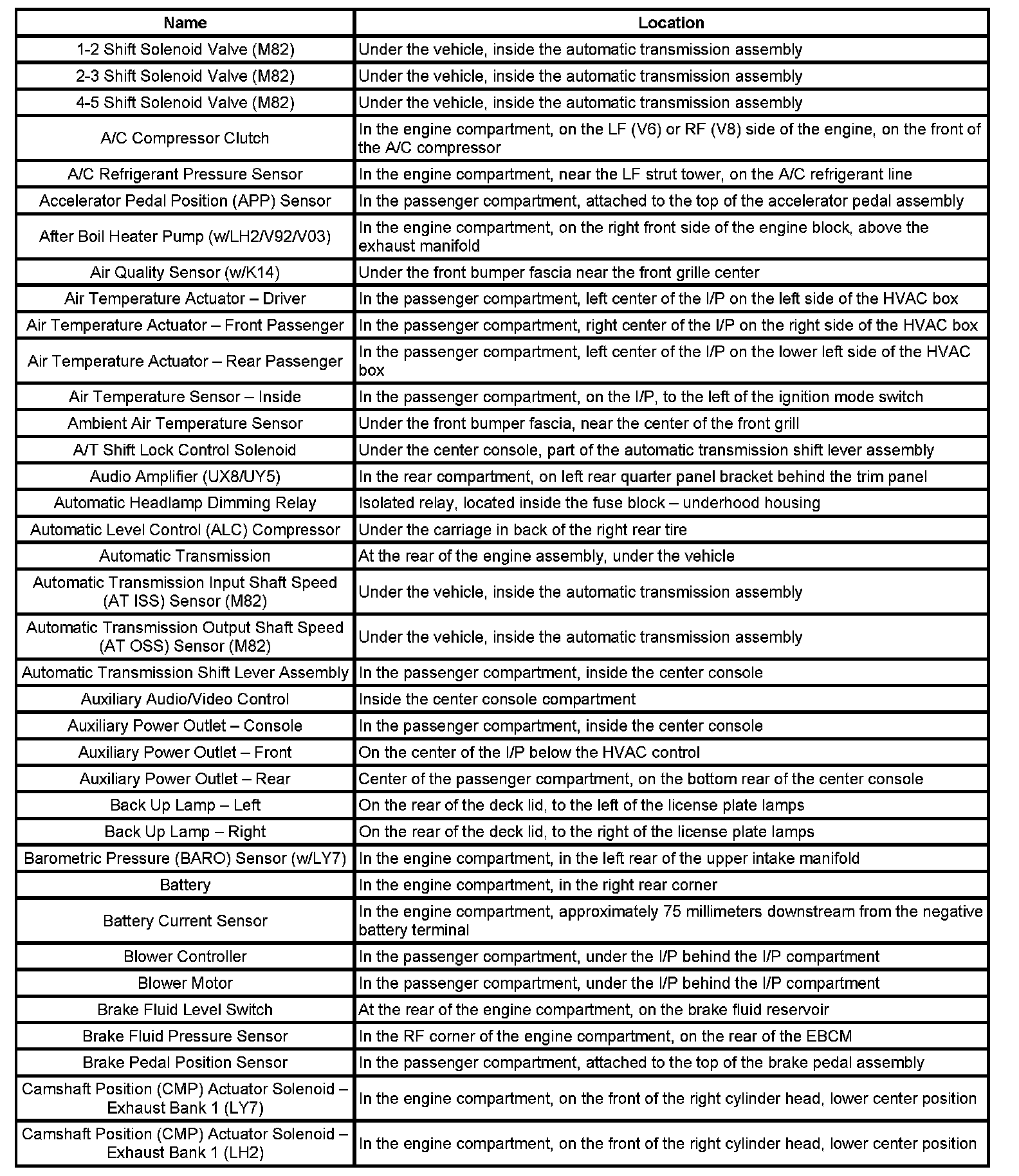

1-2 Sh - Ca:

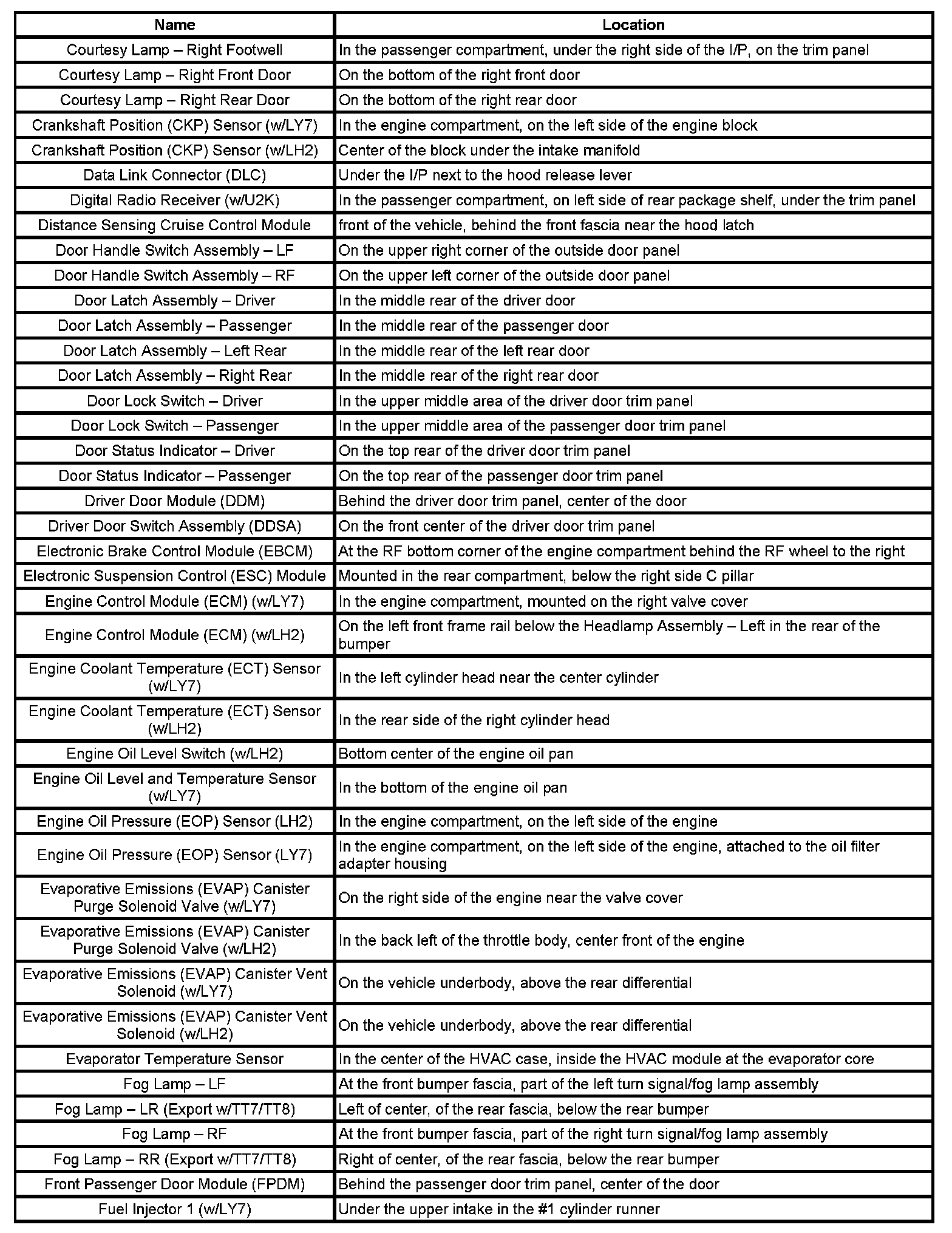

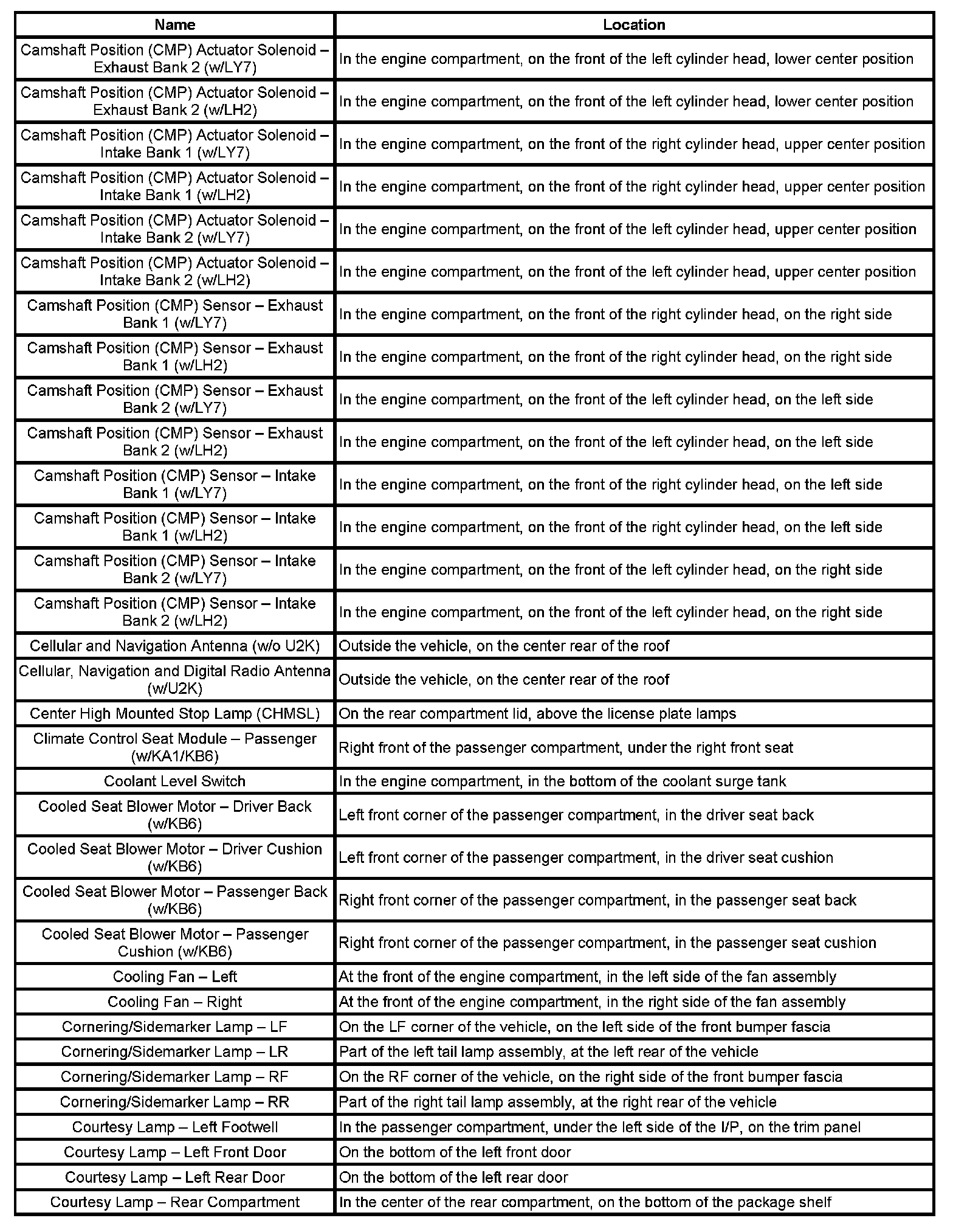

Ca - Co:
Co - Fu:

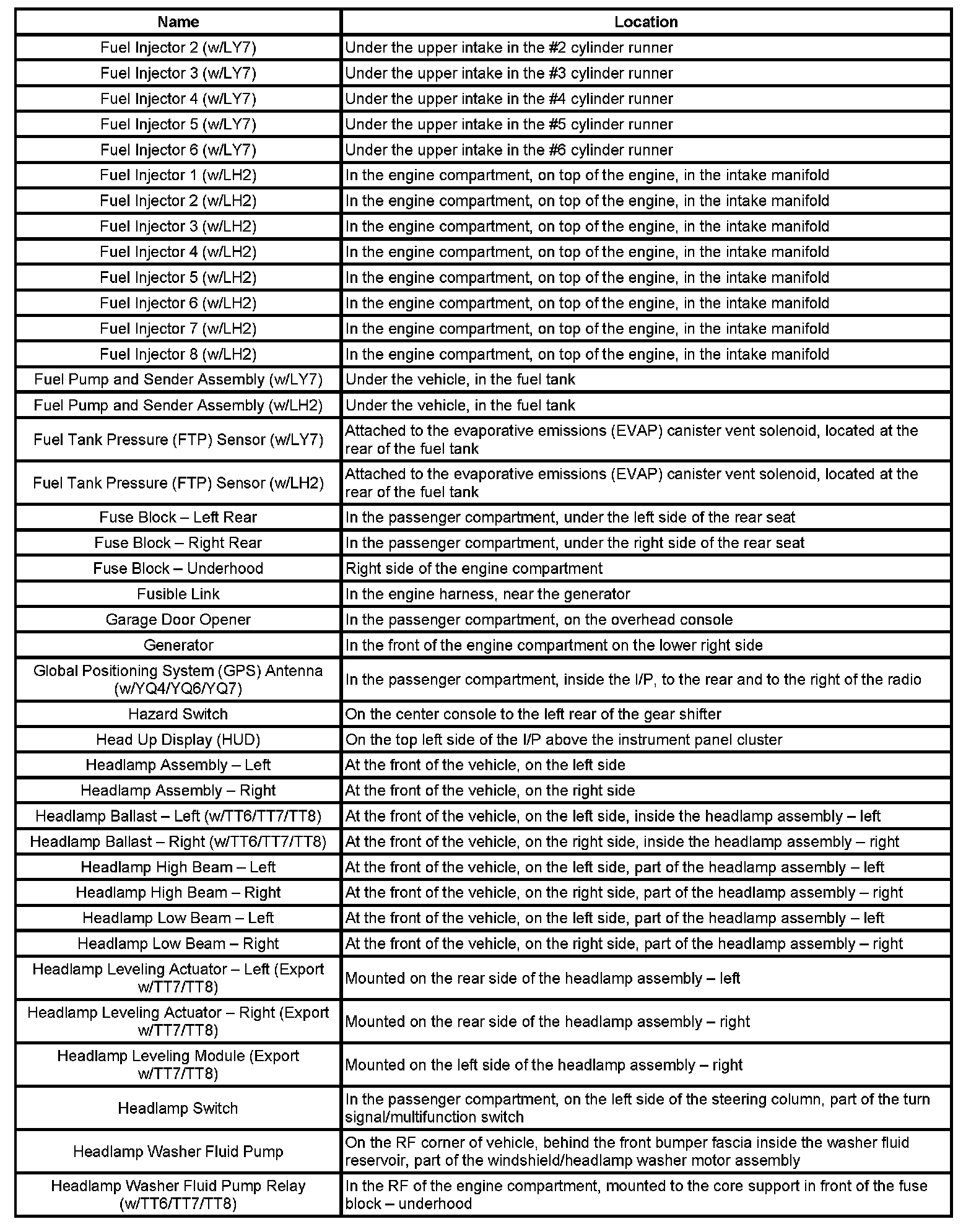

Fu - He:

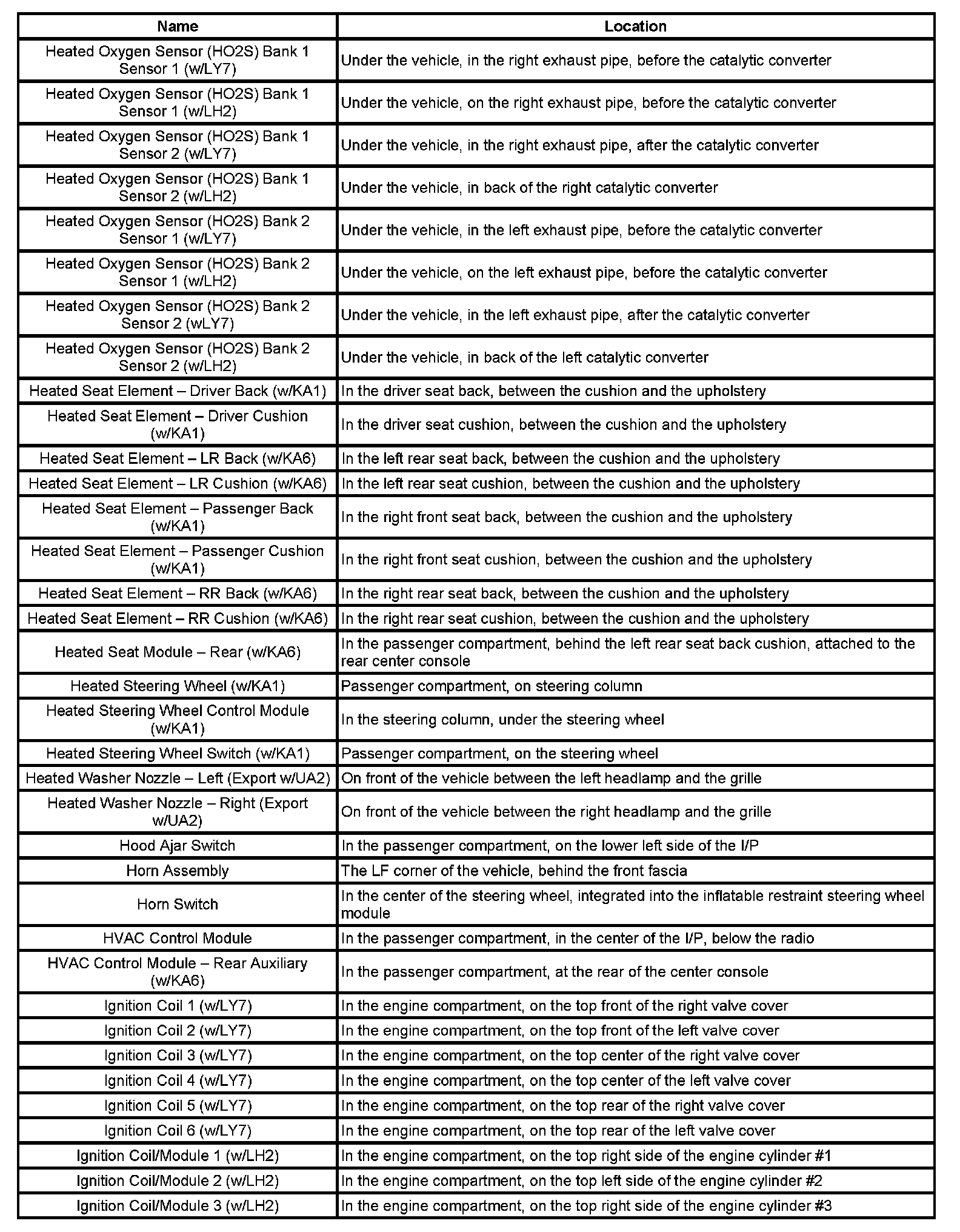

He - Ig:

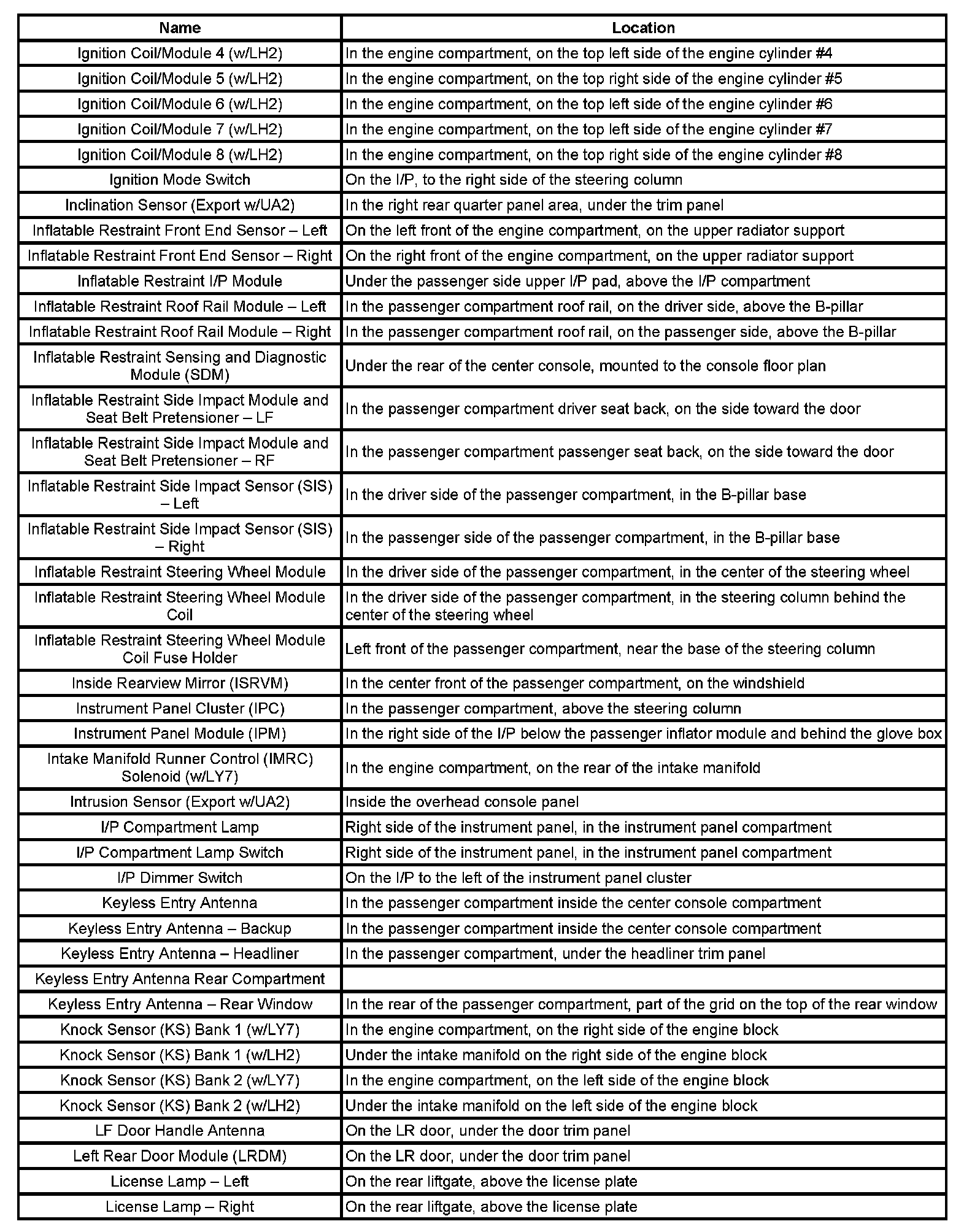

Ig - Li:

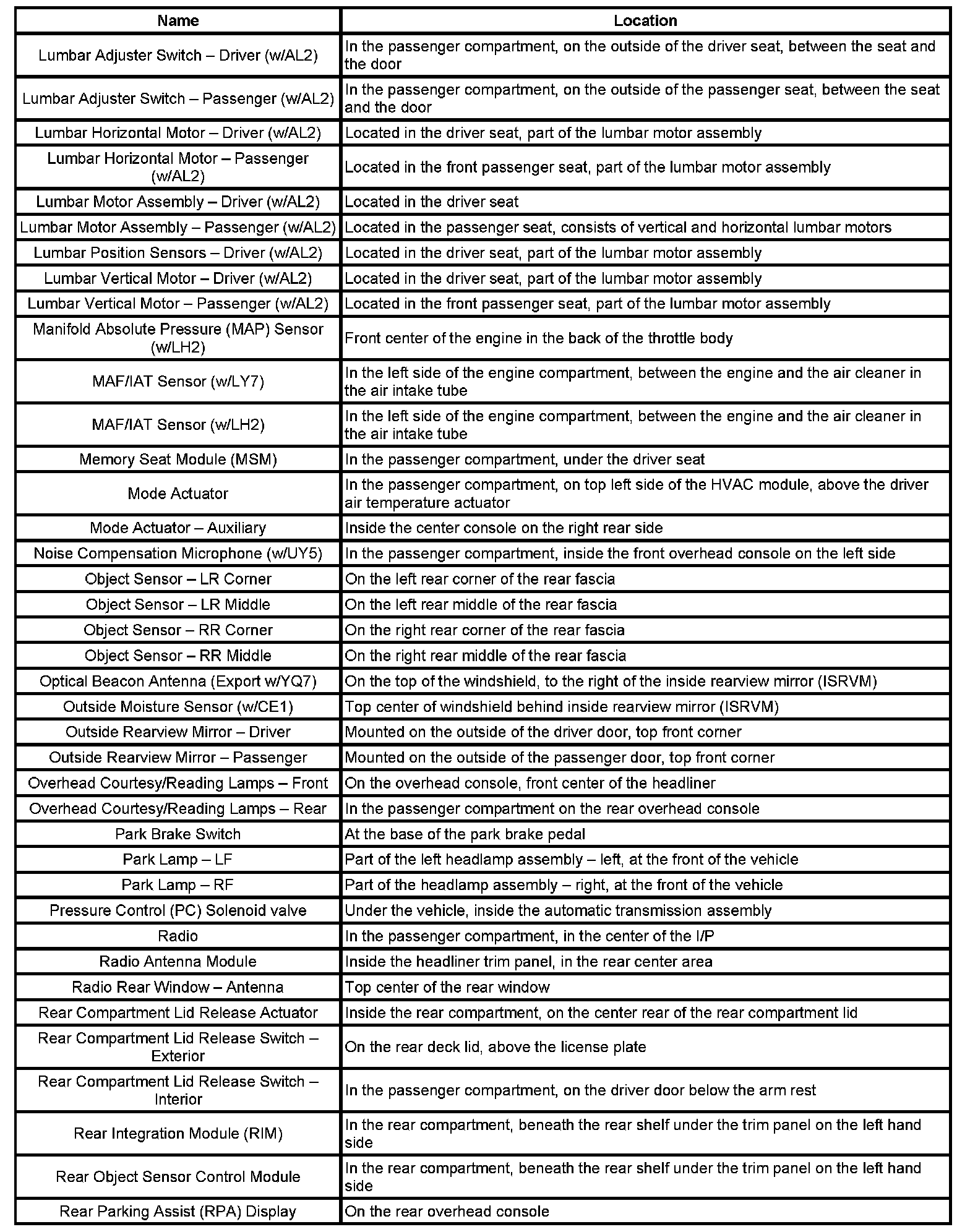

Lu - Re:

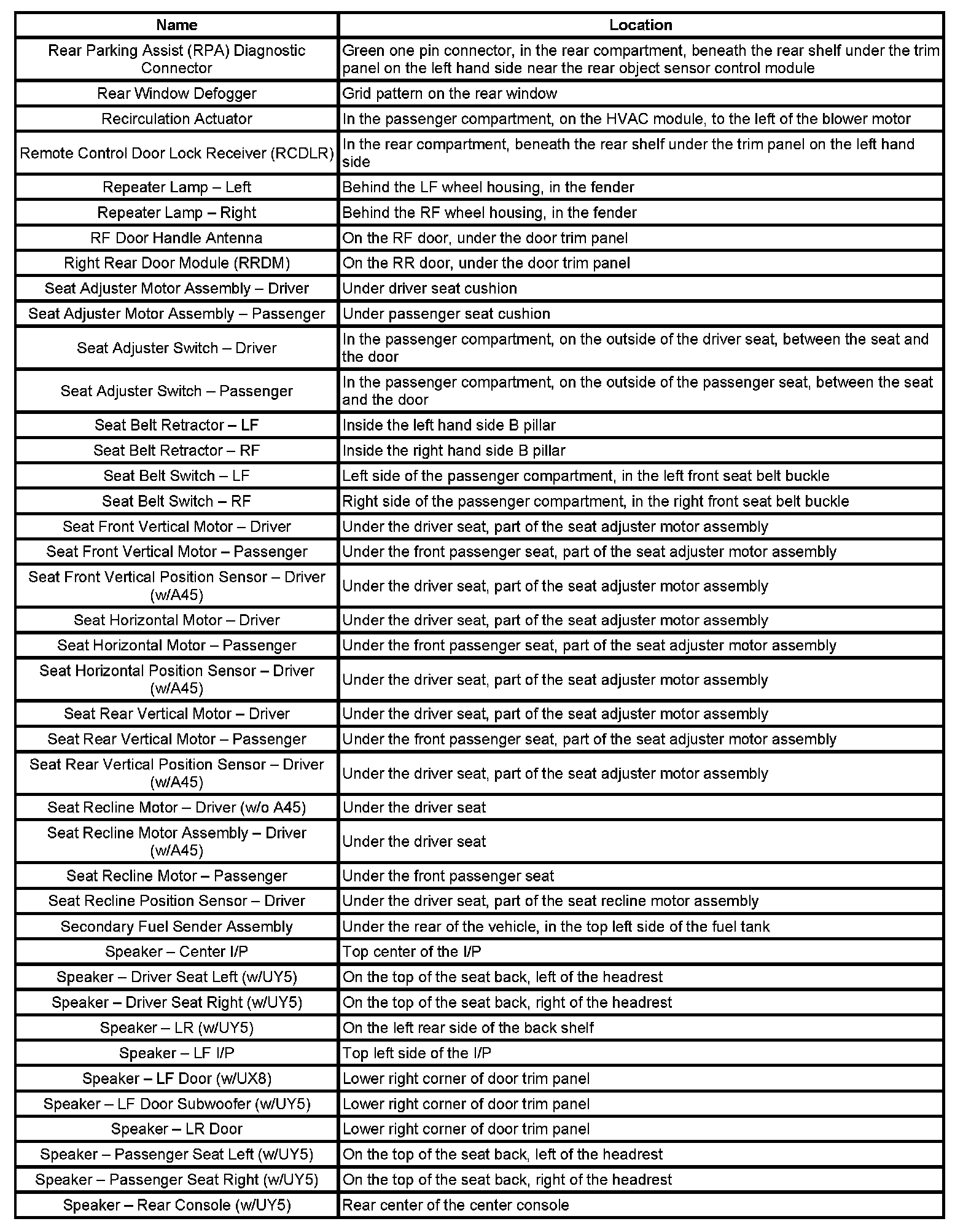

Re - Sp:

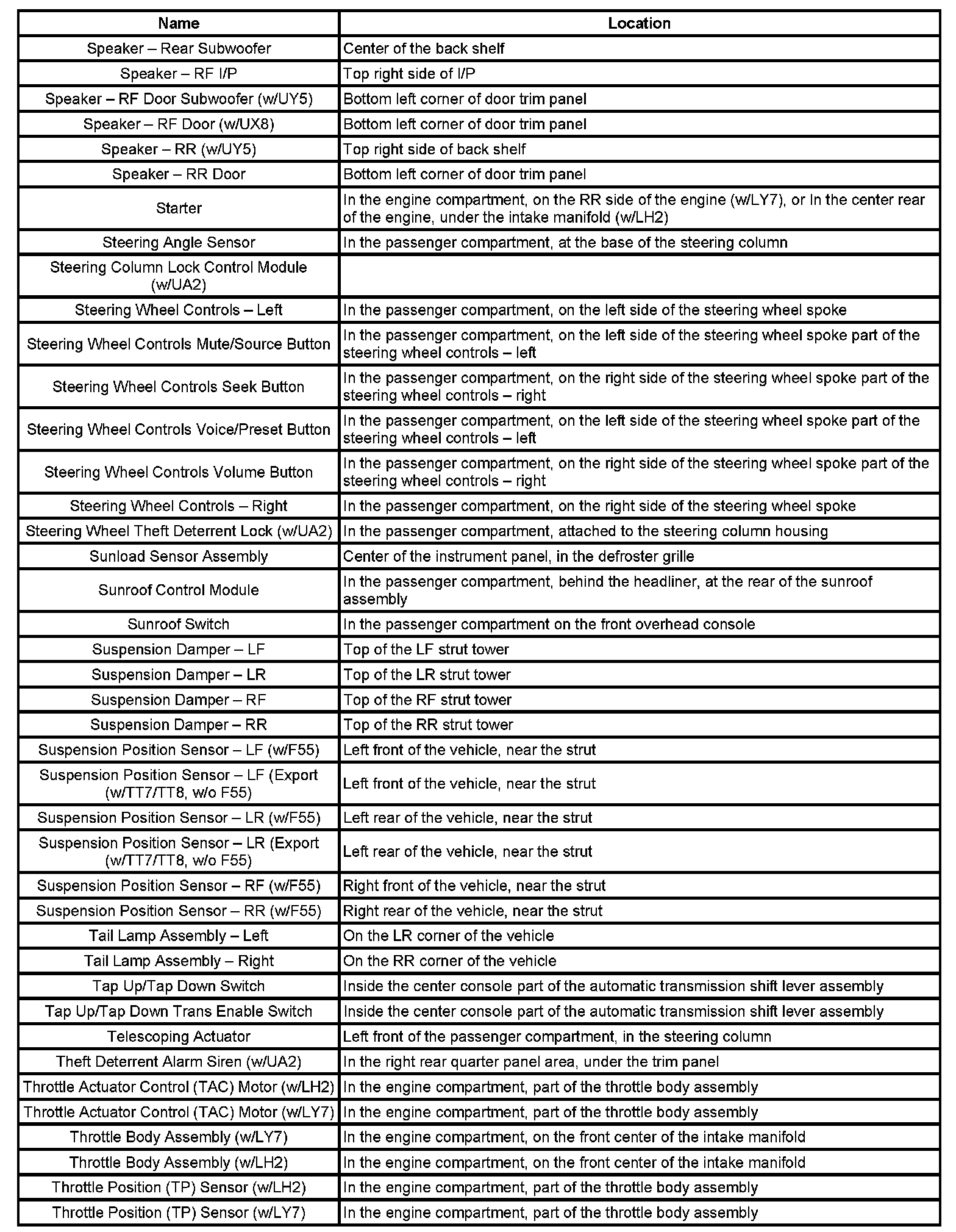

Sp - Th:

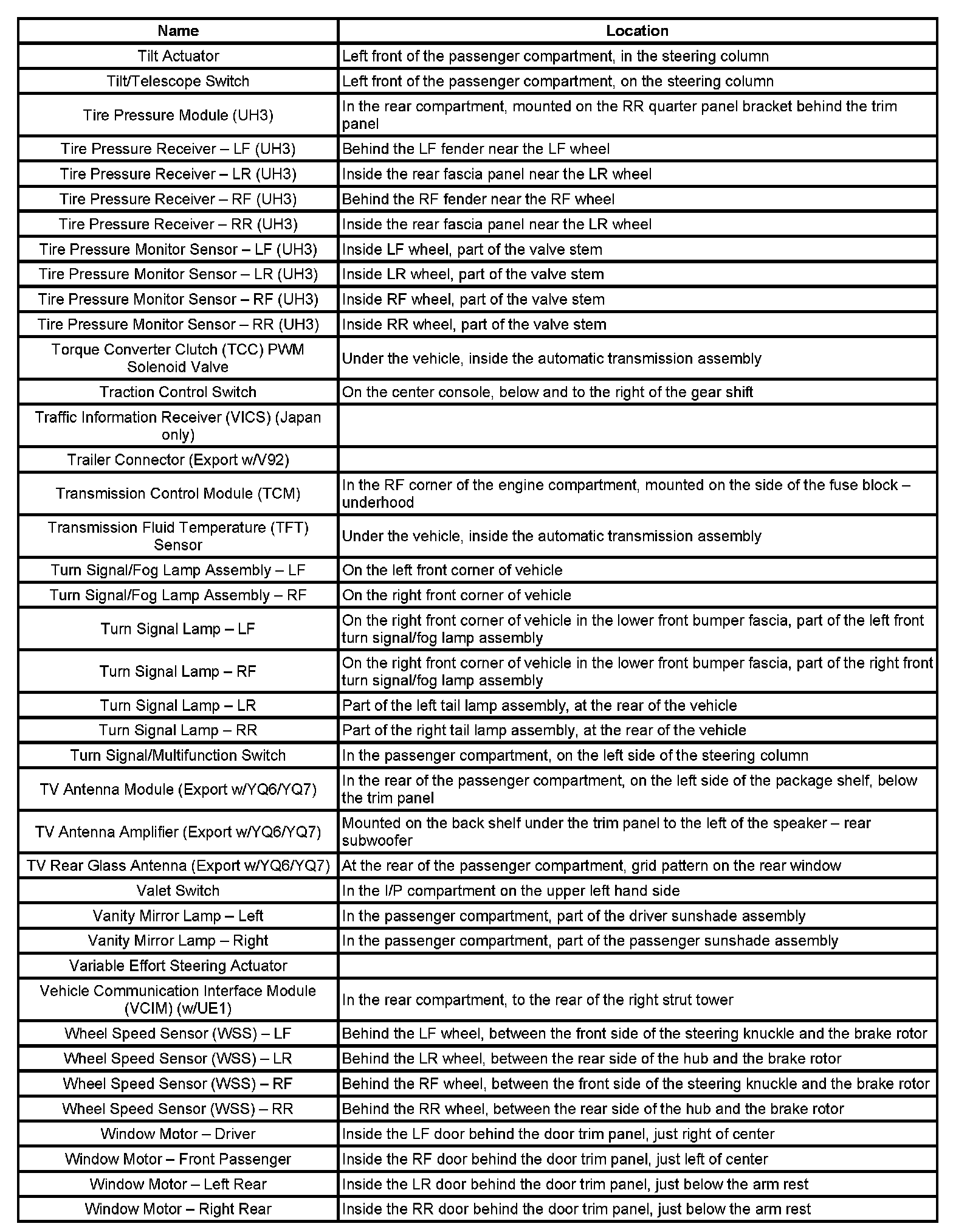

Ti - Wi:

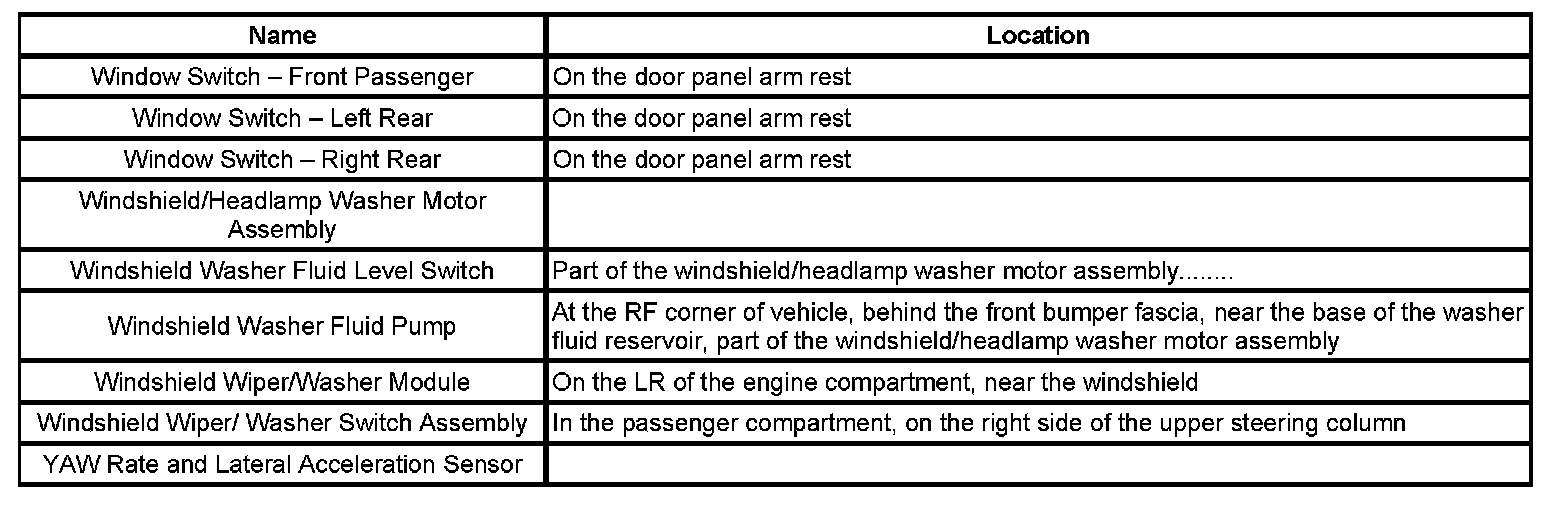

Wi - YA:
