Home >> Cadillac >> 2005 >> STS V6-3.6L VIN 7 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Backup Lamp

Backup Lamp

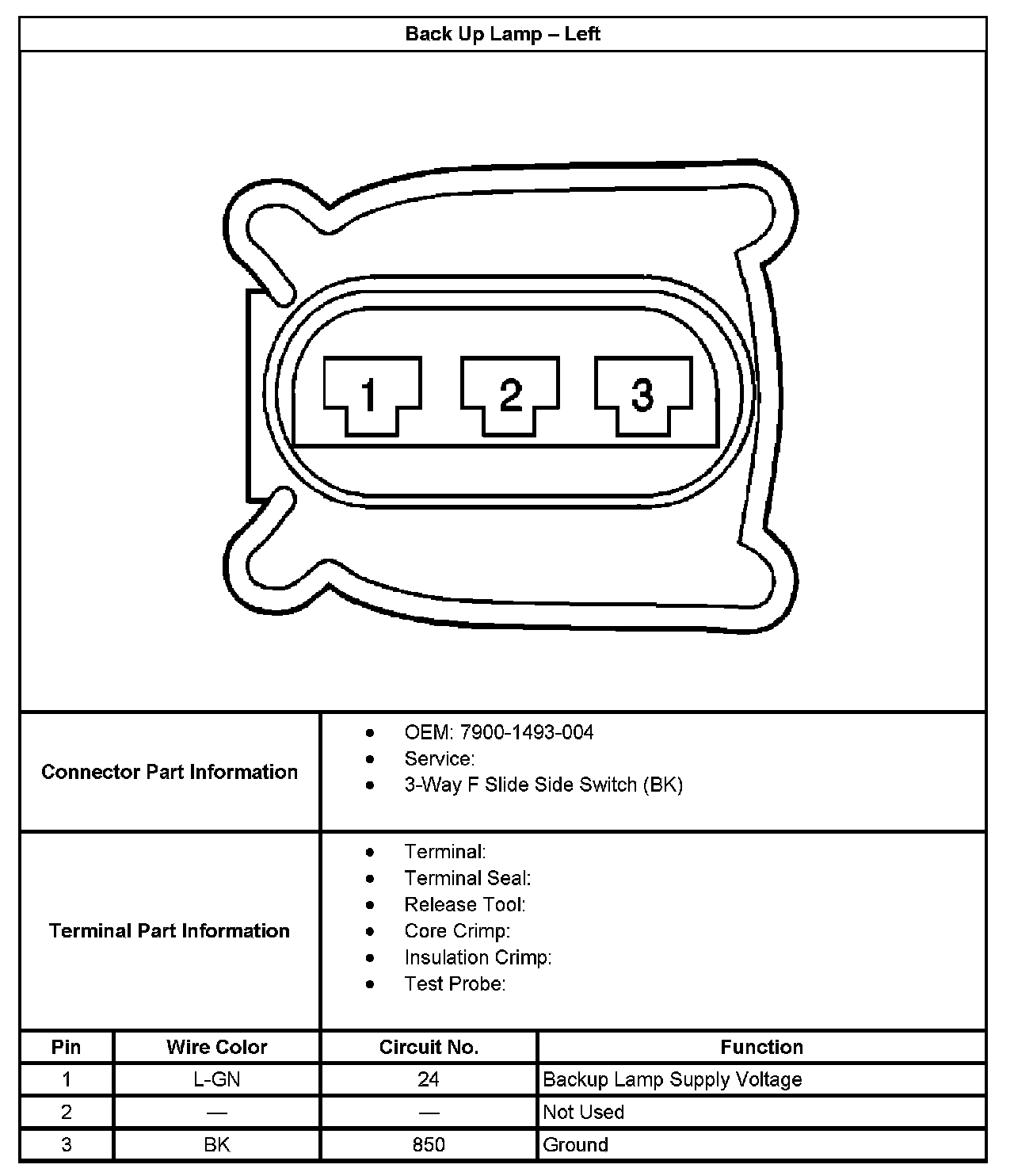

Back Up Lamp - Left:

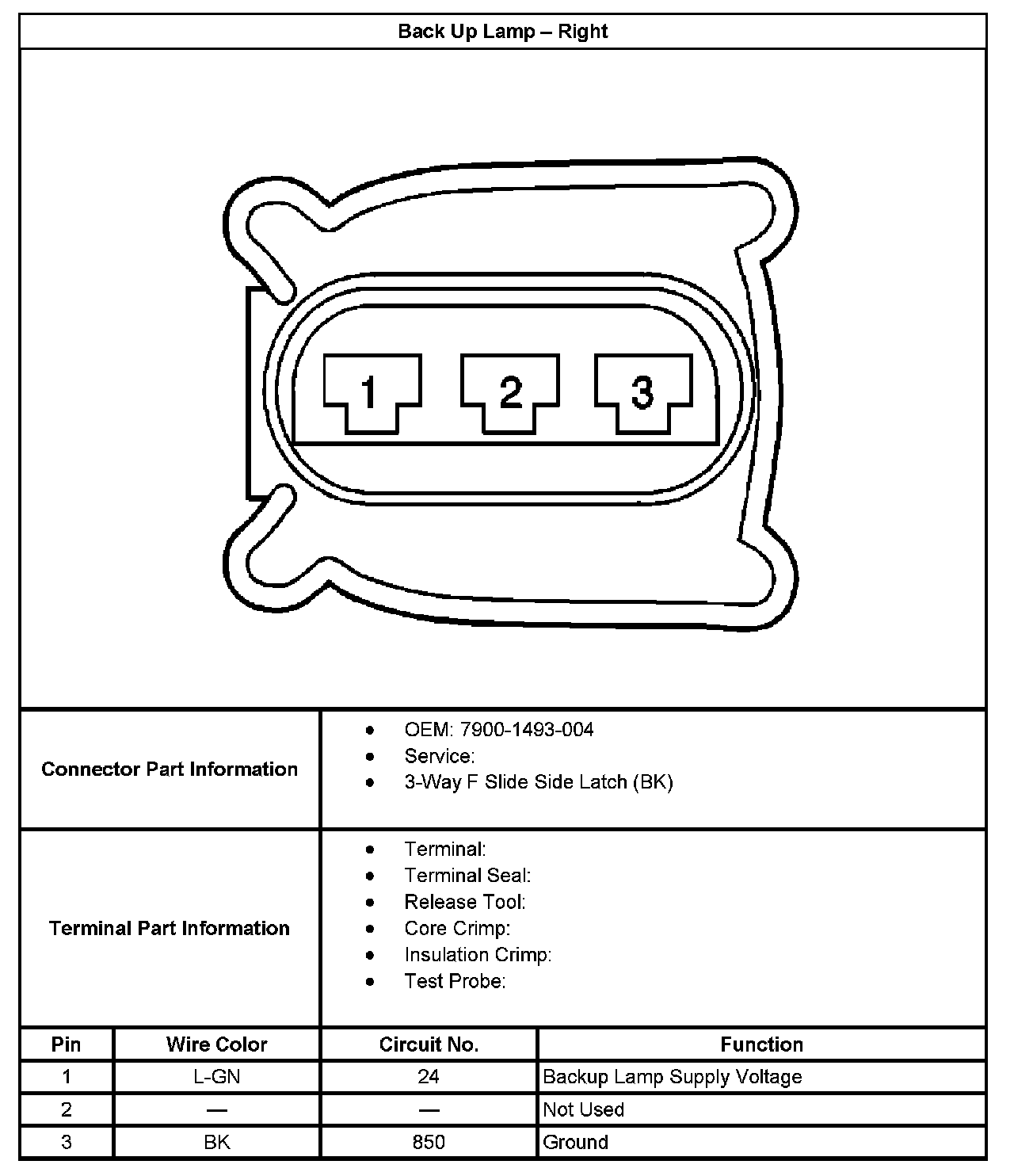

Back Up Lamp - Right:
