Climate Control Exhaust Gas Sensor
Climate Control Exhaust Gas Sensor

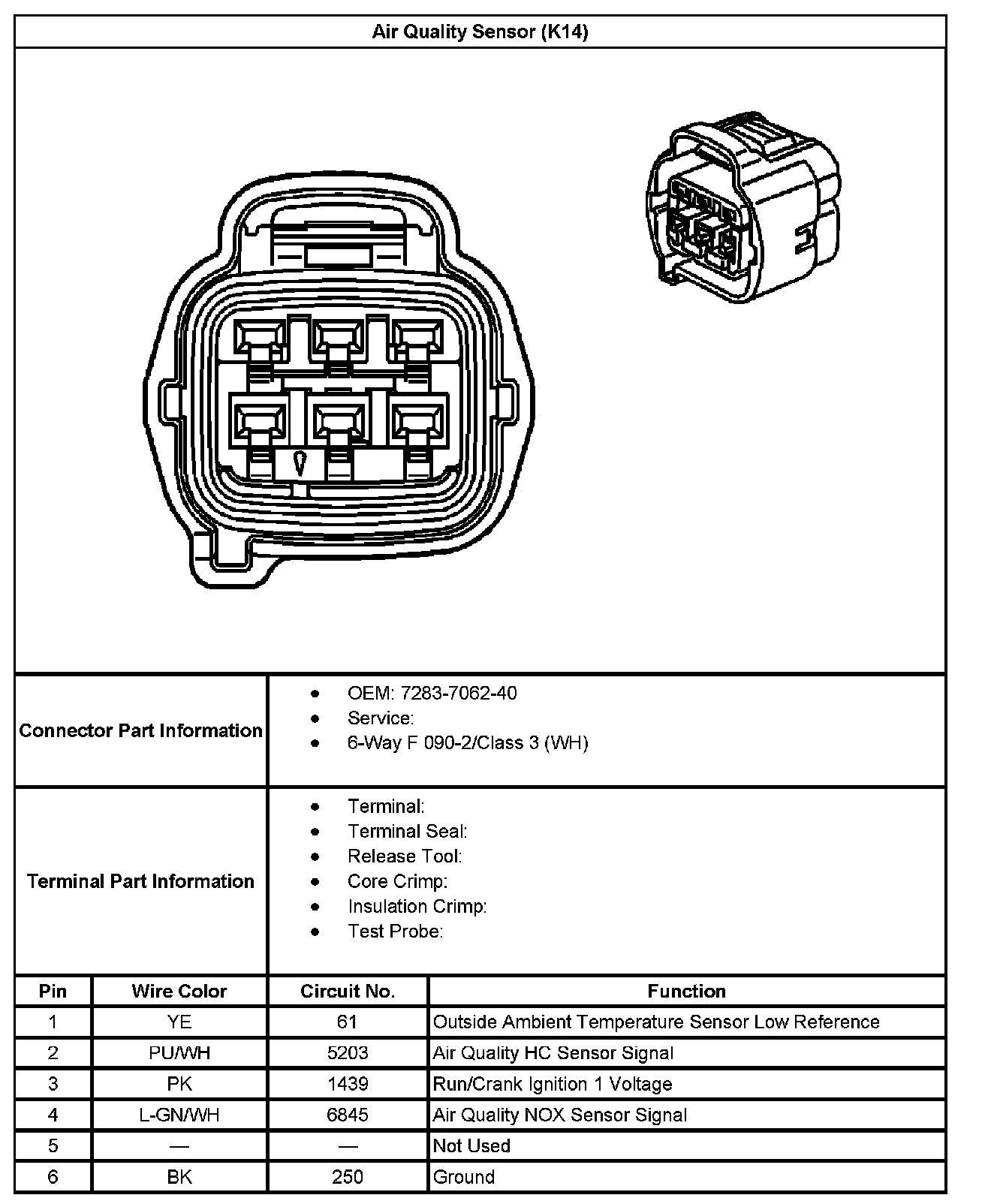

Air Quality Sensor (With RPO Code K14):
