System Diagram
System Diagram

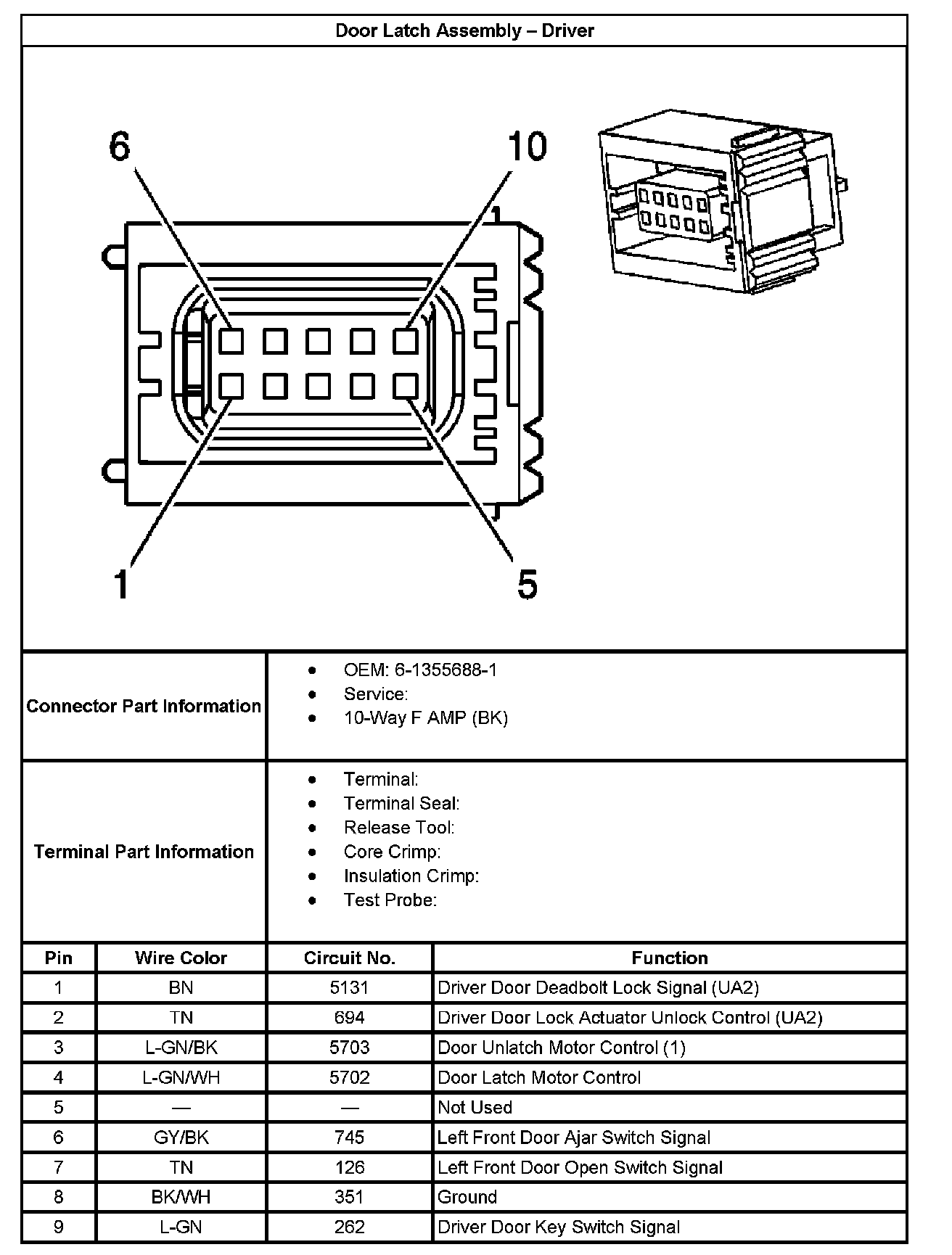

Door Latch Assembly - Driver:

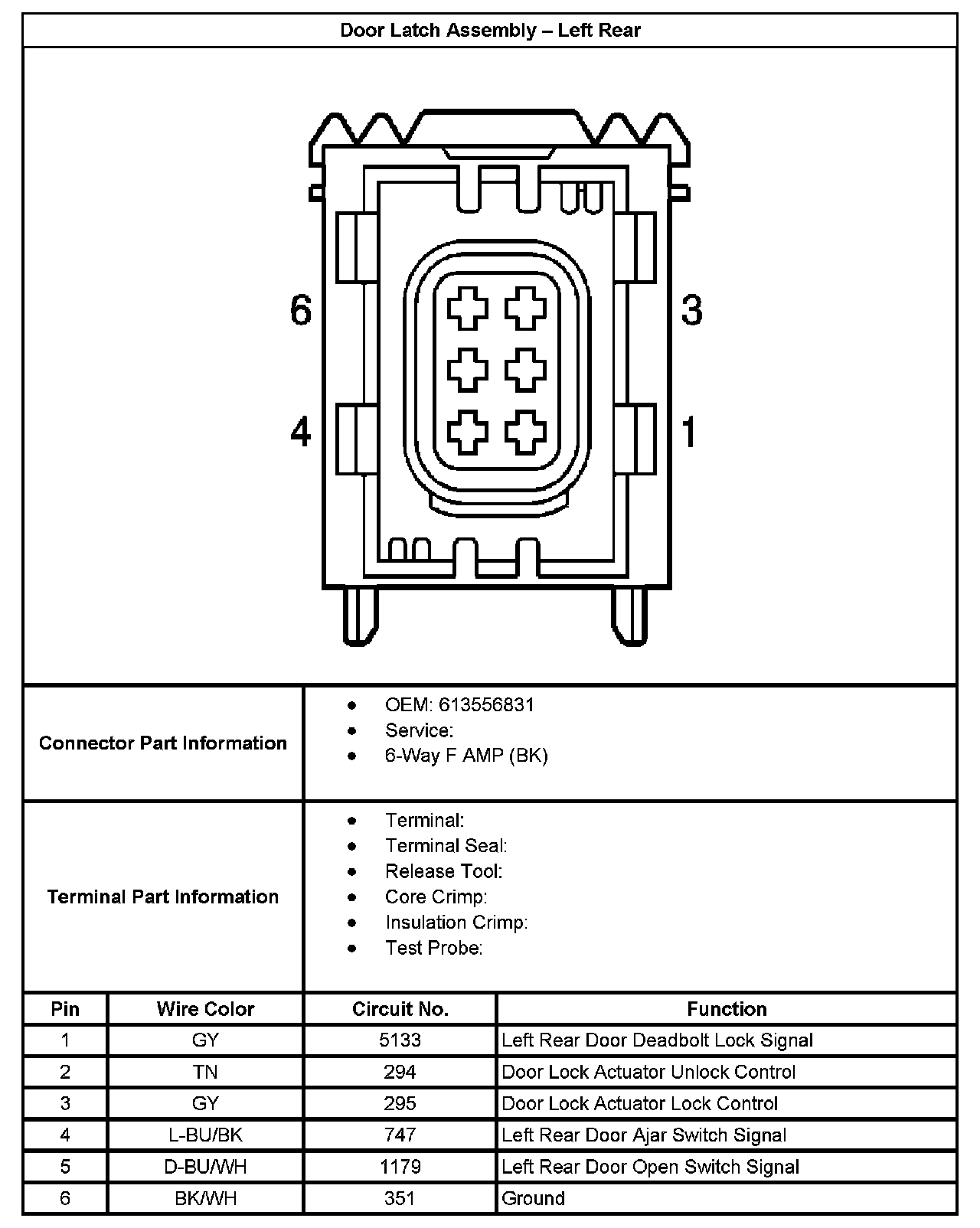

Door Latch Assembly - Left Rear:

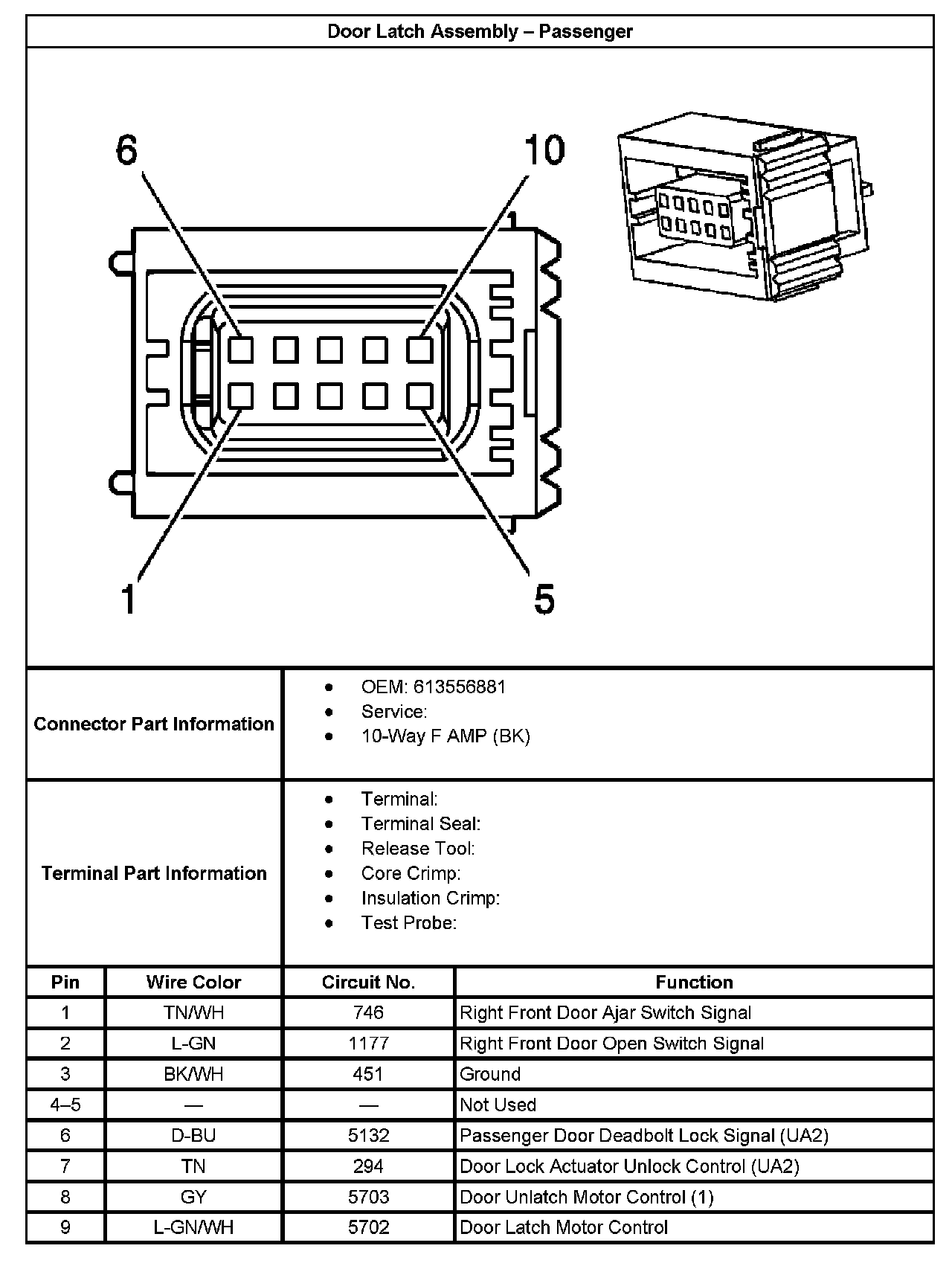

Door Latch Assembly - Passenger:

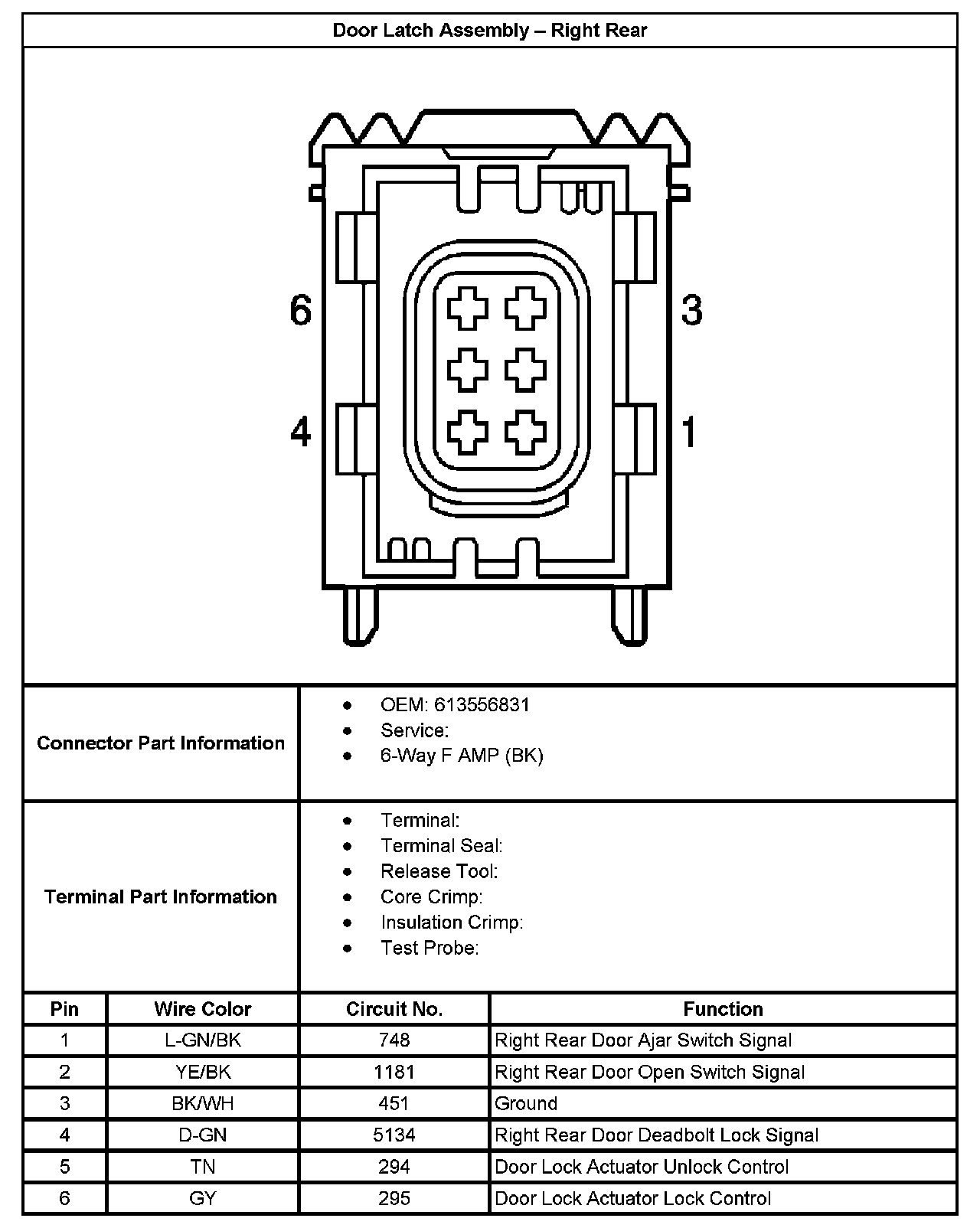

Door Latch Assembly - Right Rear:
