Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
2005
>>
STS V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Headlamp
>>
Headlamp Alignment Control Module
Headlamp Alignment Control Module

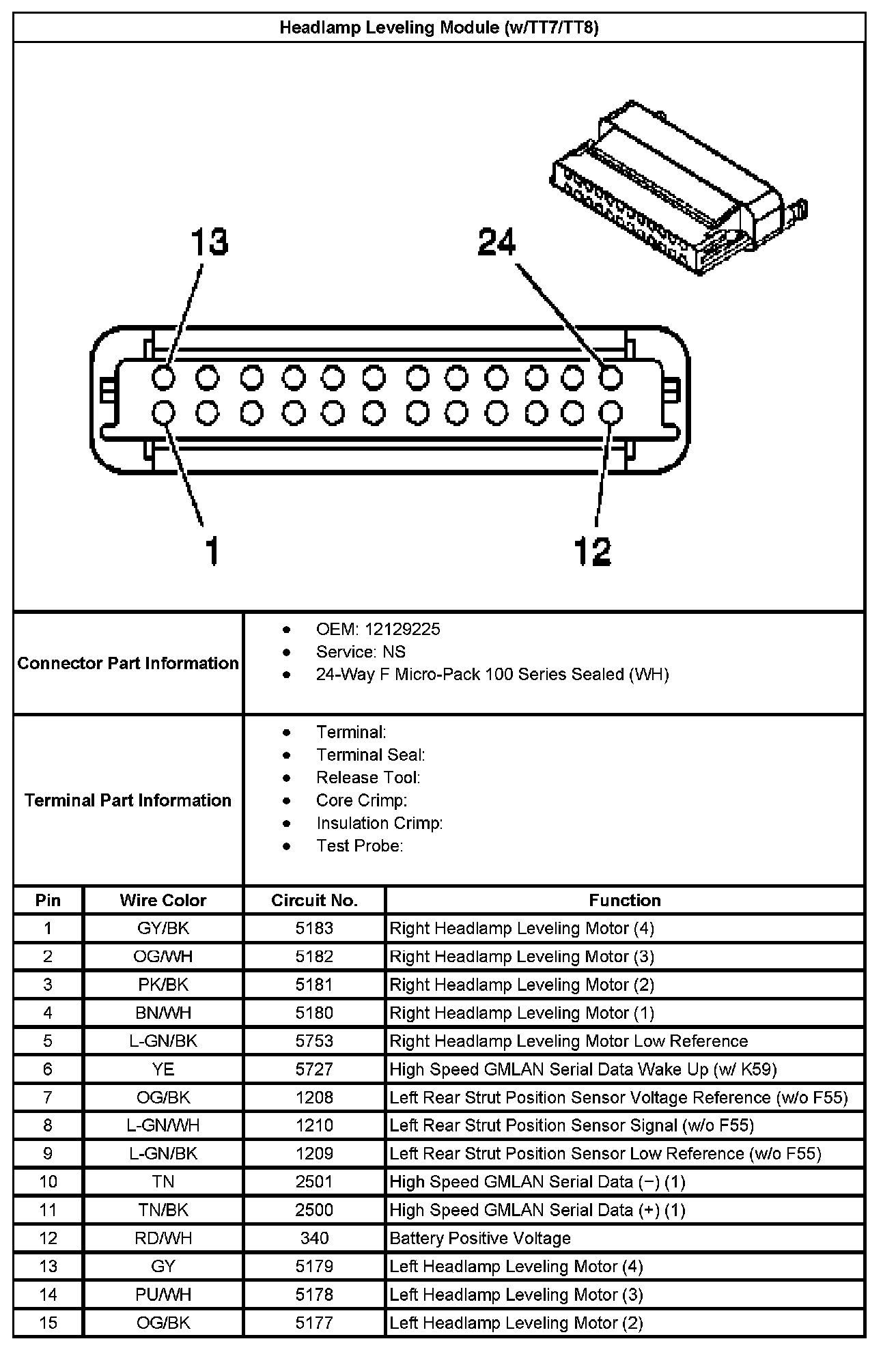

Headlamp Leveling Module (With RPO Code TT7/TT8) Part 1:

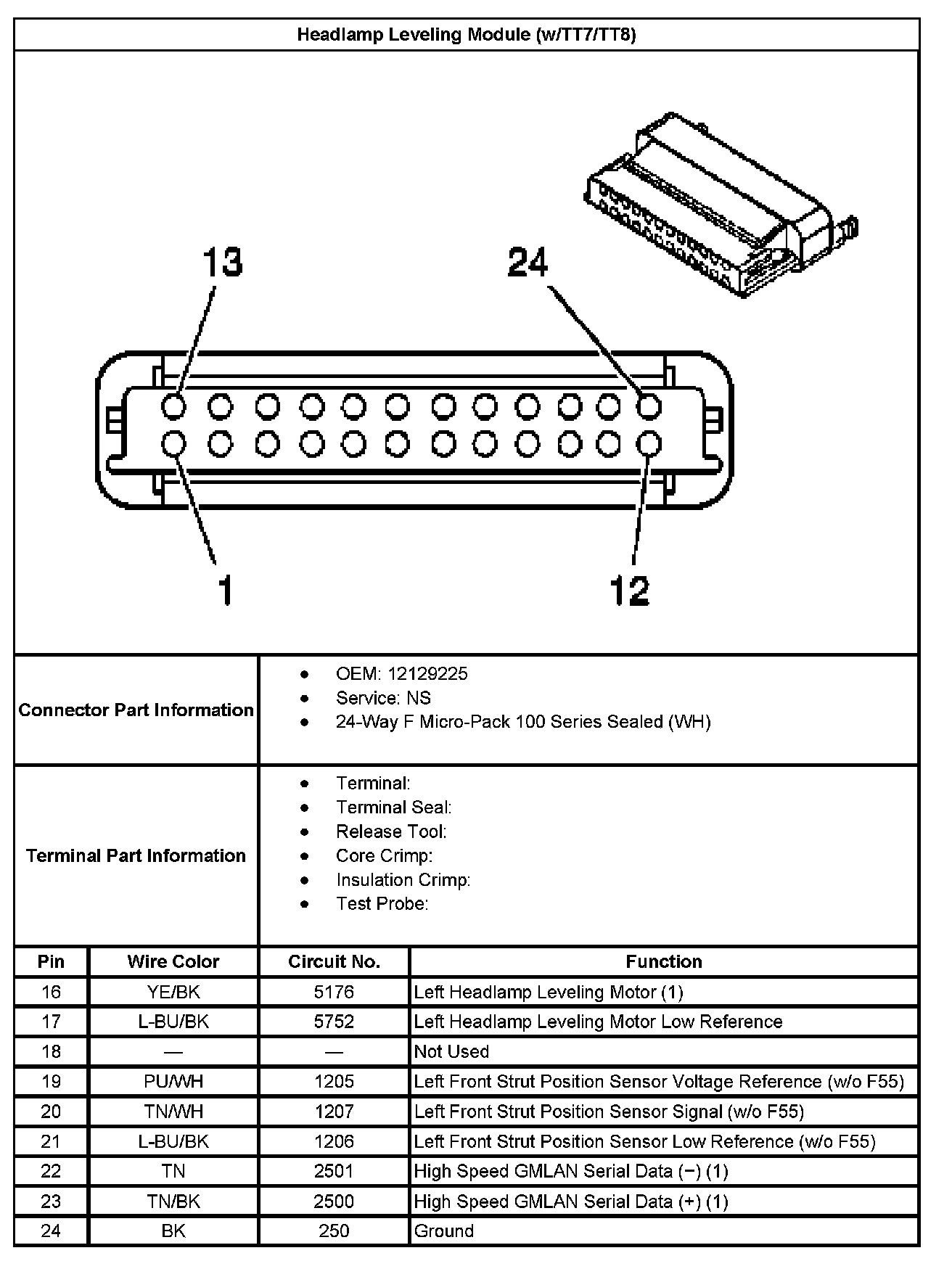

Headlamp Leveling Module (With RPO Code TT7/TT8) Part 2:
