Home >> Cadillac >> 2005 >> STS V6-3.6L VIN 7 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Mirrors

Mirrors

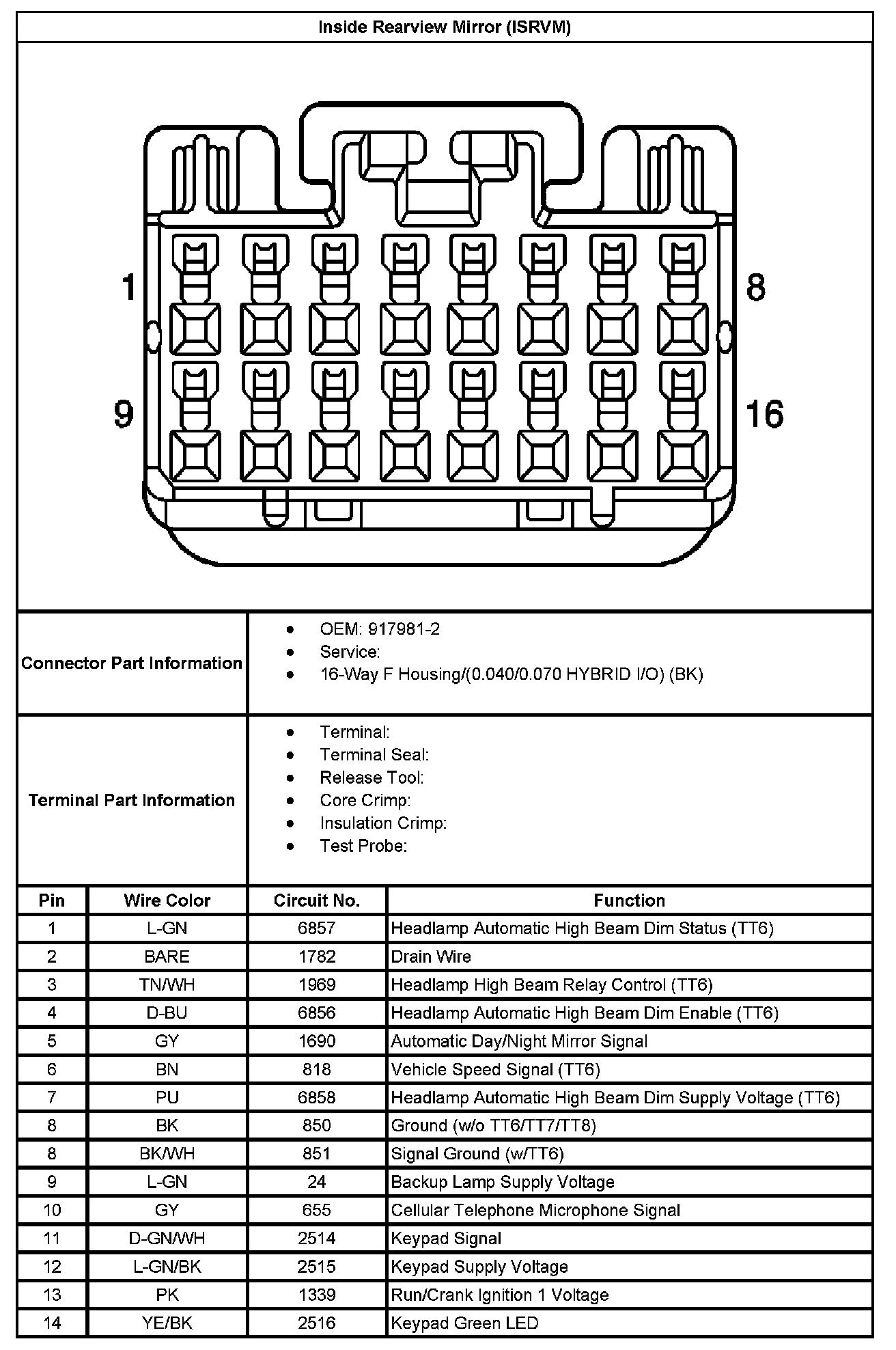

Inside Rearview Mirror (ISRVM) Part 1:

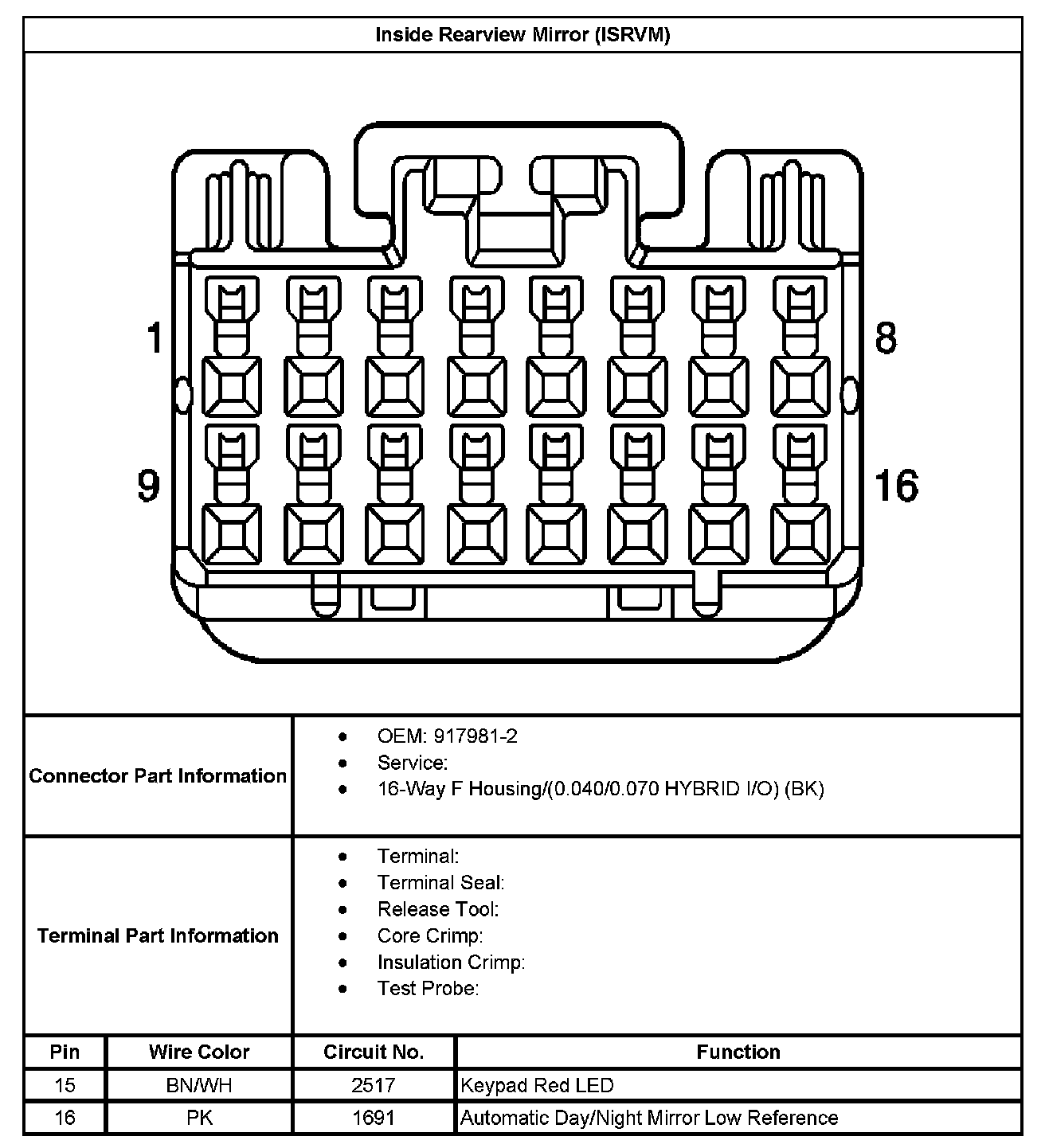

Inside Rearview Mirror (ISRVM) Part 2:
