Power Window Motor
Power Window Motor
Window Motor - Driver:

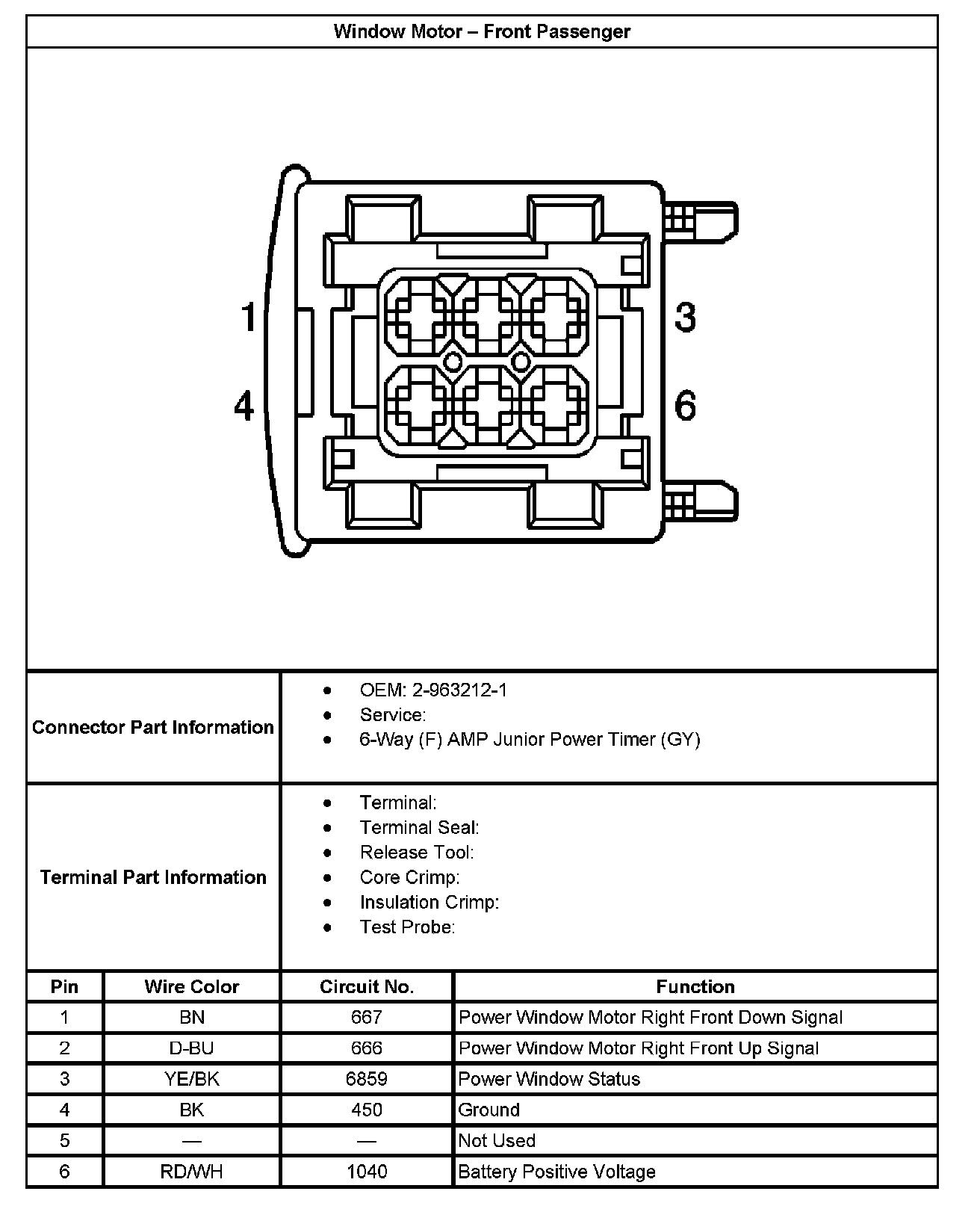

Window Motor - Front Passenger:

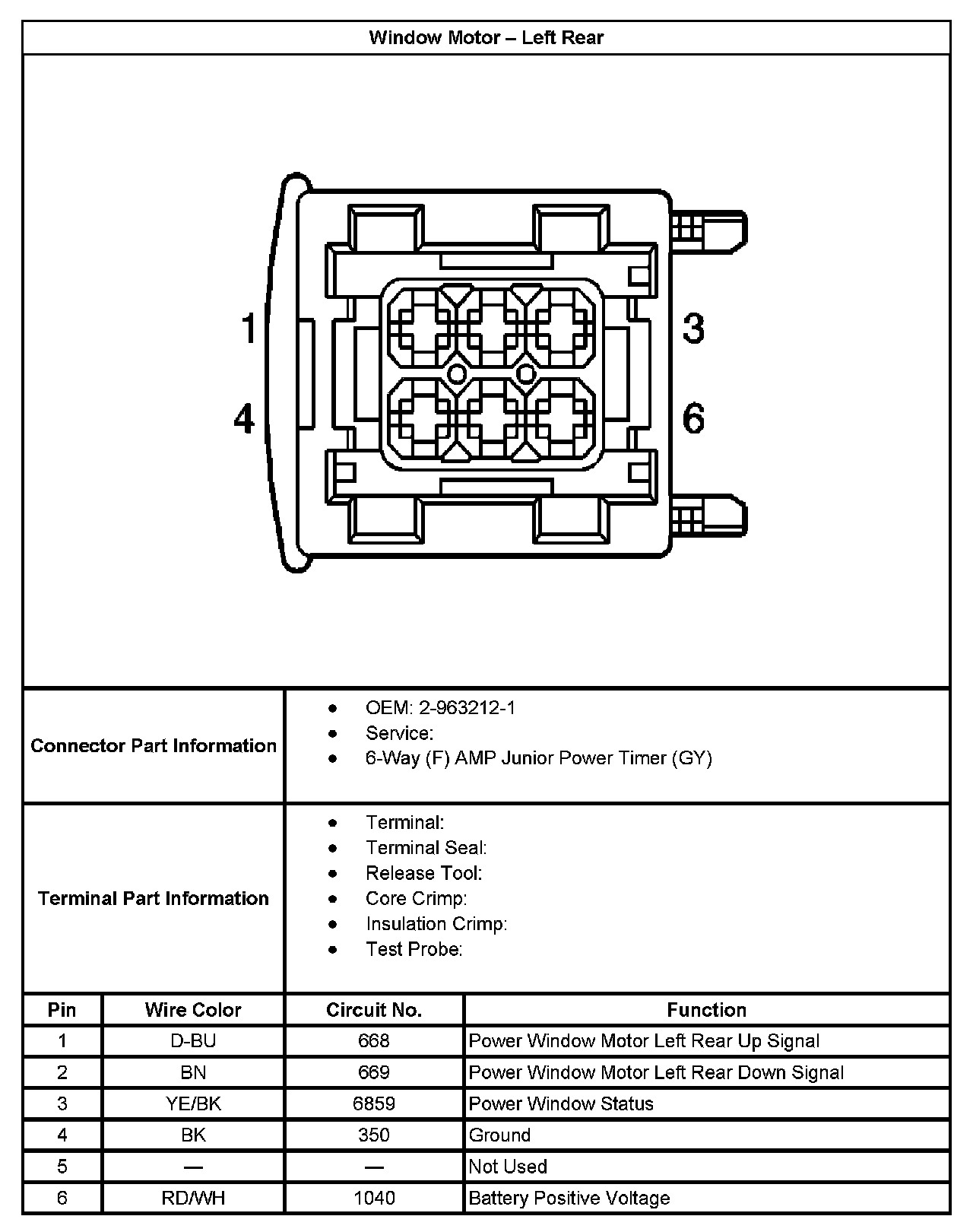

Window Motor - Left Rear:

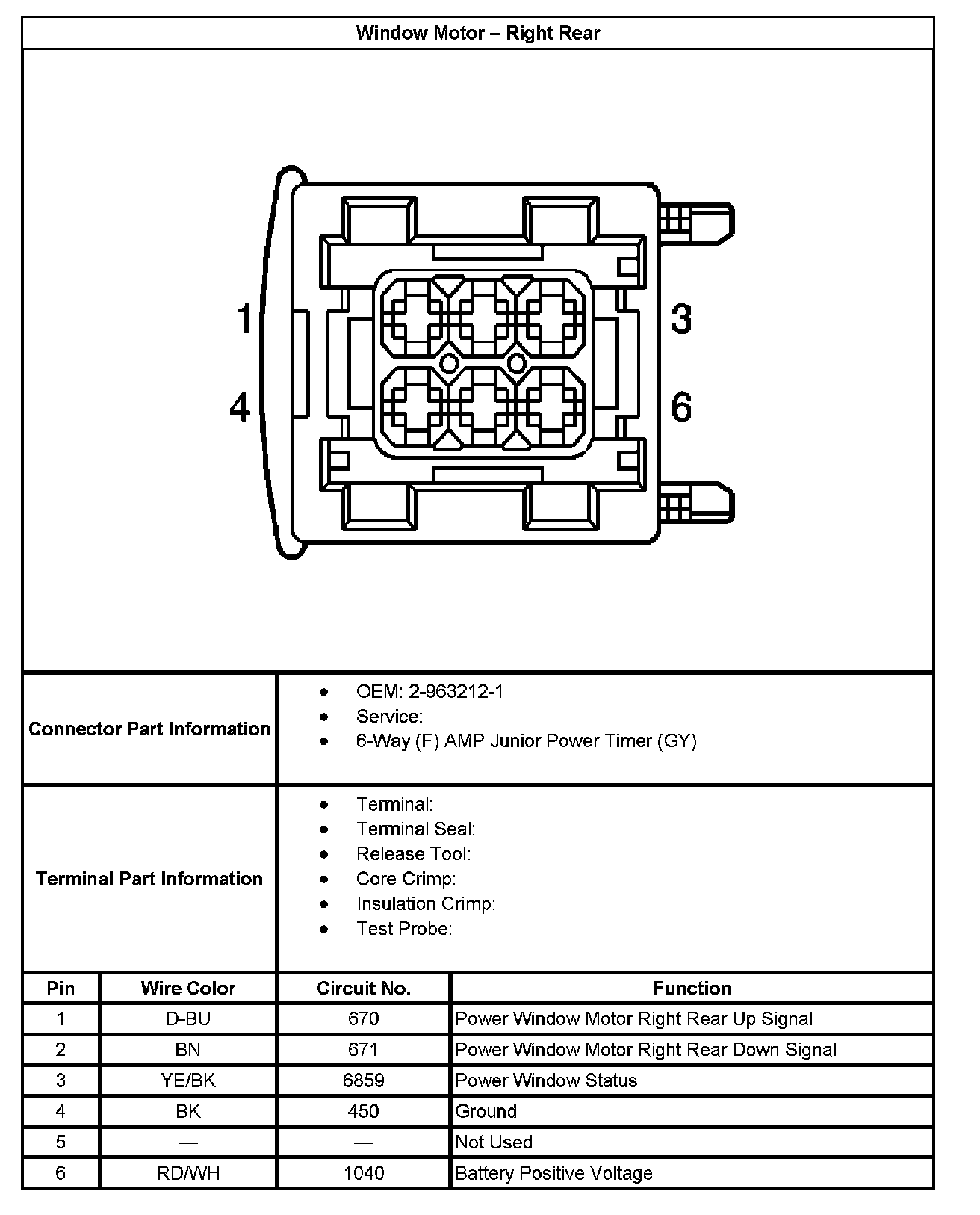

Window Motor - Right Rear:
