Home >> Cadillac >> 2005 >> STS V6-3.6L VIN 7 >> Repair and Diagnosis >> Diagrams >> Connector Views >> SP200 - SP299

SP200 - SP299

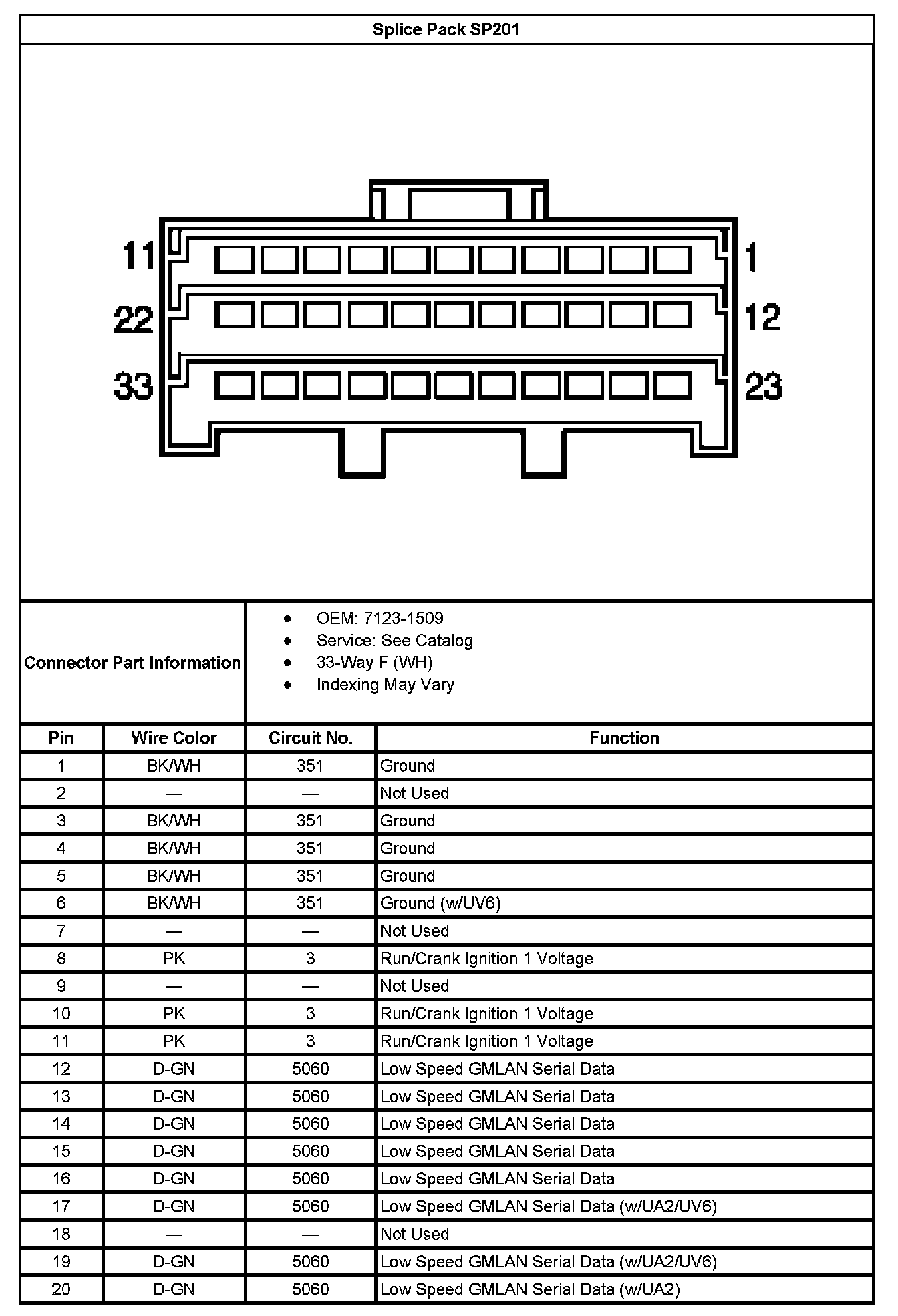

Splice Pack SP201 Part 1:

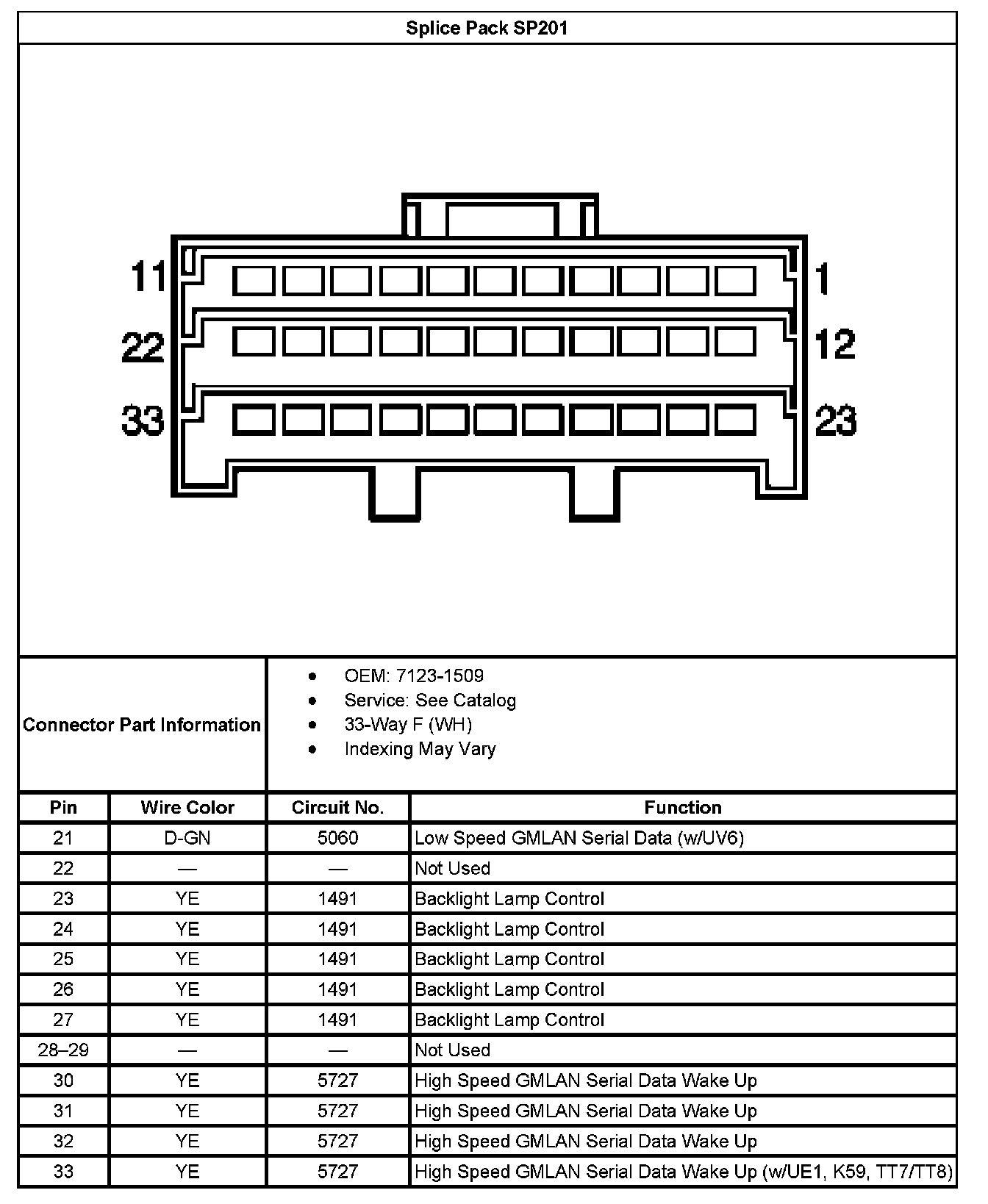

Splice Pack SP201 Part 2:
