Power Seat Motor Position Sensor
Power Seat Motor Position Sensor

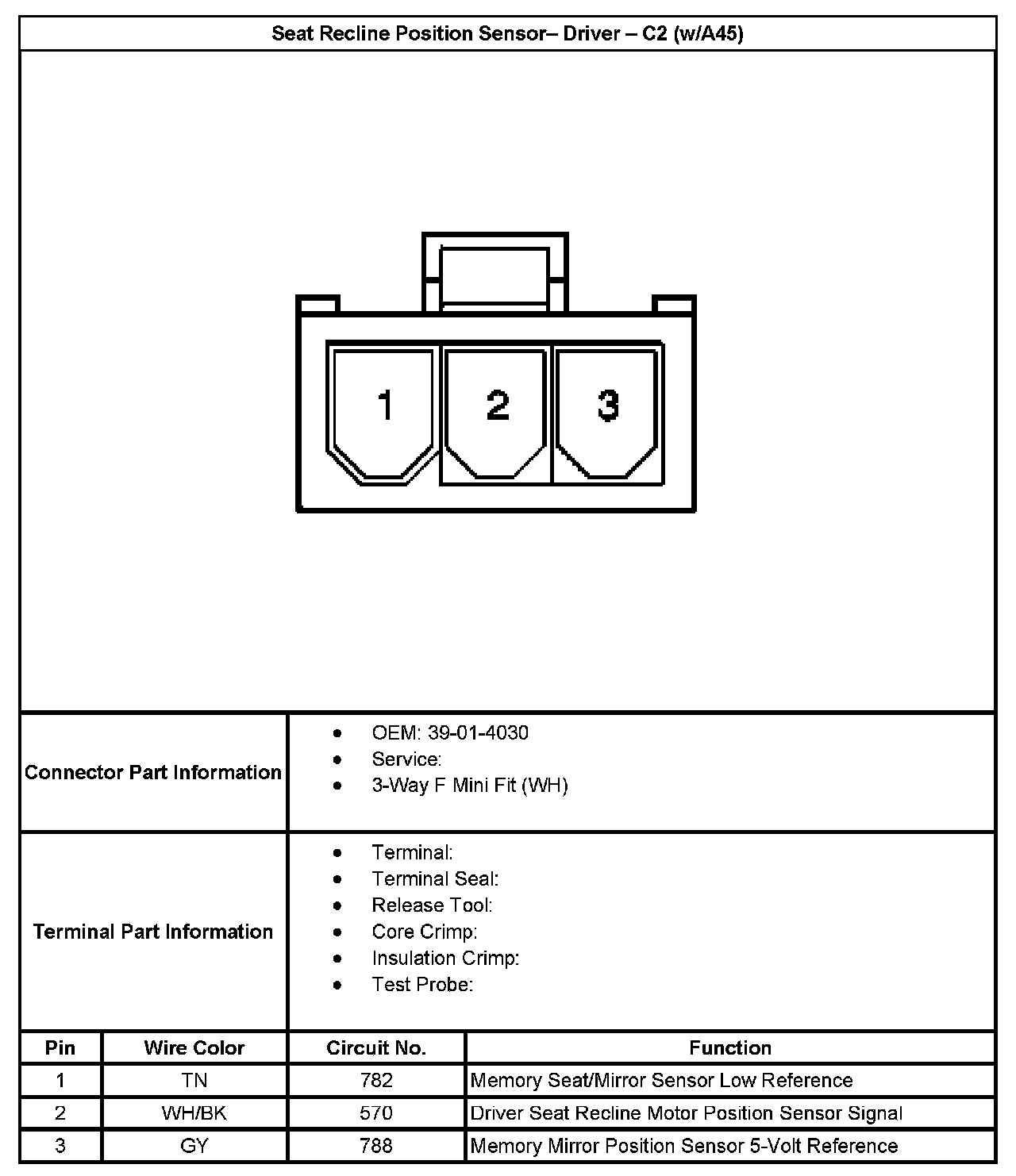

Seat Recline Position Sensor - Driver - C2 (With RPO Code A45):
