Home >> Cadillac >> 2005 >> STS V6-3.6L VIN 7 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Speaker >> Rear Console

Rear Console

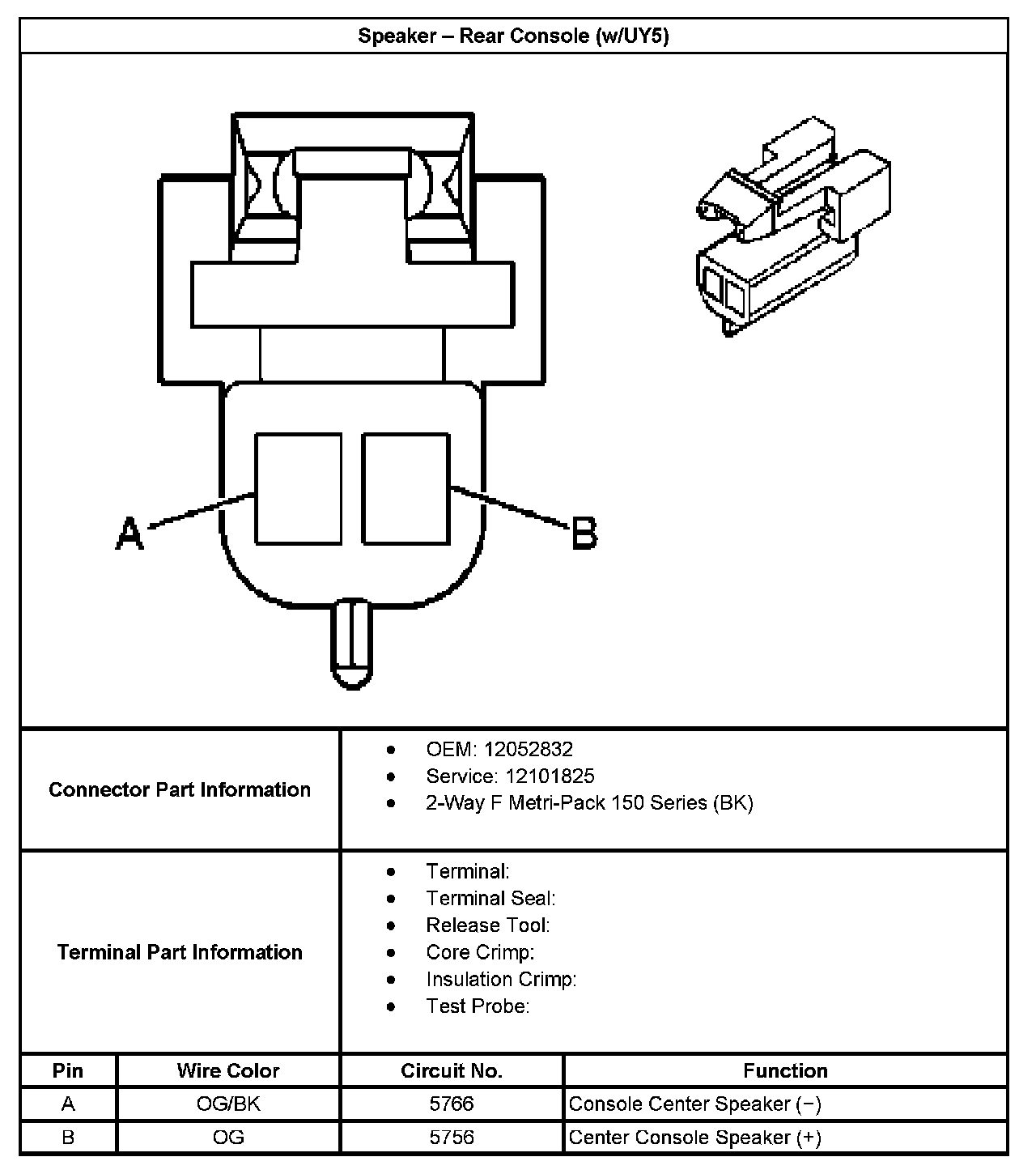

Speaker - Rear Console (With RPO Code UY5):
