Steering Wheel Heater Control Module

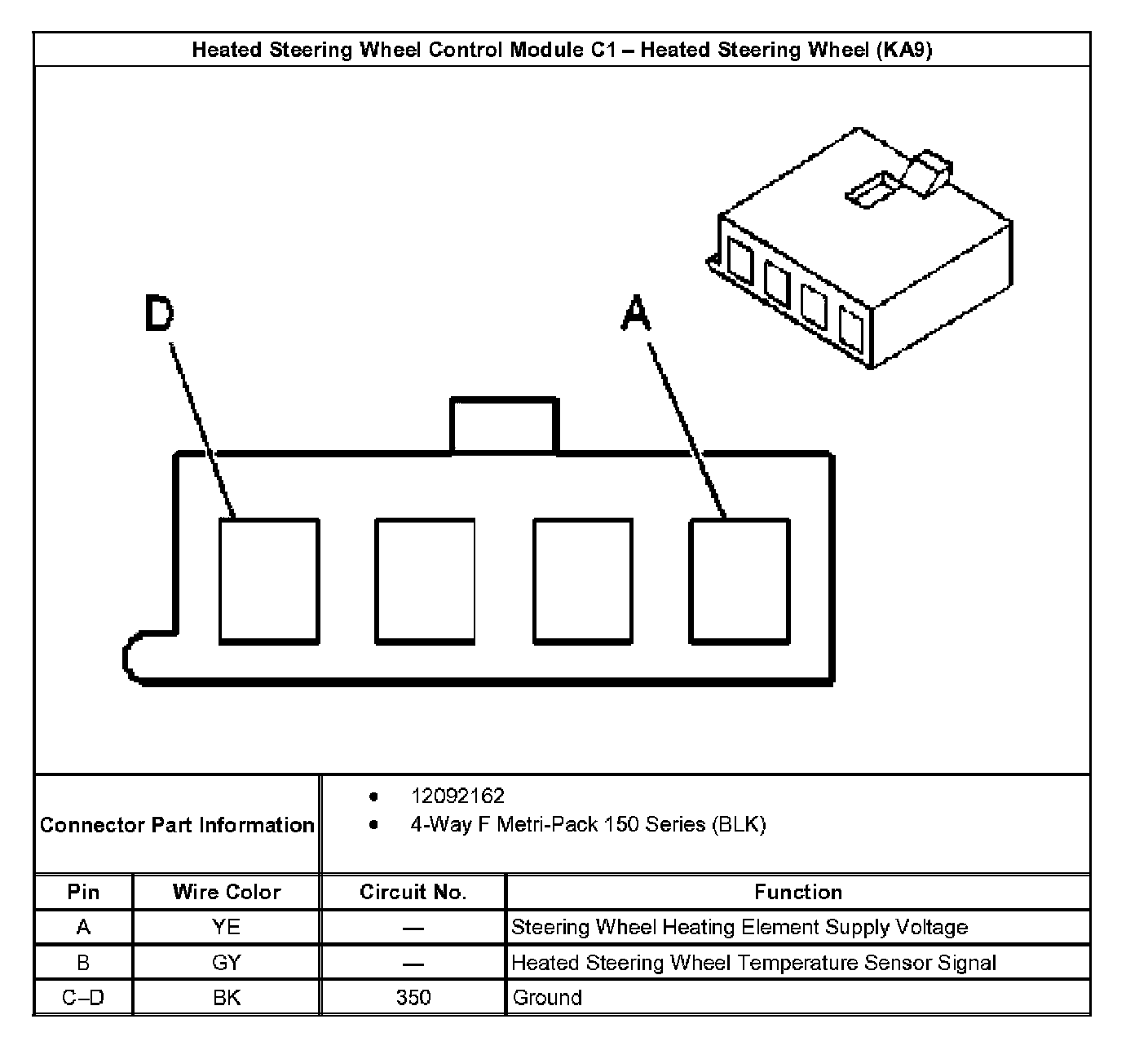

Heated Steering Wheel Control Module C1 - Heated Steering Wheel (KA9):

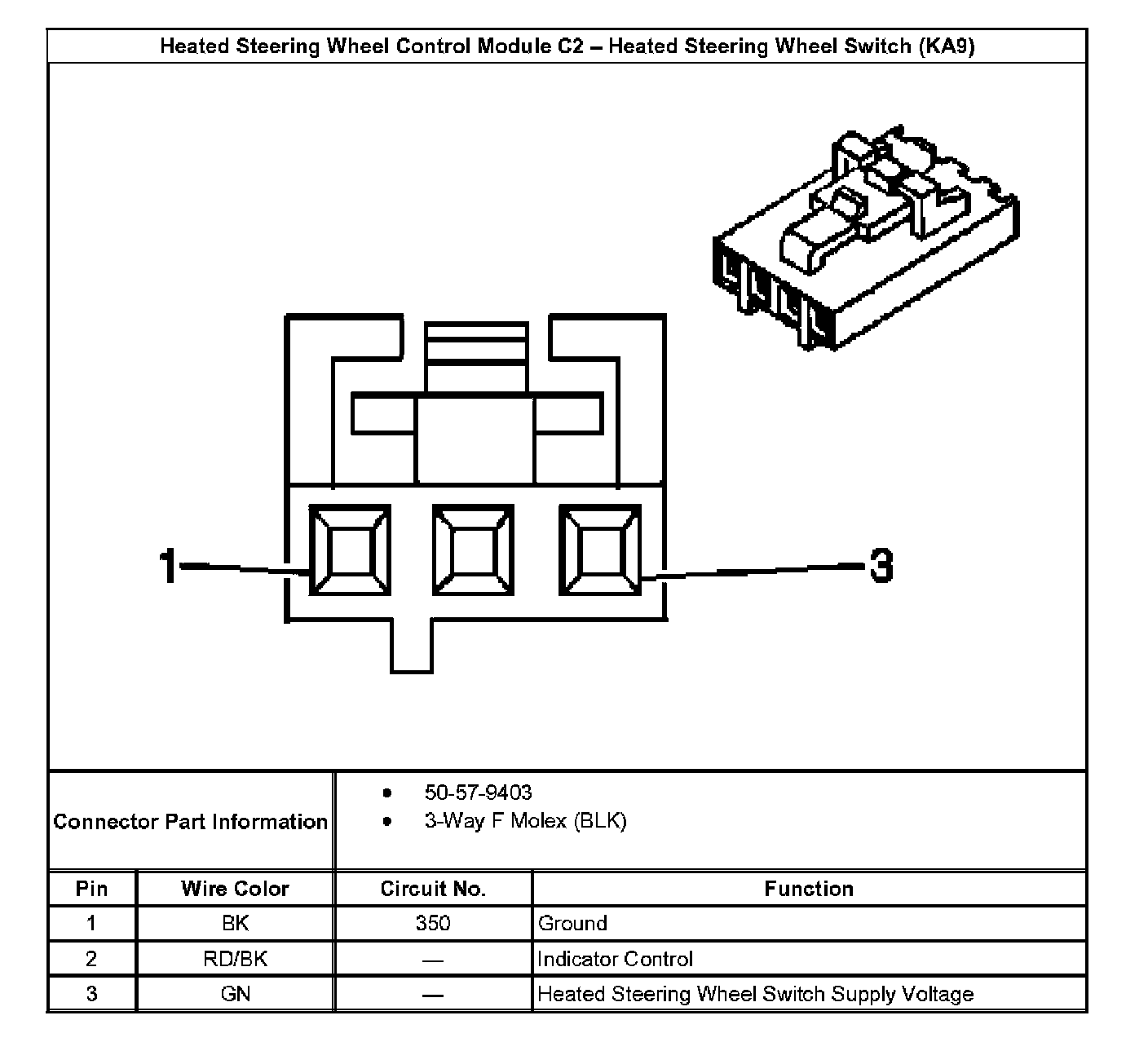

Heated Steering Wheel Control Module C2 - Heated Steering Wheel Switch (KA9):

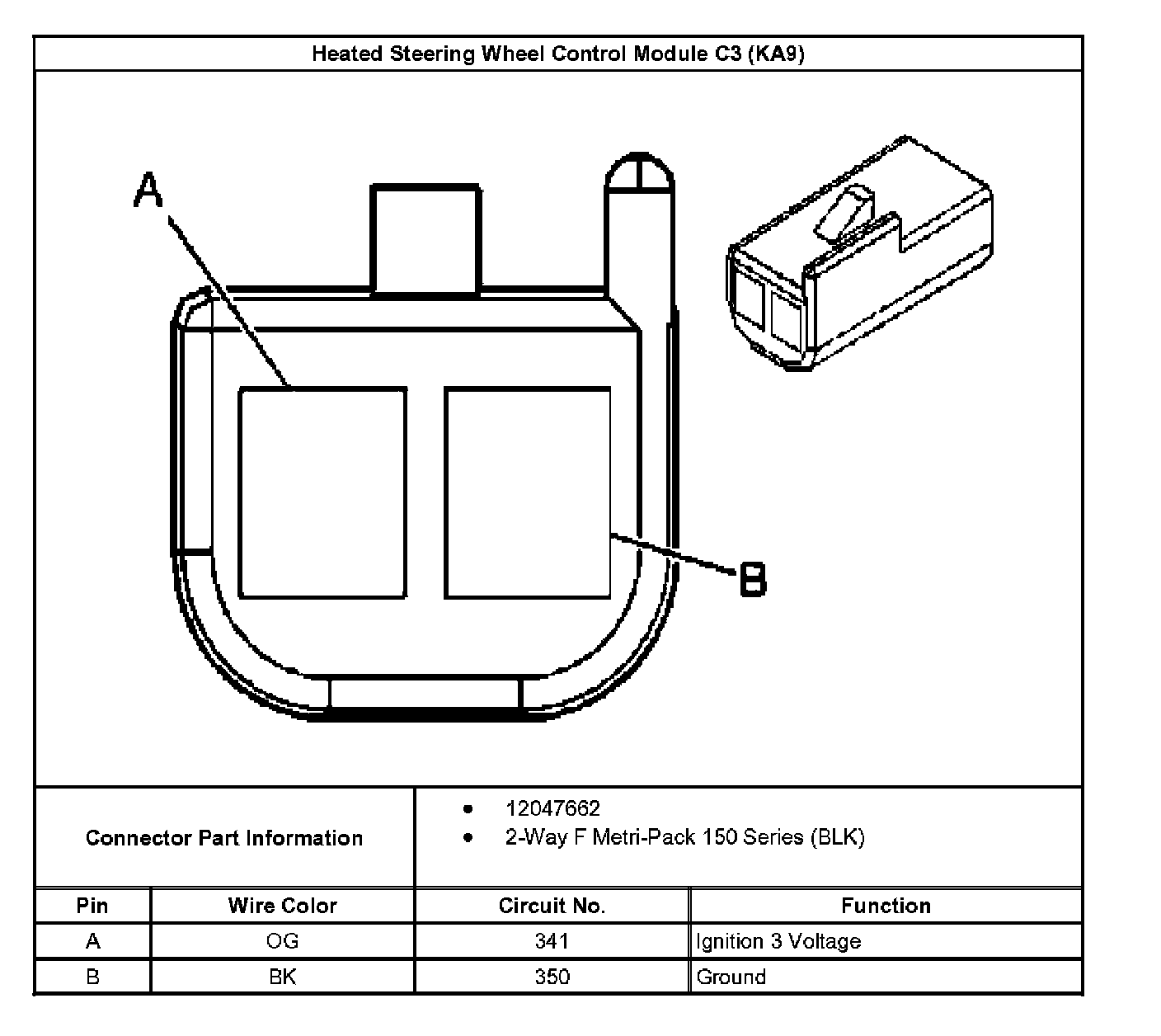

Heated Steering Wheel Control Module C3 (KA9):
