Information Bus

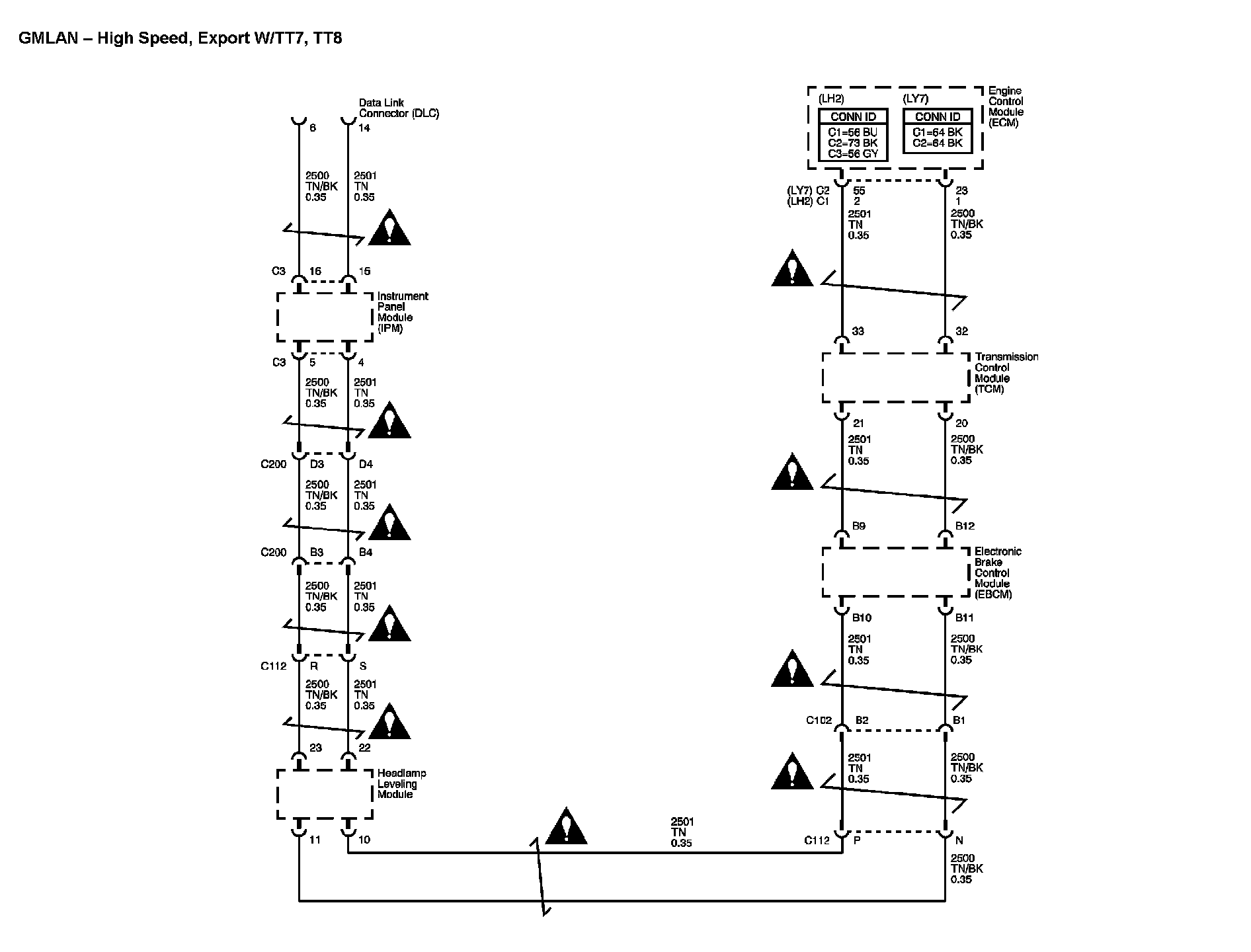

Data Link Connector (DLC) Diagrams 1:

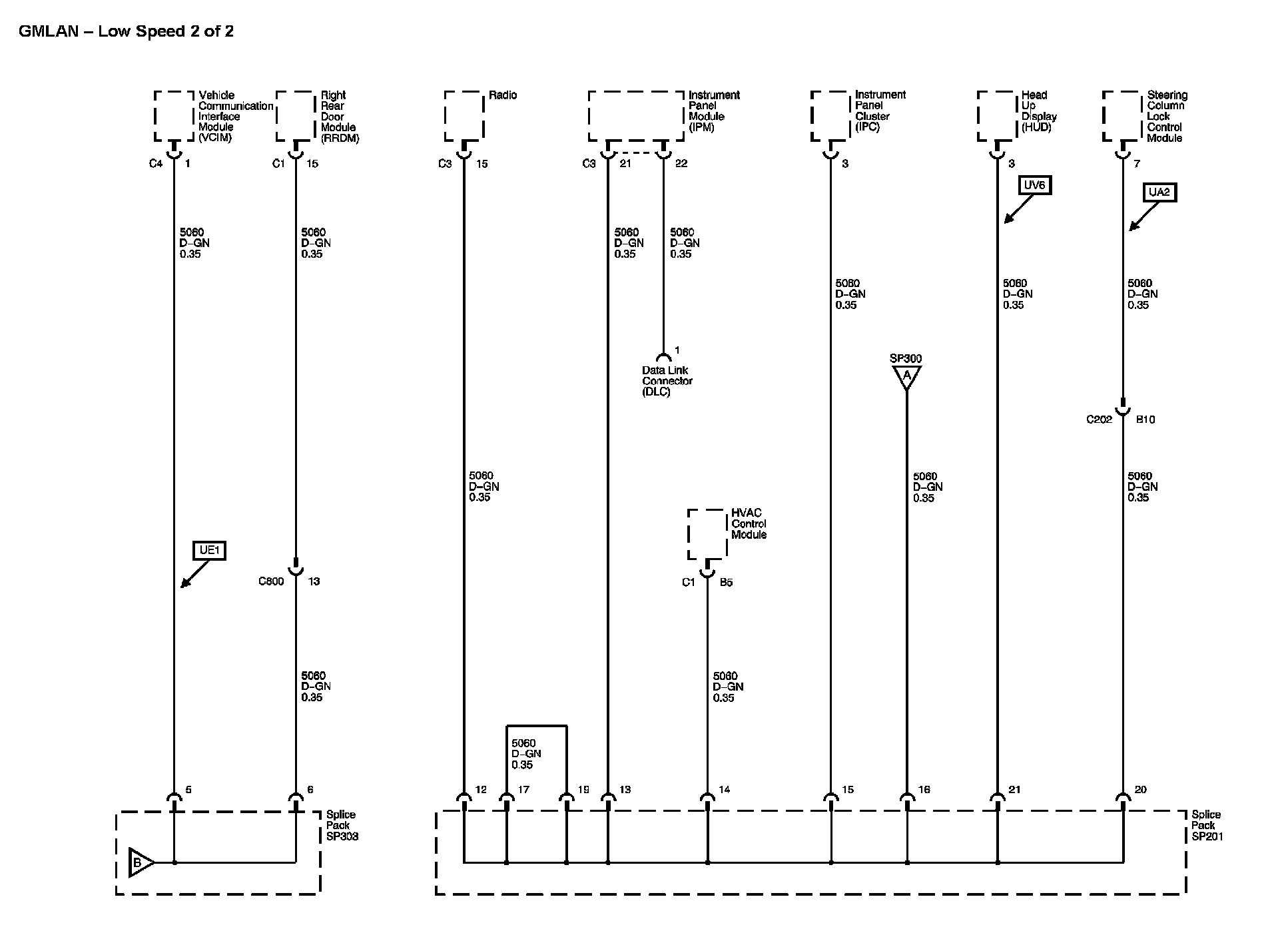

Data Link Connector (DLC) Diagrams 2:

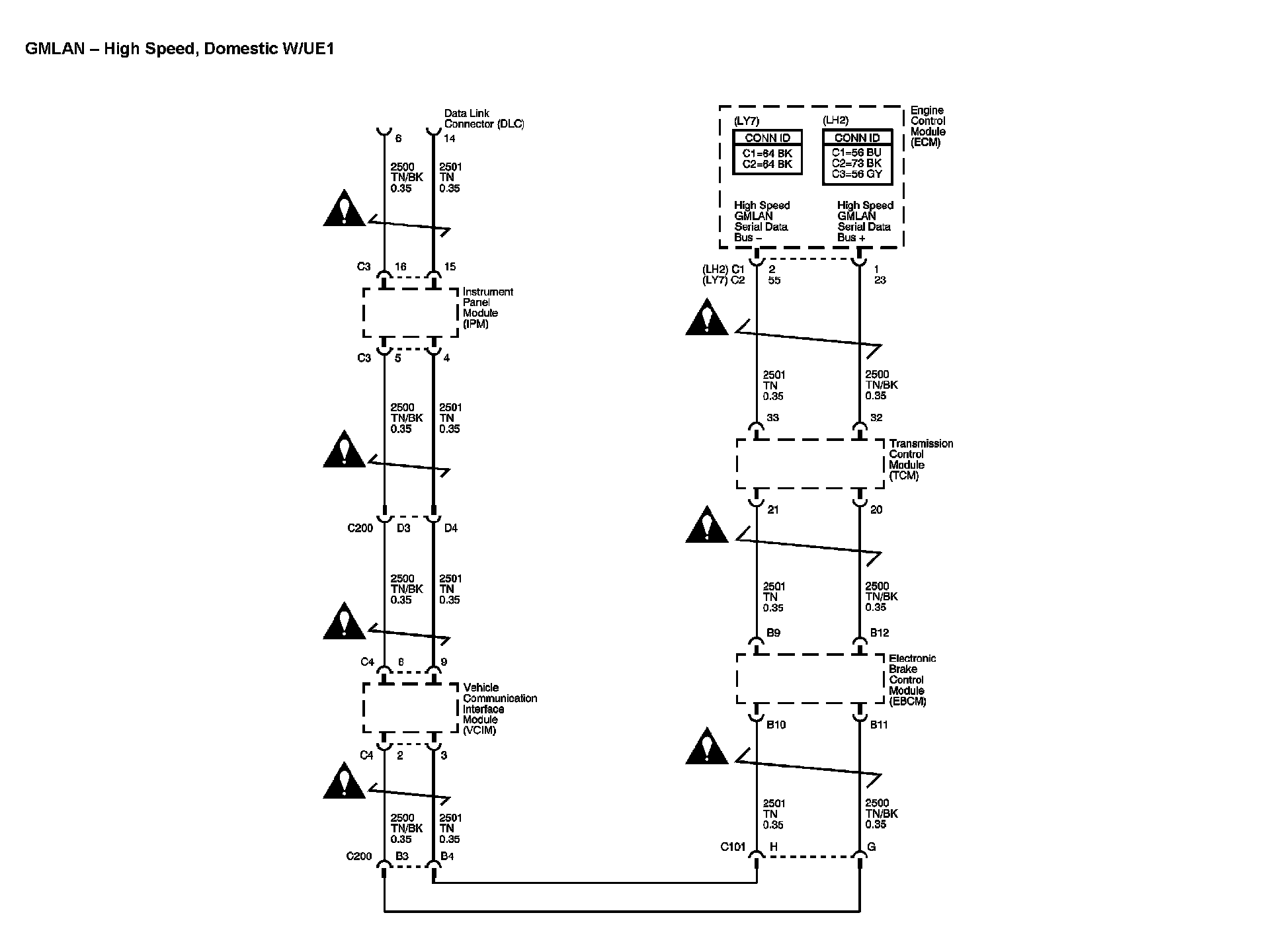

Data Link Connector (DLC) Diagrams 3:

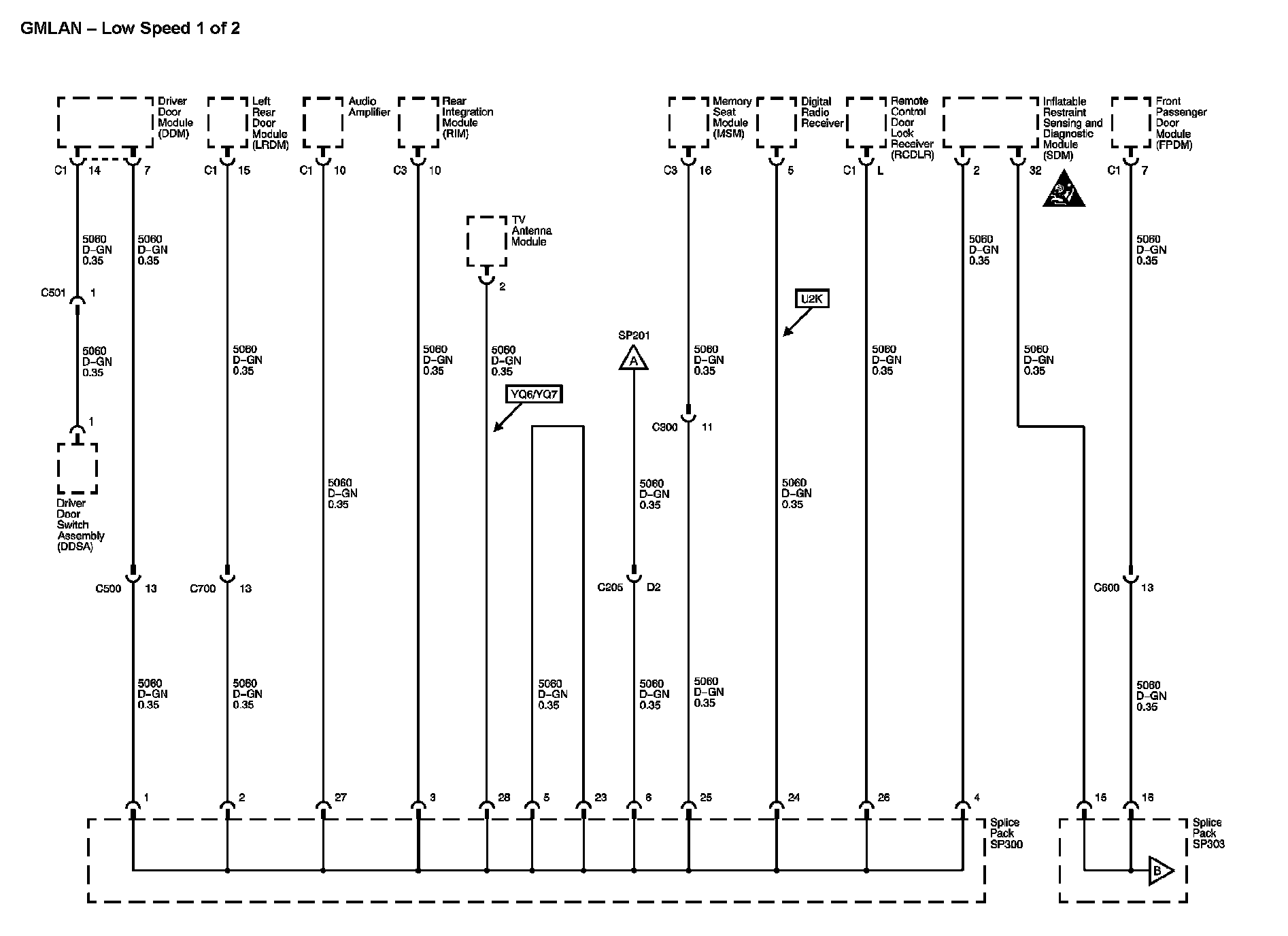

Data Link Connector (DLC) Diagrams 4:

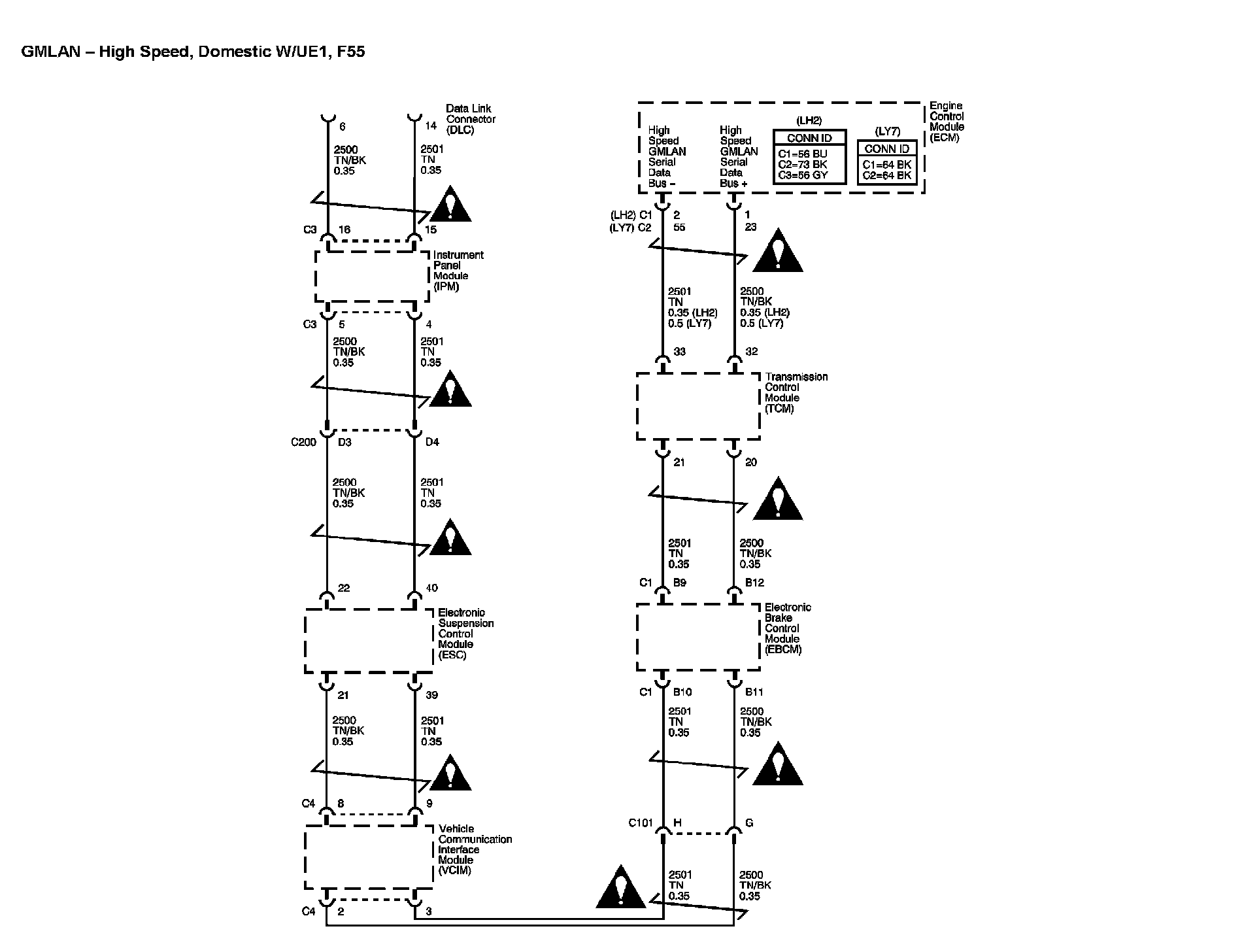

Data Link Connector (DLC) Diagrams 5:

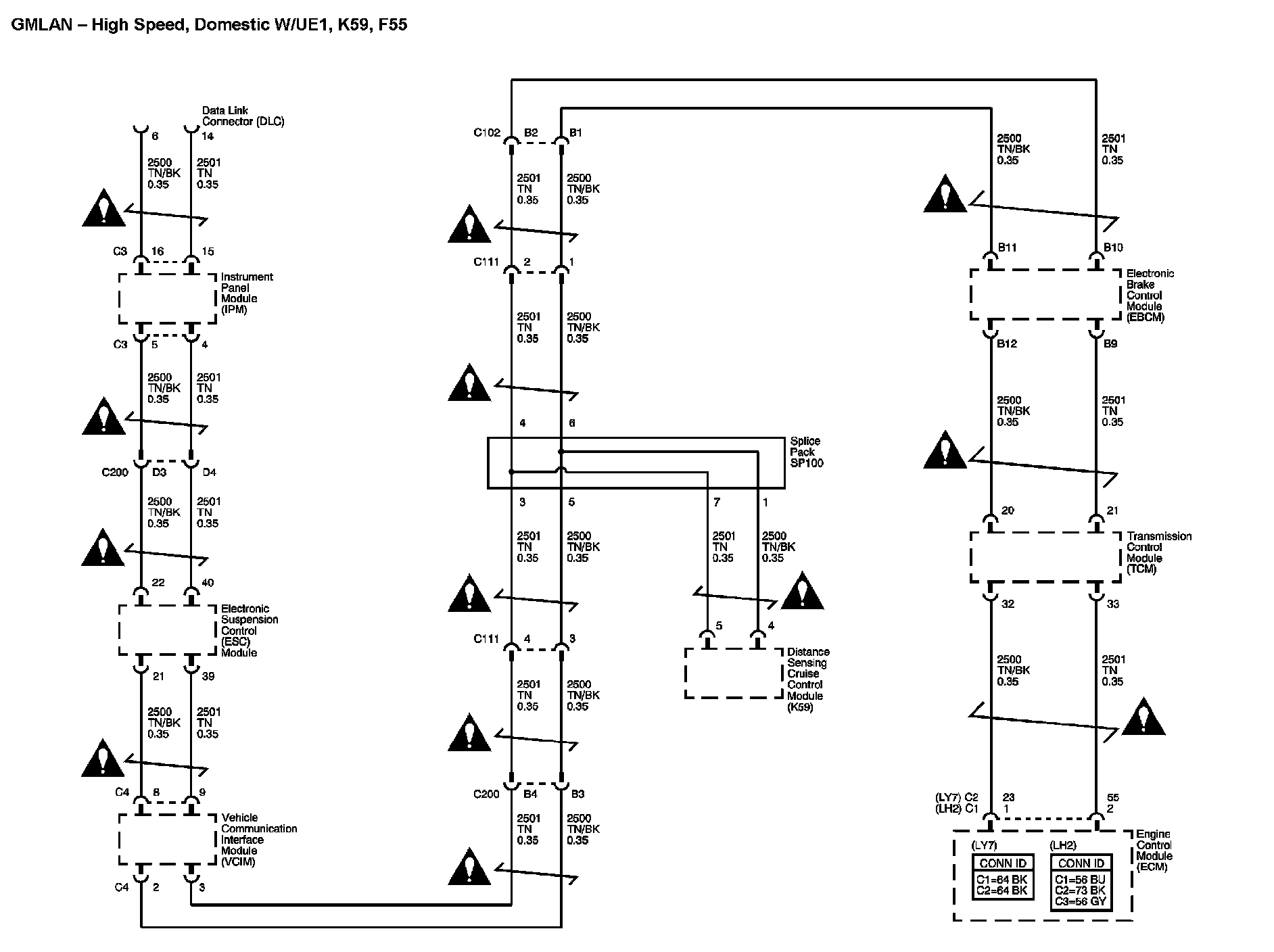

Data Link Connector (DLC) Diagrams 6:

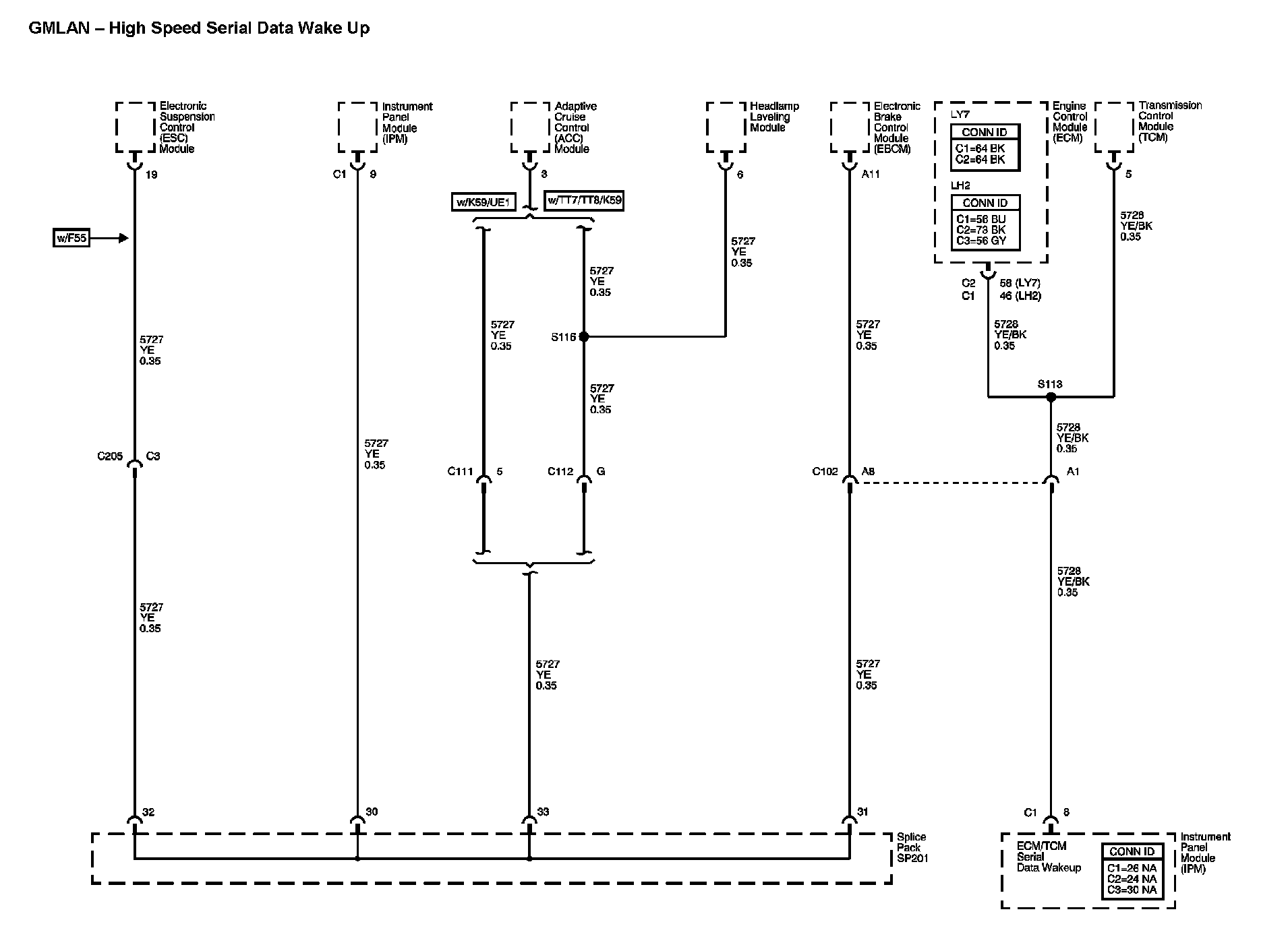

Data Link Connector (DLC) Diagrams 7:

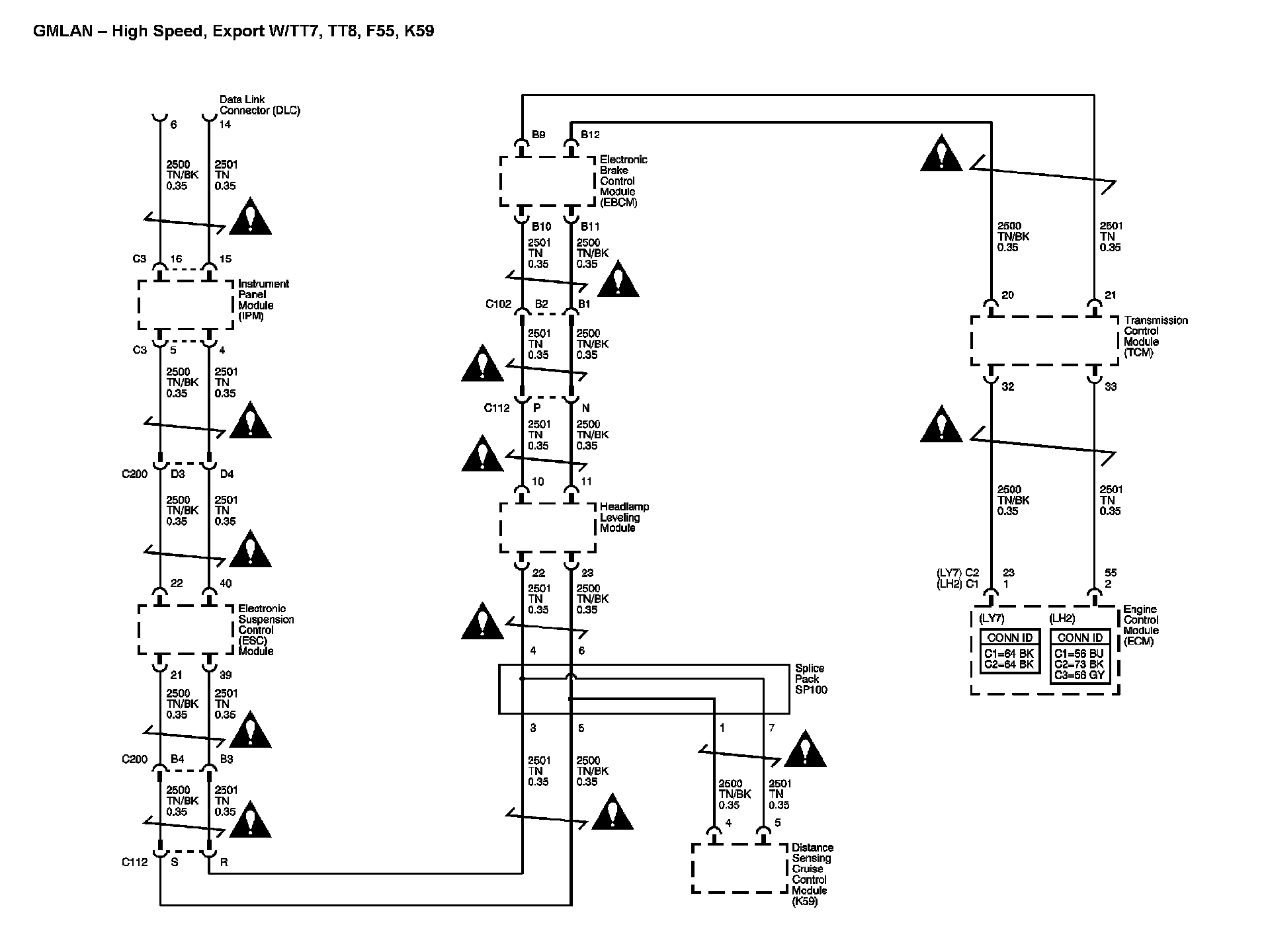

Data Link Connector (DLC) Diagrams 8:

Data Link Connector (DLC) Diagrams 9:

Location: The locations for the Connectors, Grounds, Splices, and grommets shown within these diagrams can be found via their numbers at vehicle locations. Locations
