Cadillac
>>
2005
>>
STS V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Fuse Block - Left Rear
Fuse Block - Left Rear

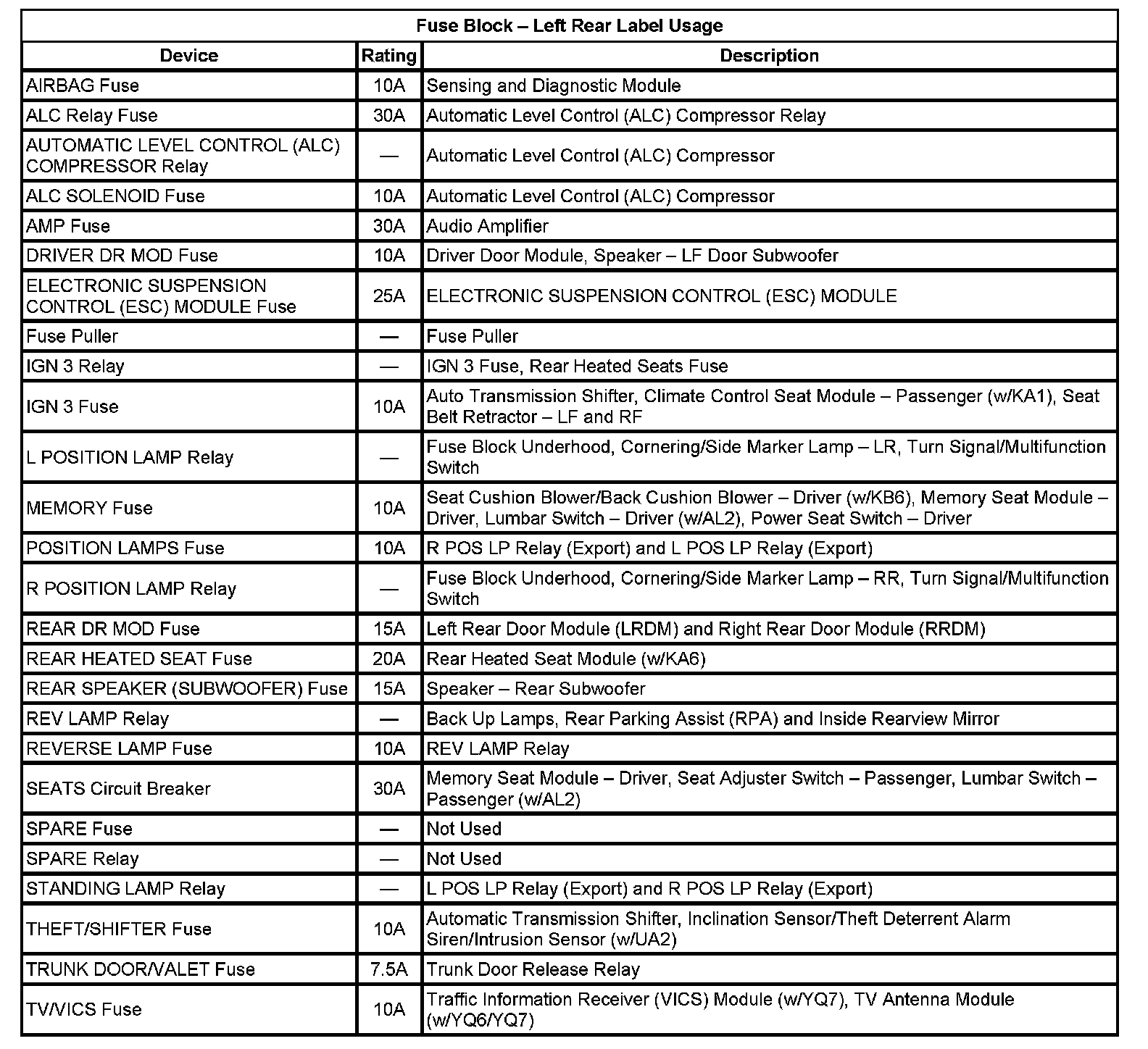

Application Table:

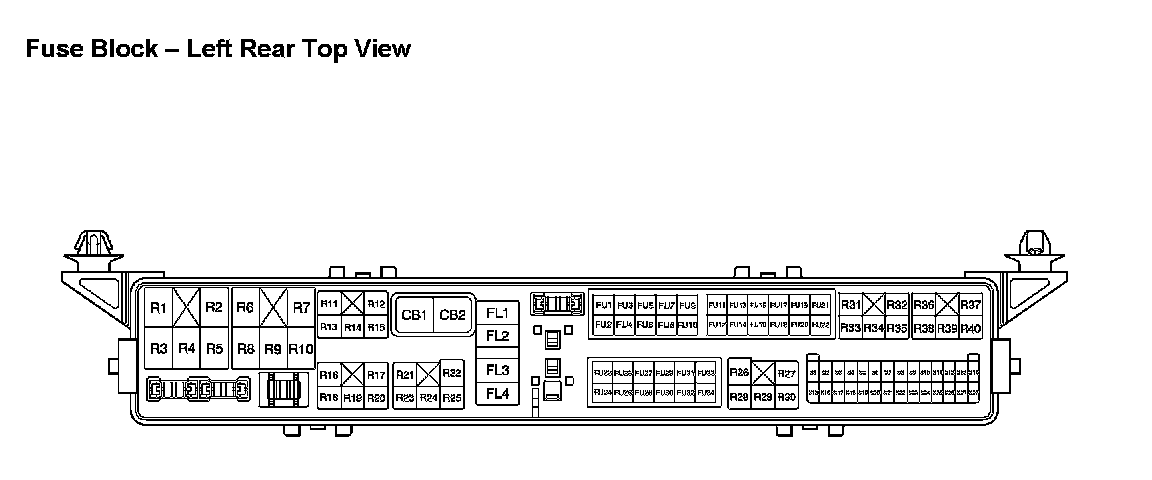

Location View:
Location View:
