Home >> Cadillac >> 2005 >> STS V6-3.6L VIN 7 >> Repair and Diagnosis >> Power and Ground Distribution >> Locations >> I/P Views

I/P Views

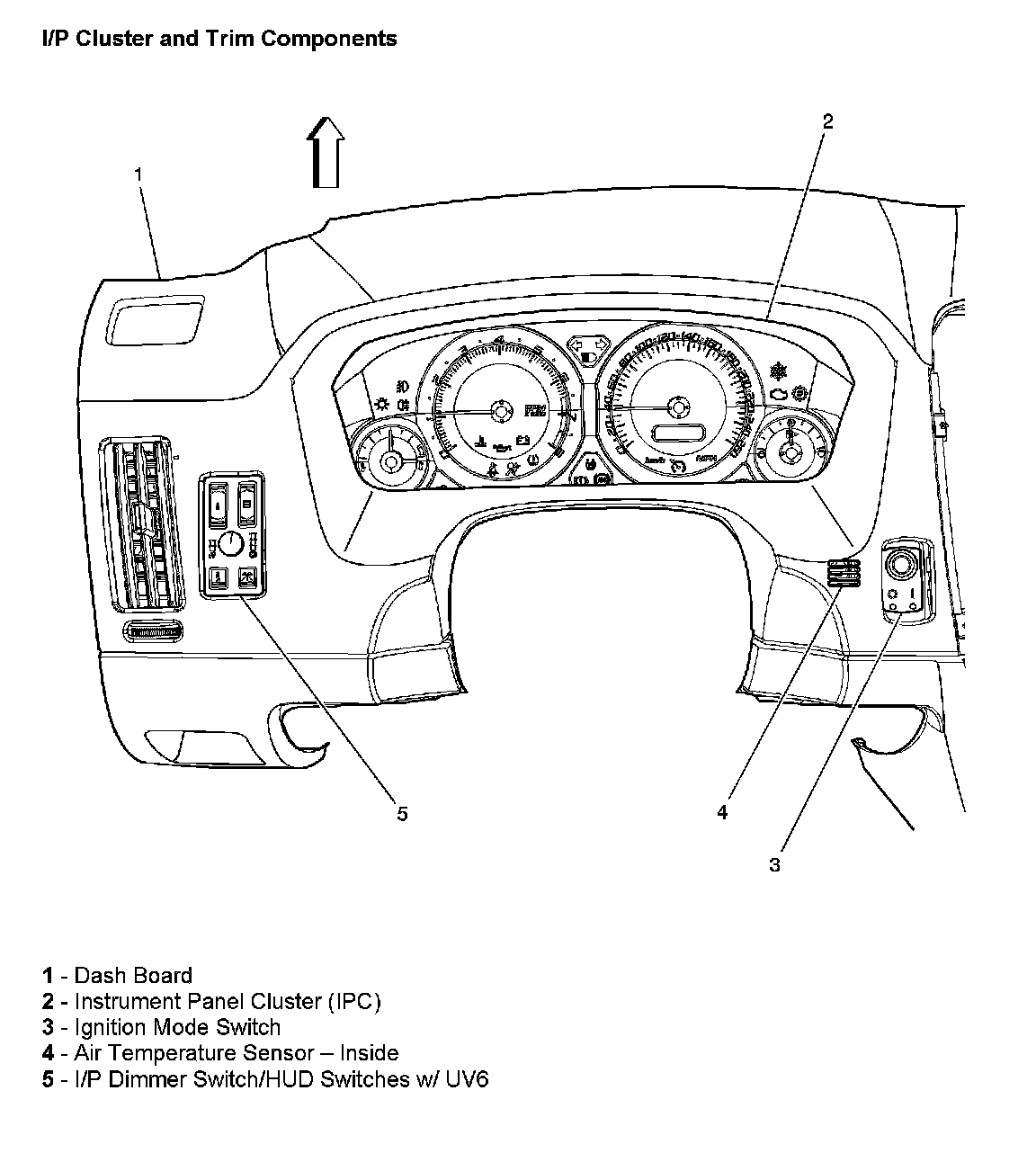

I/P Cluster And Trim Components:
