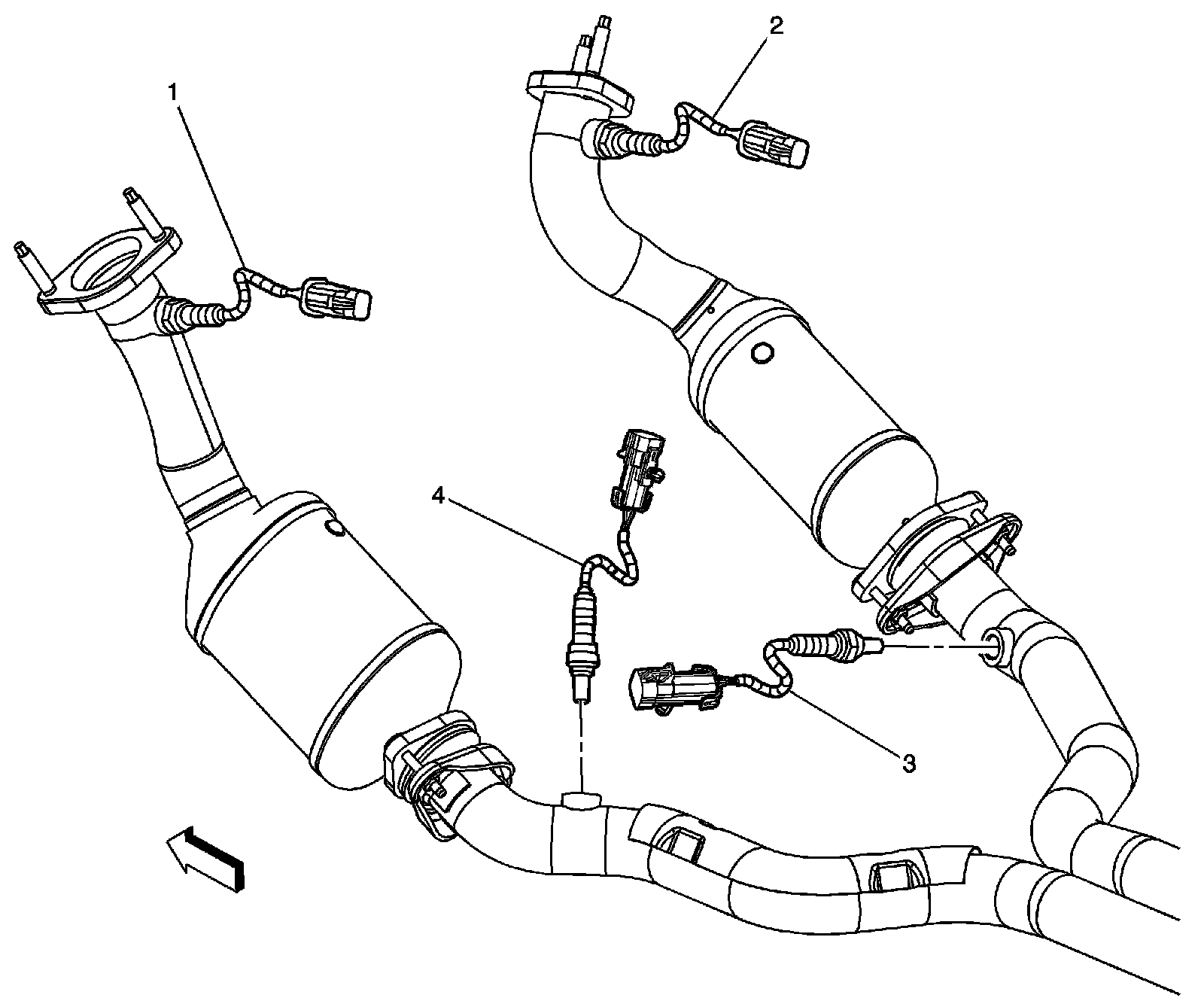

Oxygen Sensor: Locations
1.
HO2S - Bank 2 Sensor 1
2.
HO2S - Bank 1 Sensor 1
3.
HO2S - Bank 1 Sensor 2
4.
HO2S - Bank 2 Sensor 2
