Shift Solenoid, A/T

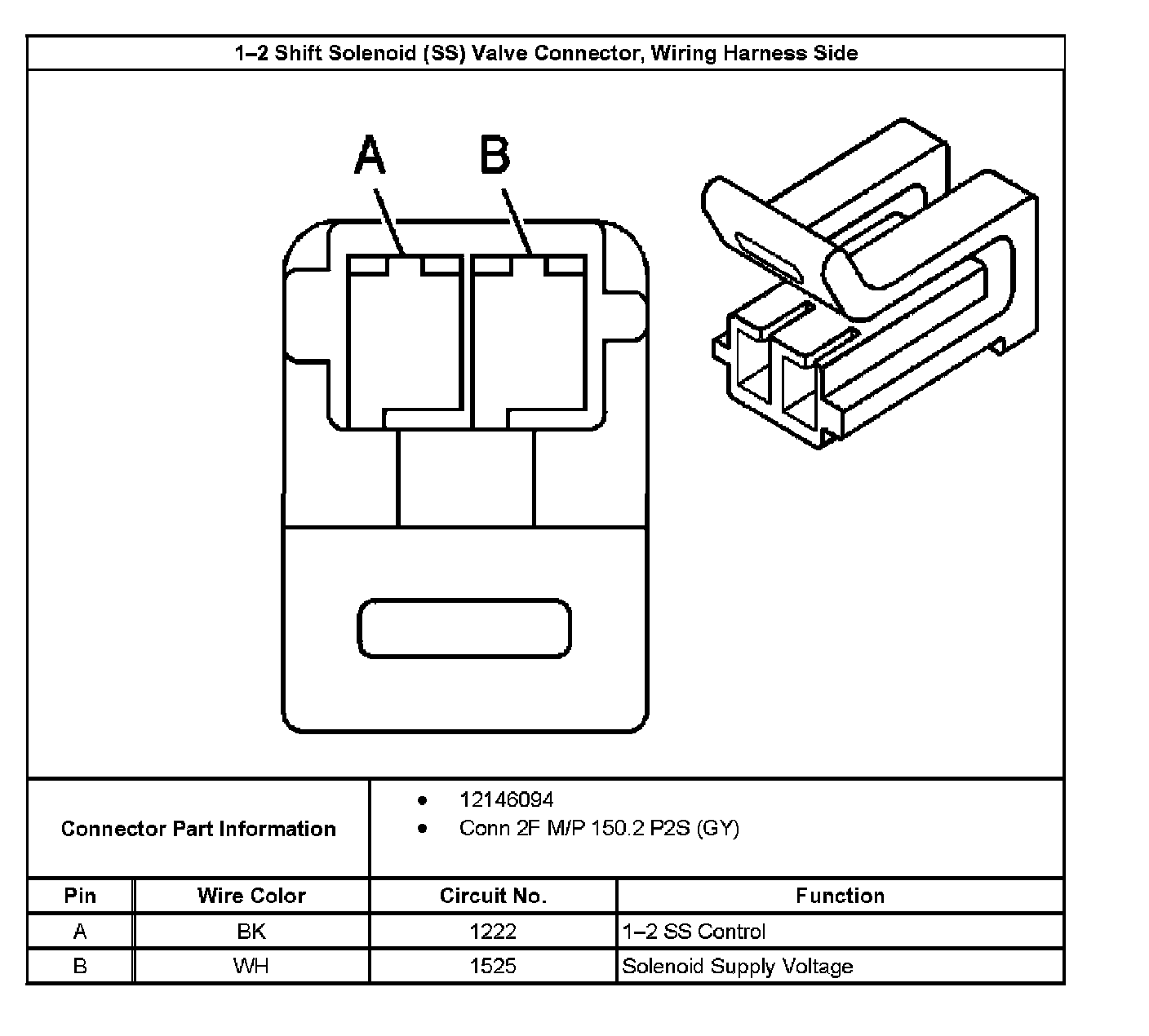

1-2 Shift Solenoid (SS) Valve Connector, Wiring Harness Side (5L40-E):



2-3 Shift Solenoid (SS) Valve Connector, Wiring Harness Side (5L40-E):

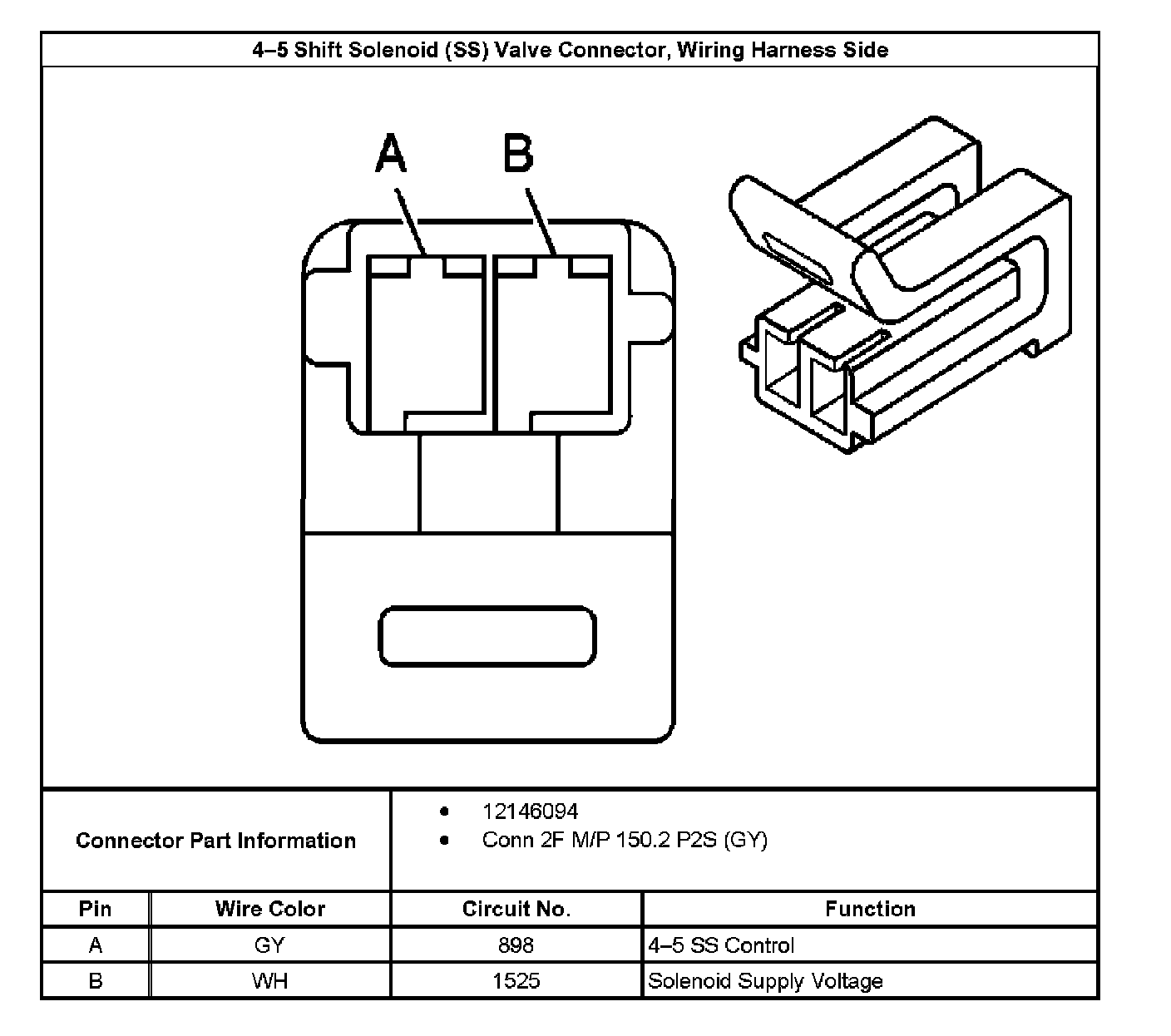

4-5 Shift Solenoid (SS) Valve Connector, Wiring Harness Side (5L40-E):

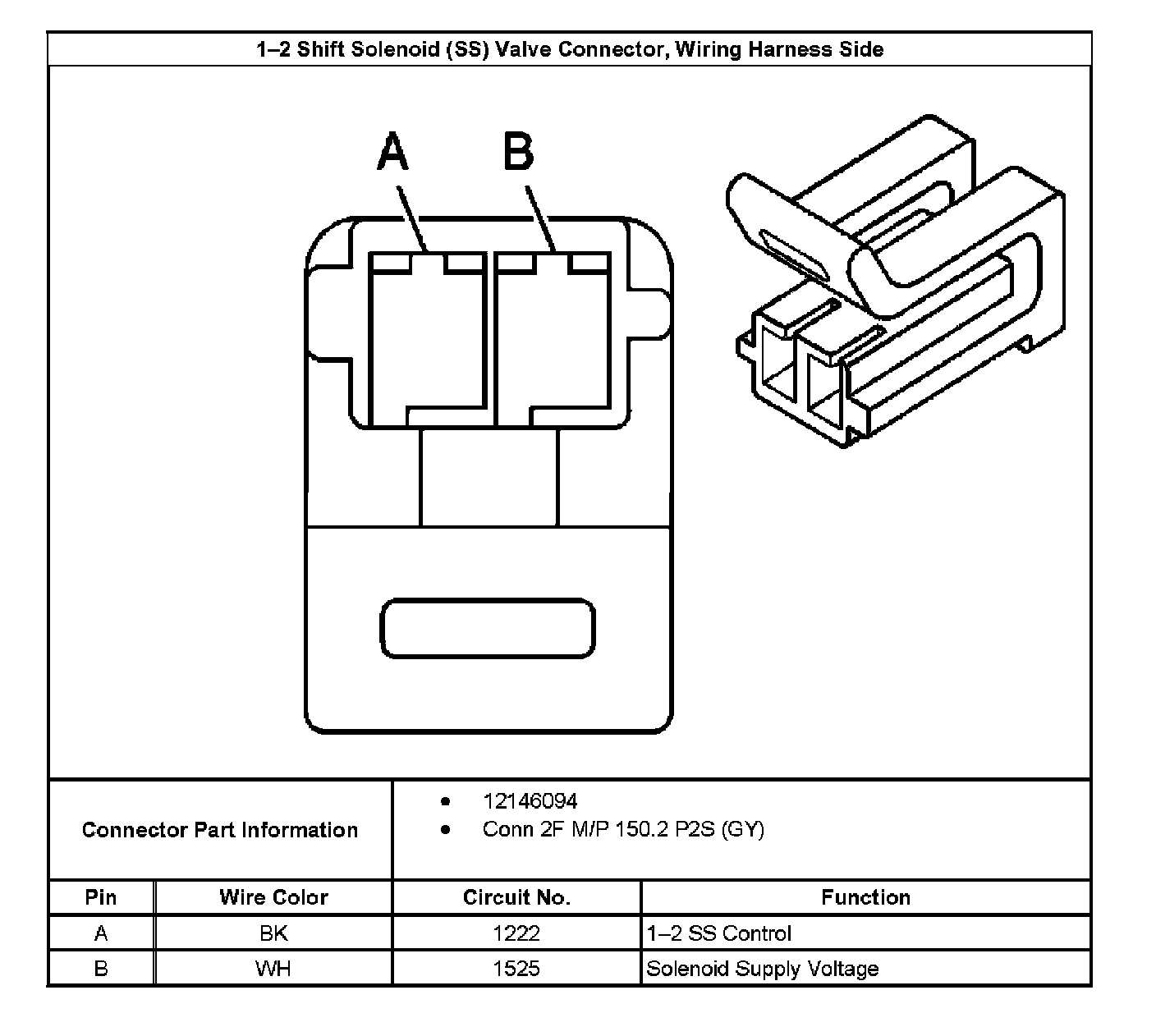

1-2 Shift Solenoid (SS) Valve Connector, Wiring Harness Side (5L50-E):



2-3 Shift Solenoid (SS) Valve Connector, Wiring Harness Side (5L50-E):



4-5 Shift Solenoid (SS) Valve Connector, Wiring Harness Side (5L50-E):
