Inflatable Restraint Steering Wheel Module

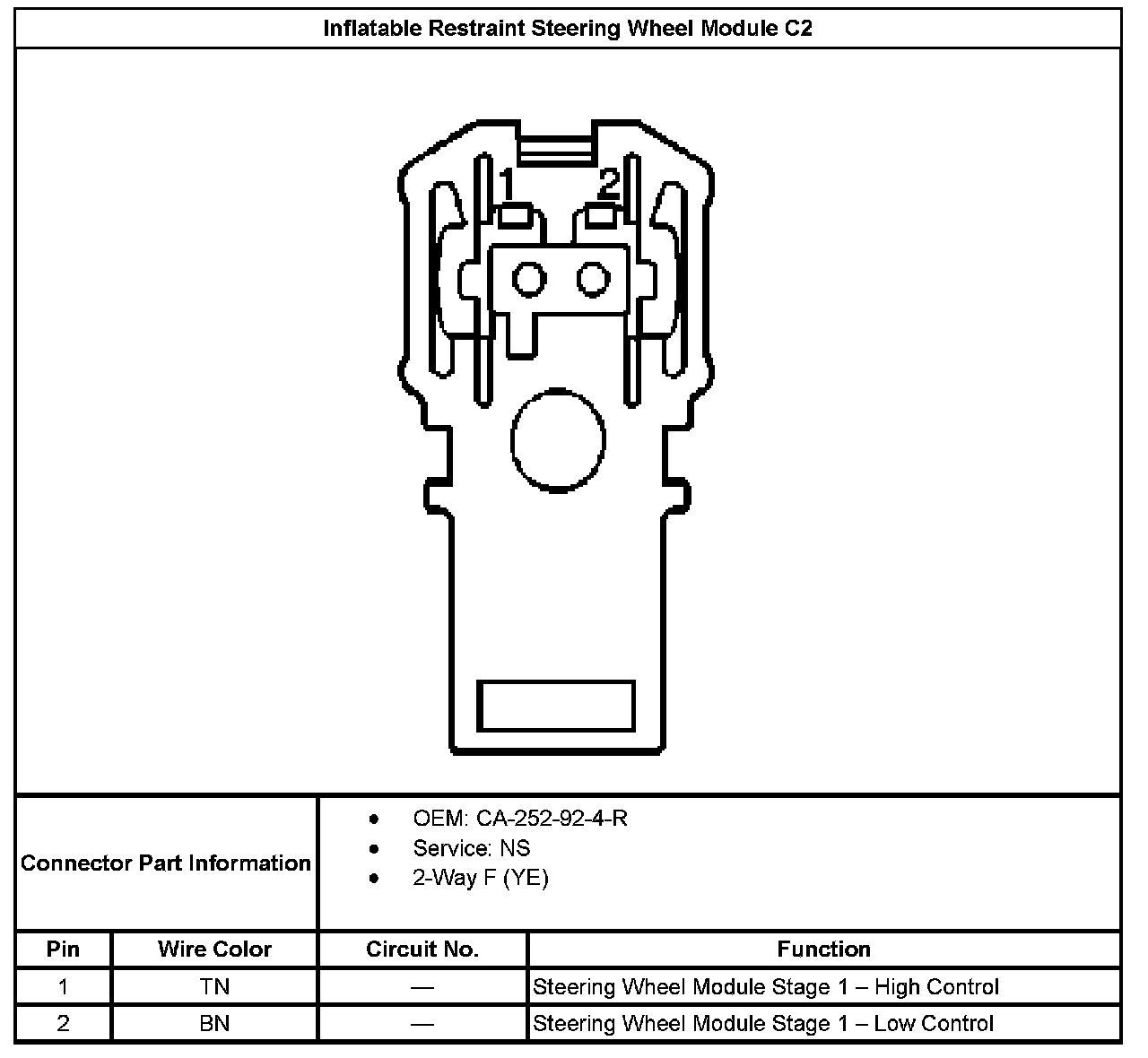

Inflatable Restraint Steering Wheel Module C2:

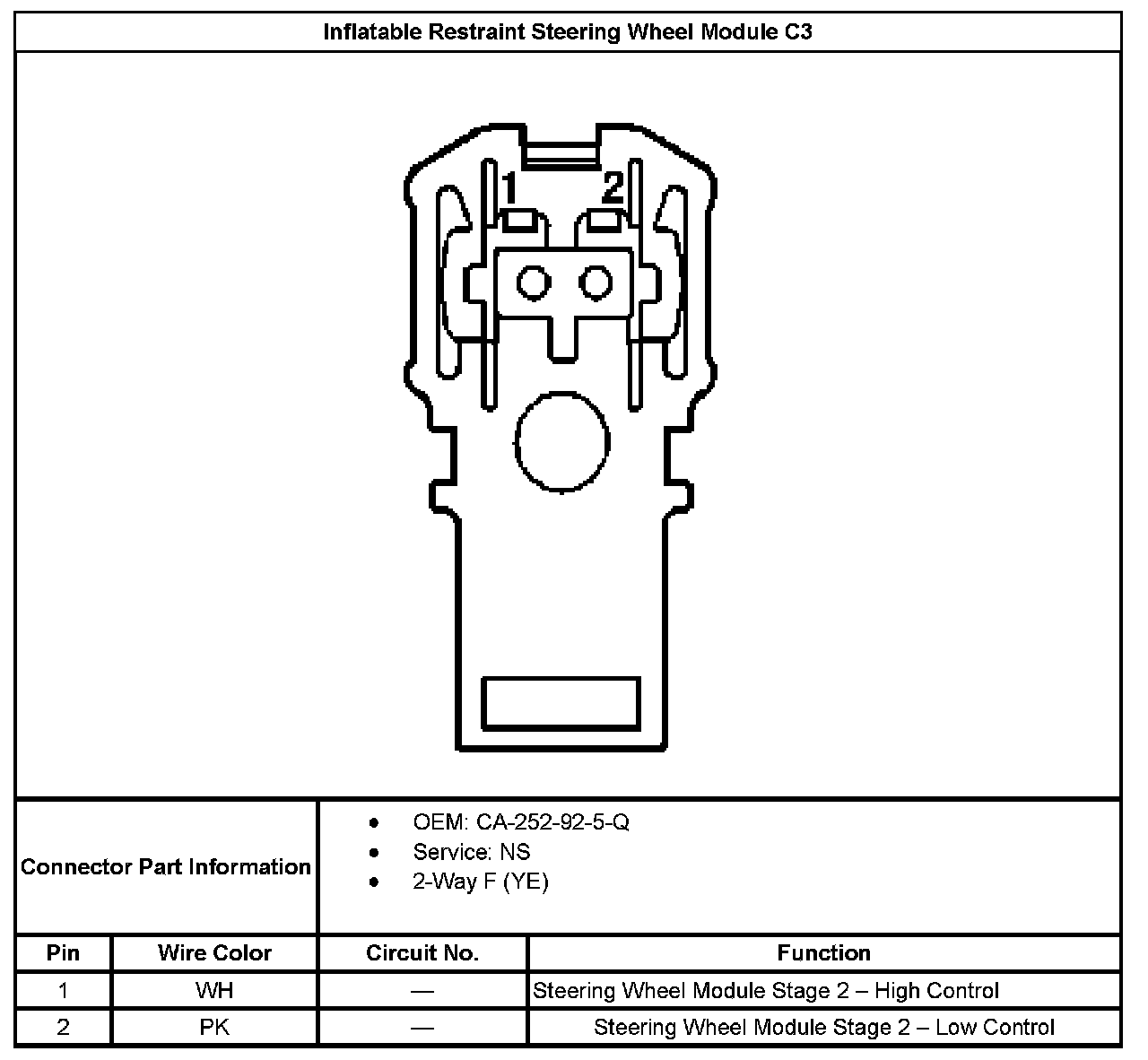

Inflatable Restraint Steering Wheel Module C3:
