Convertible Top Position Sensor / Switch
Convertible Top Position Sensor / Switch

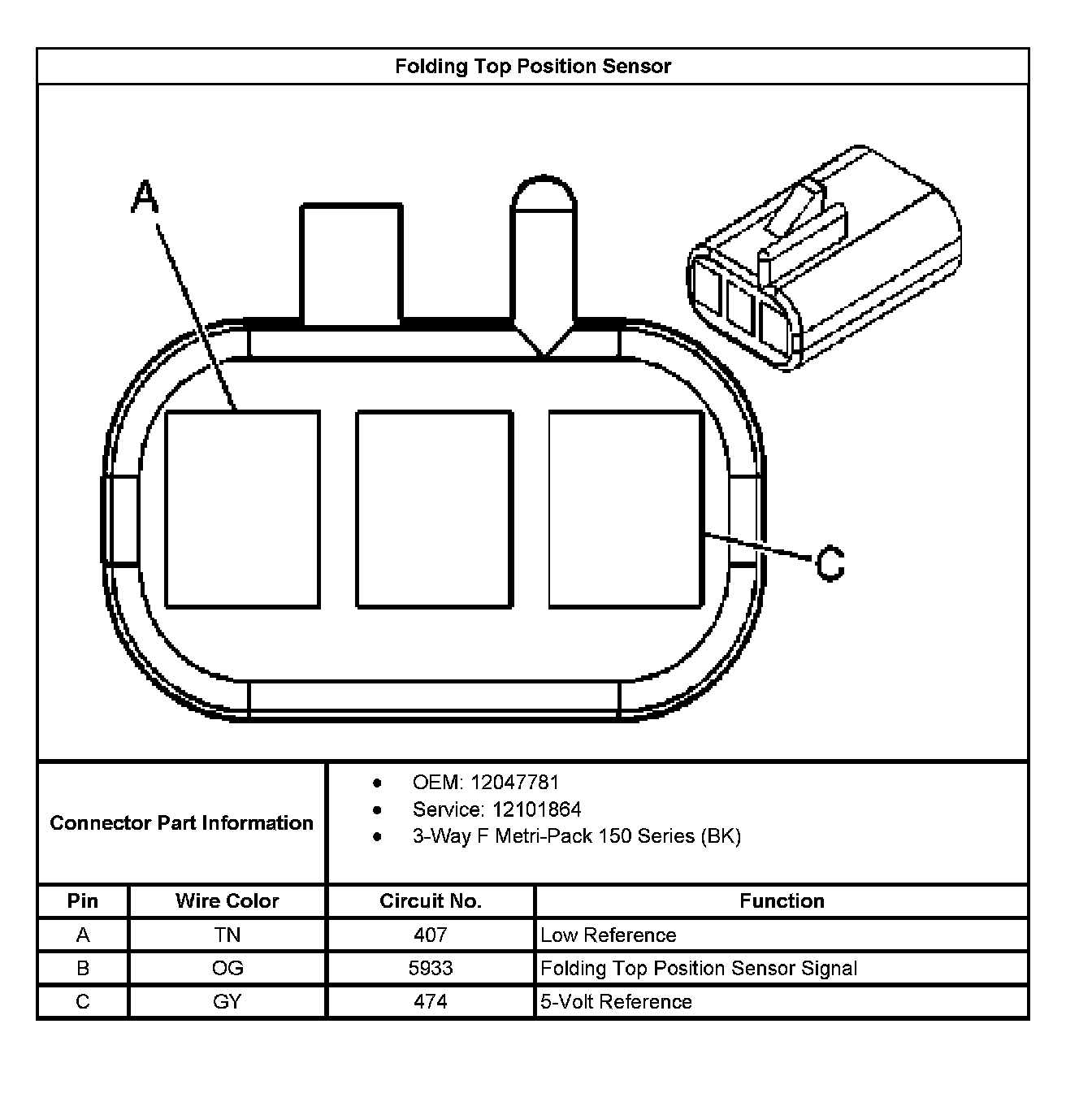

Folding Top Position Sensor:
