Seat Temperature Element

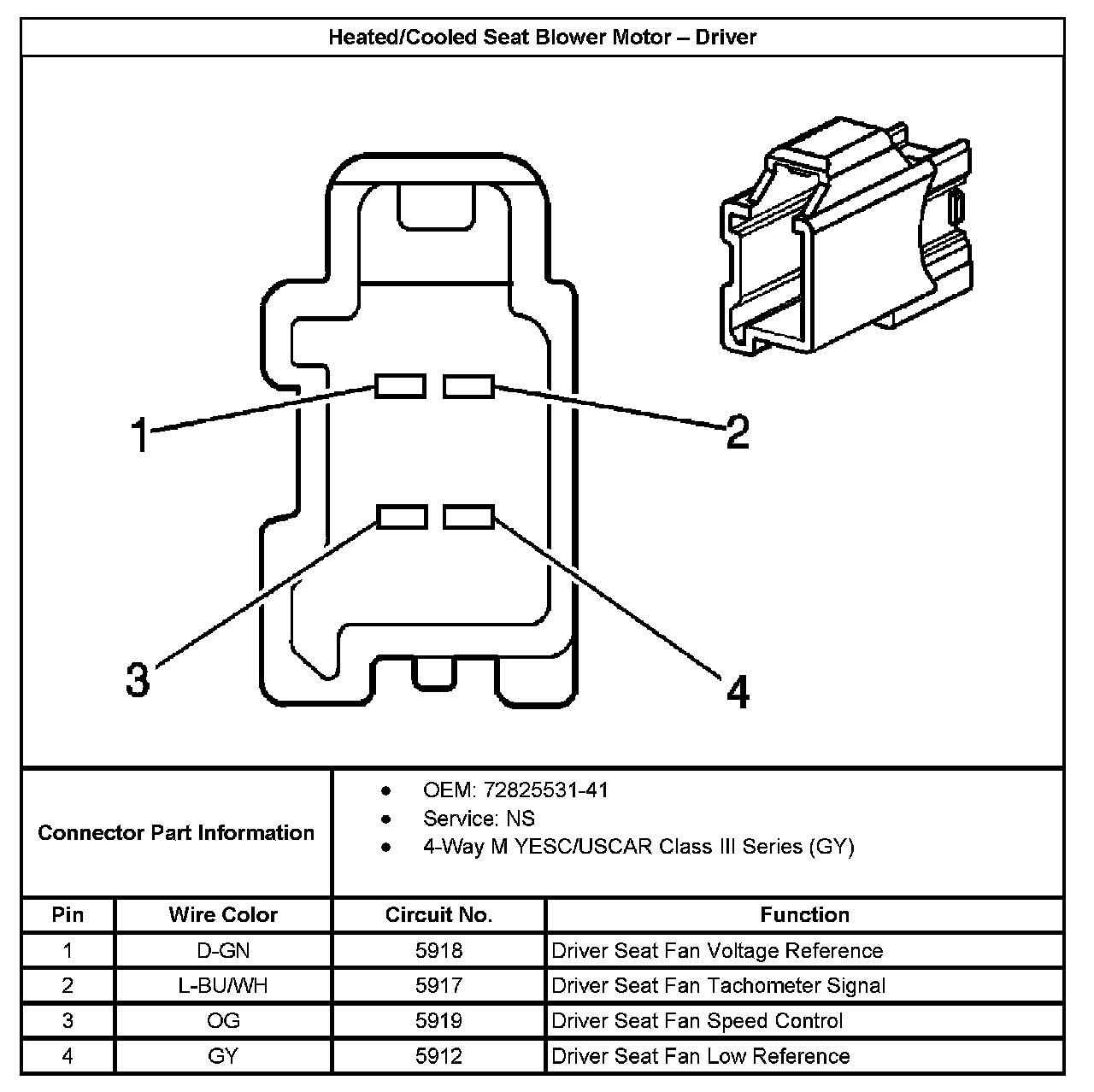

Heated/Cooled Seat Blower Motor - Driver:

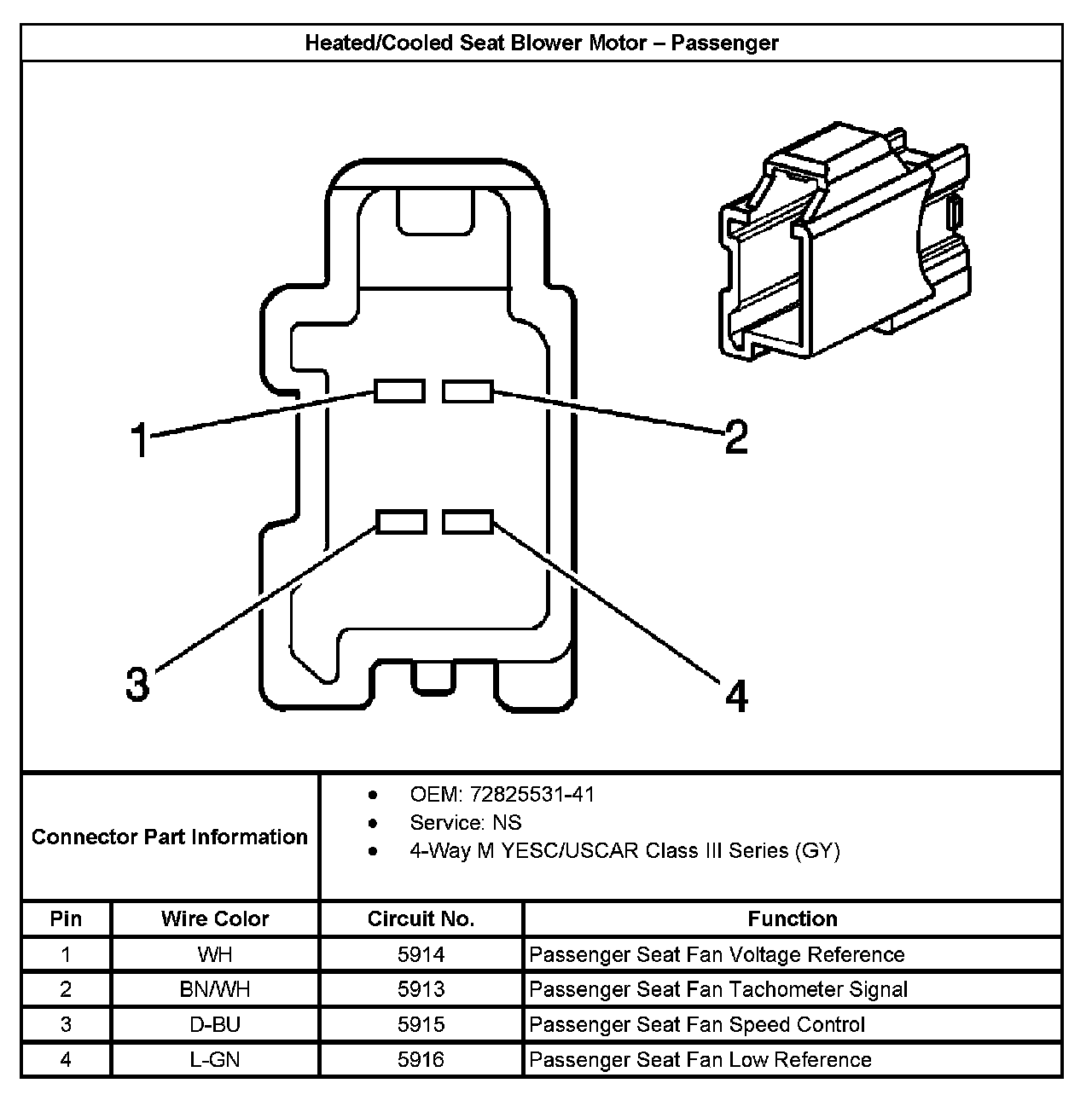

Heated/Cooled Seat Blower Motor - Passenger:
