Home
>>
Cadillac
>>
2005
>>
XLR V8-4.6L VIN A
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
>>
LF Midrange
LF Midrange

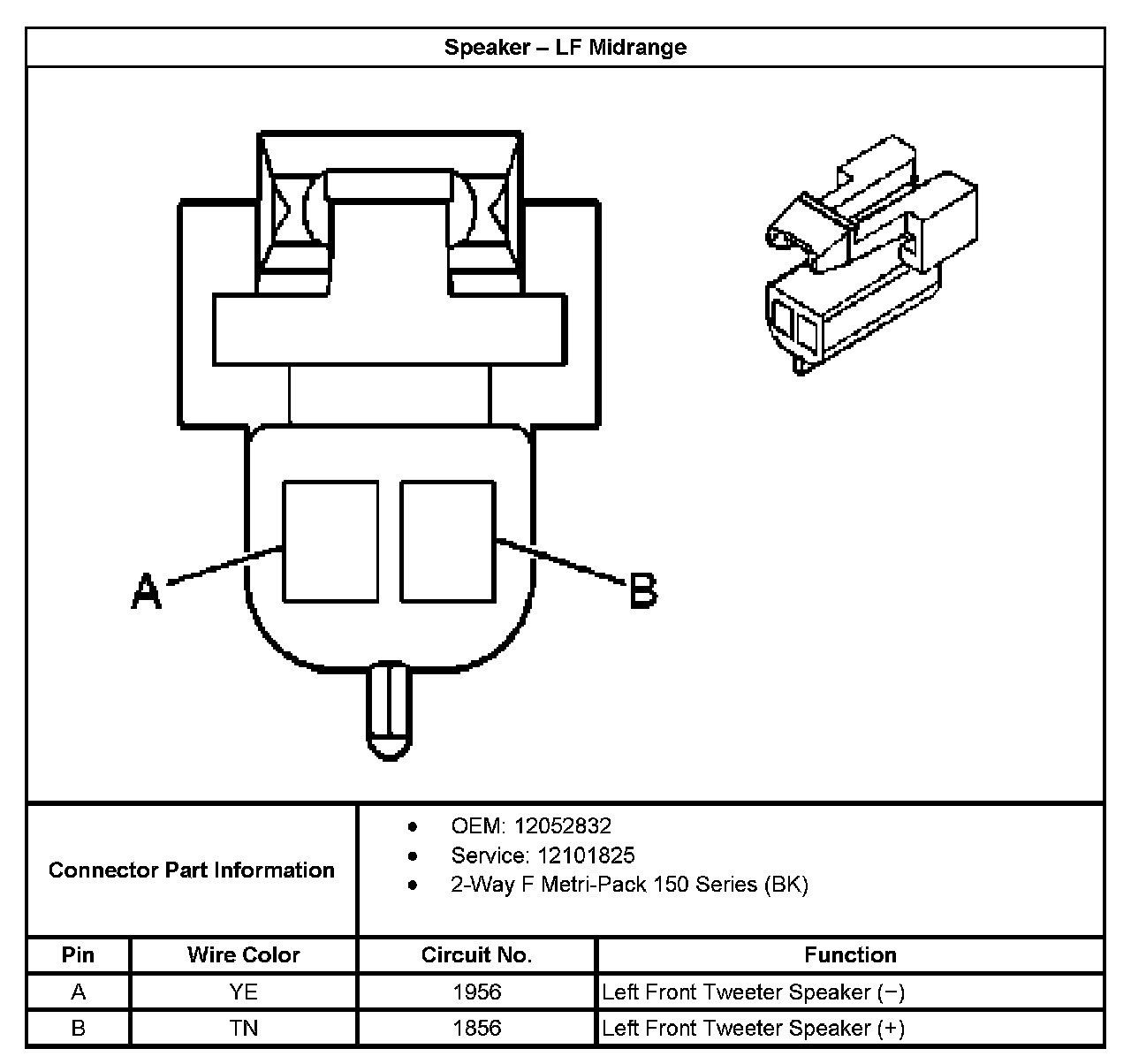

Speaker - LF Midrange:
