Home >> Cadillac >> 2005 >> XLR V8-4.6L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> Speaker >> RF Midrange

RF Midrange

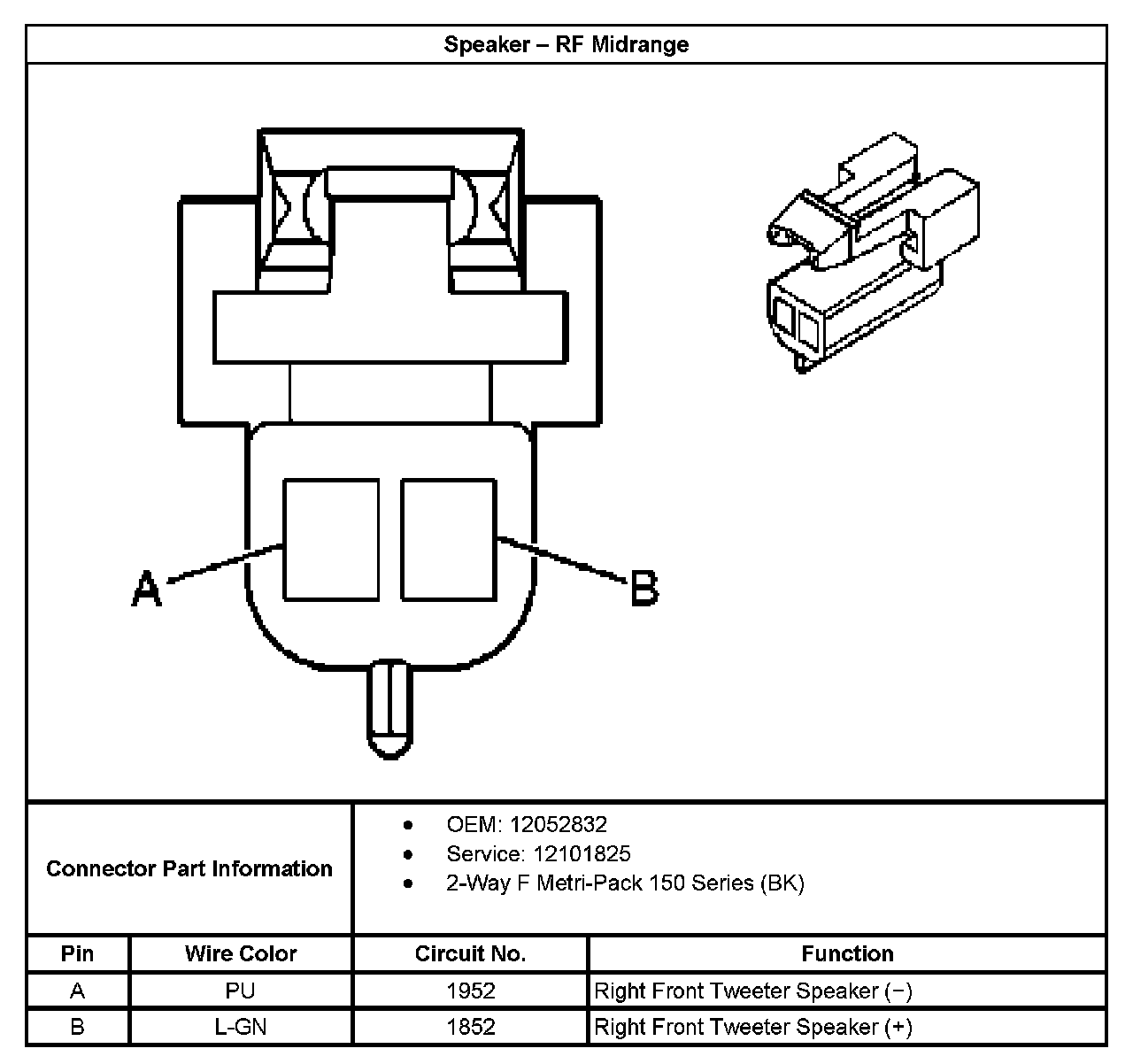

Speaker - RF Midrange:
