Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
2005
>>
XLR V8-4.6L VIN A
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Control Systems
Transmission Control Systems

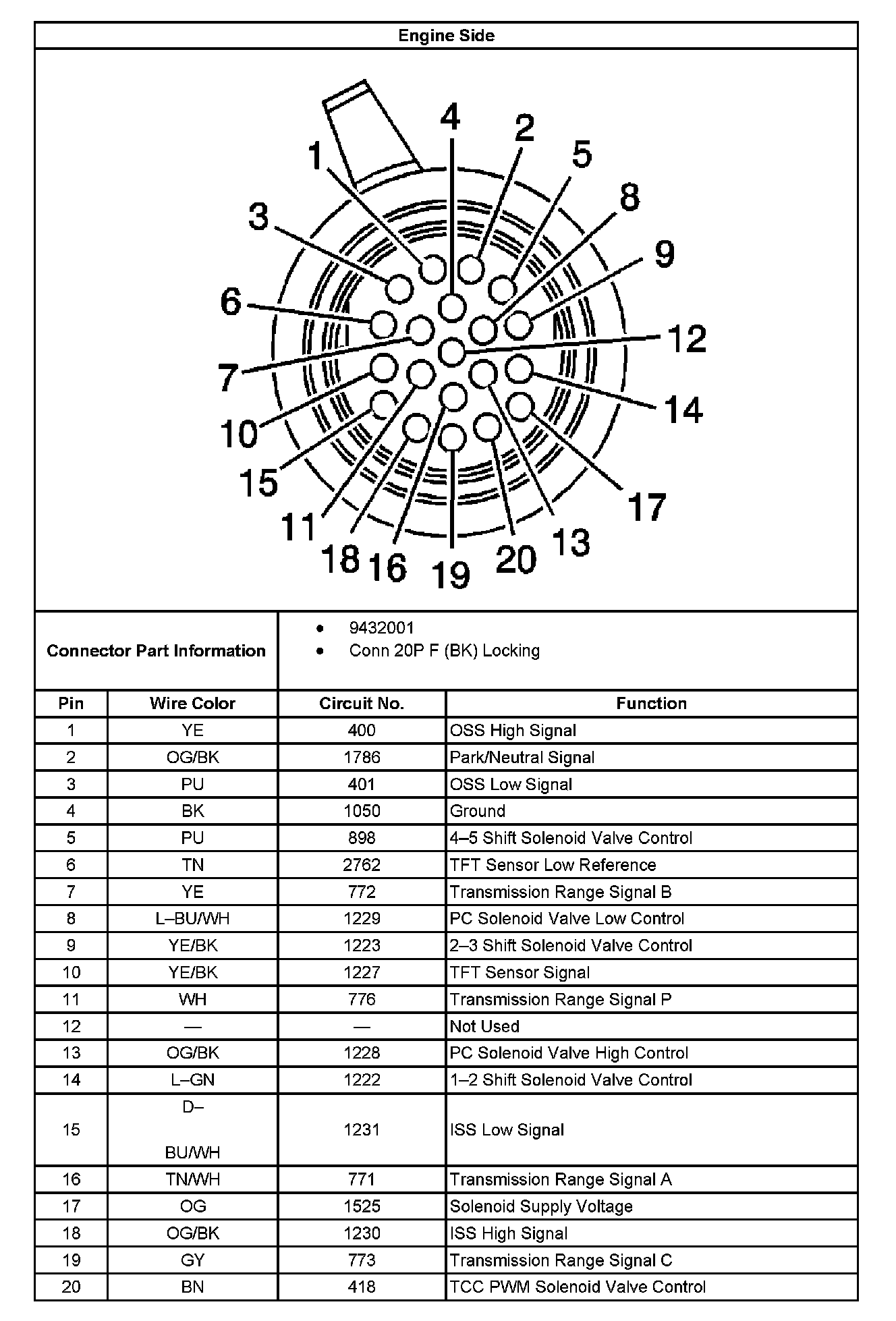

Automatic Transmission Inline 20-Way Connector:

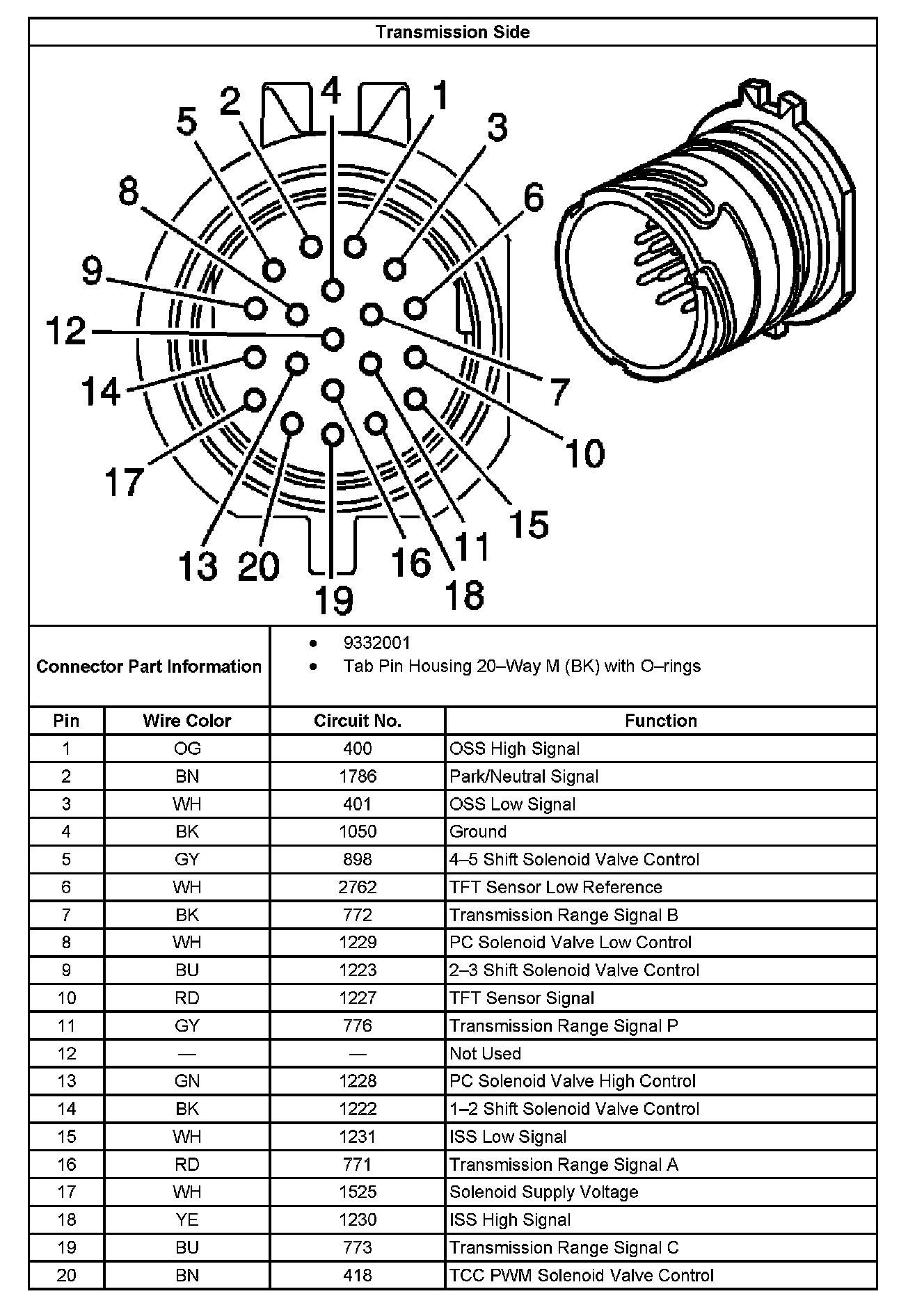

Automatic Transmission Inline 20-Way Connector:
