Variable Induction Control Solenoid

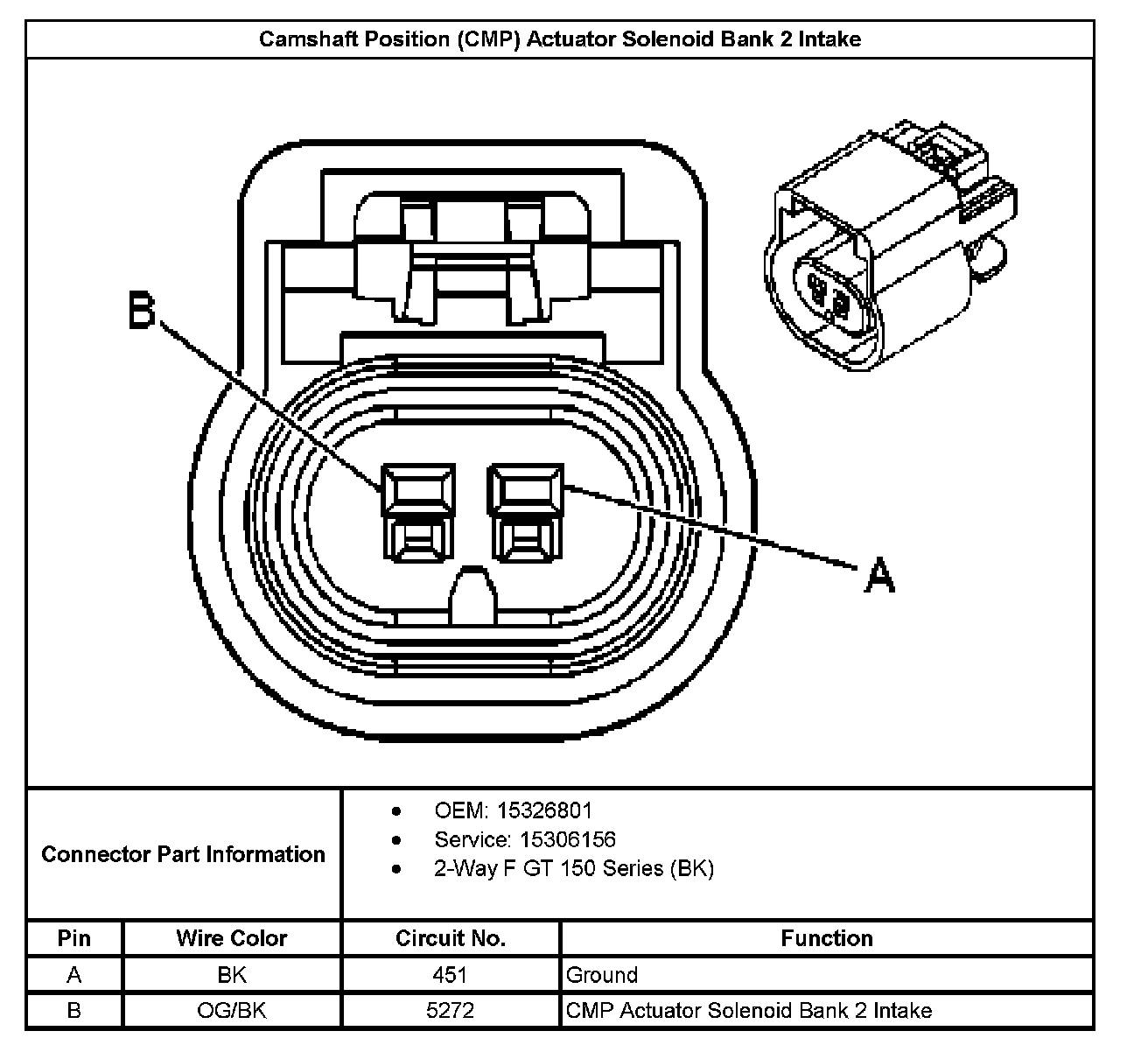

Camshaft Position (CMP) Actuator Solenoid Bank 2 Intake:

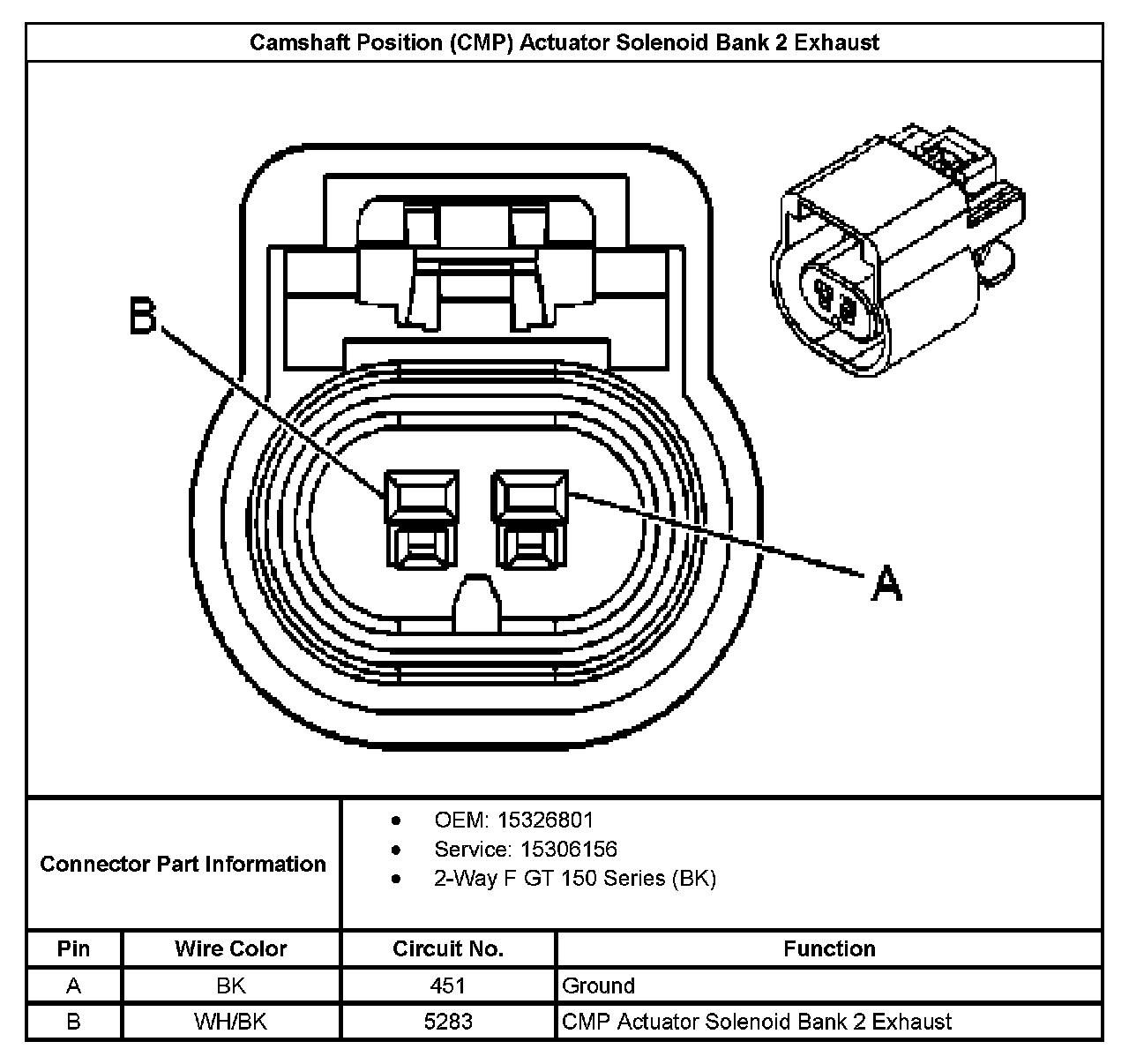

Camshaft Position (CMP) Actuator Solenoid Bank 2 Exhaust:



Camshaft Position (CMP) Actuator Solenoid Bank 1 Intake:

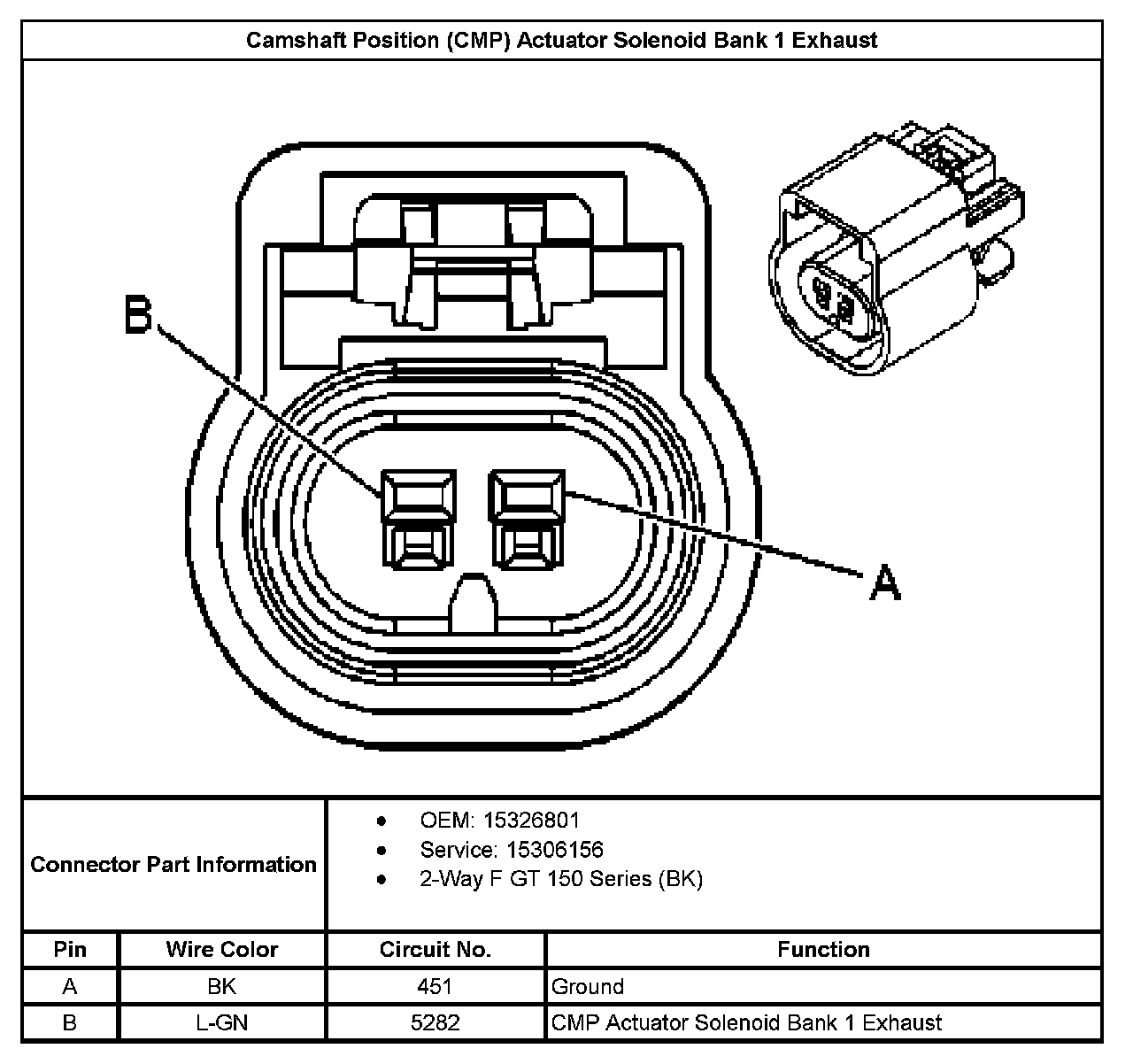

Camshaft Position (CMP) Actuator Solenoid Bank 1 Exhaust:
