Cadillac
>>
2005
>>
XLR V8-4.6L VIN A
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Locations
>>
Center of HVAC Module
Center of HVAC Module

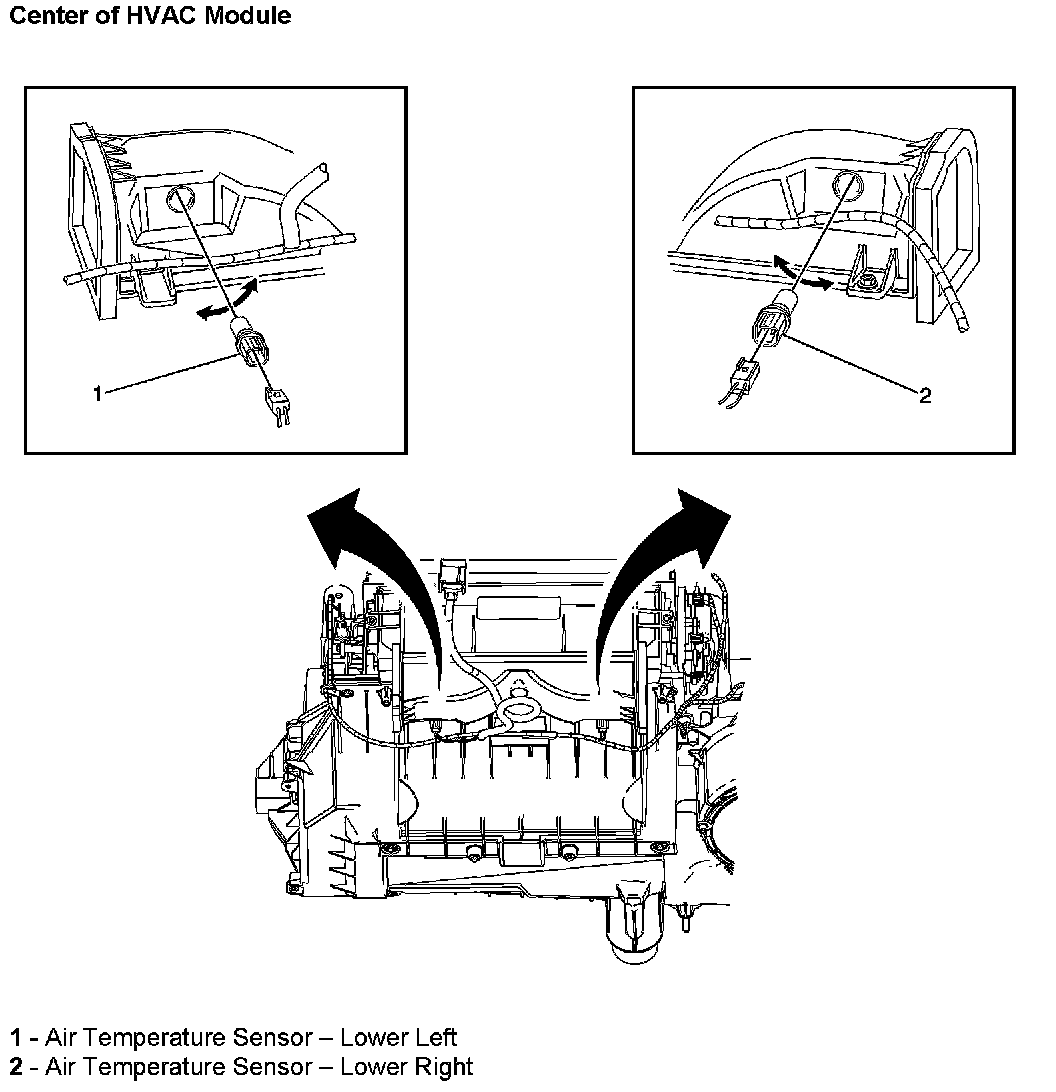

Center Of HVAC Module:

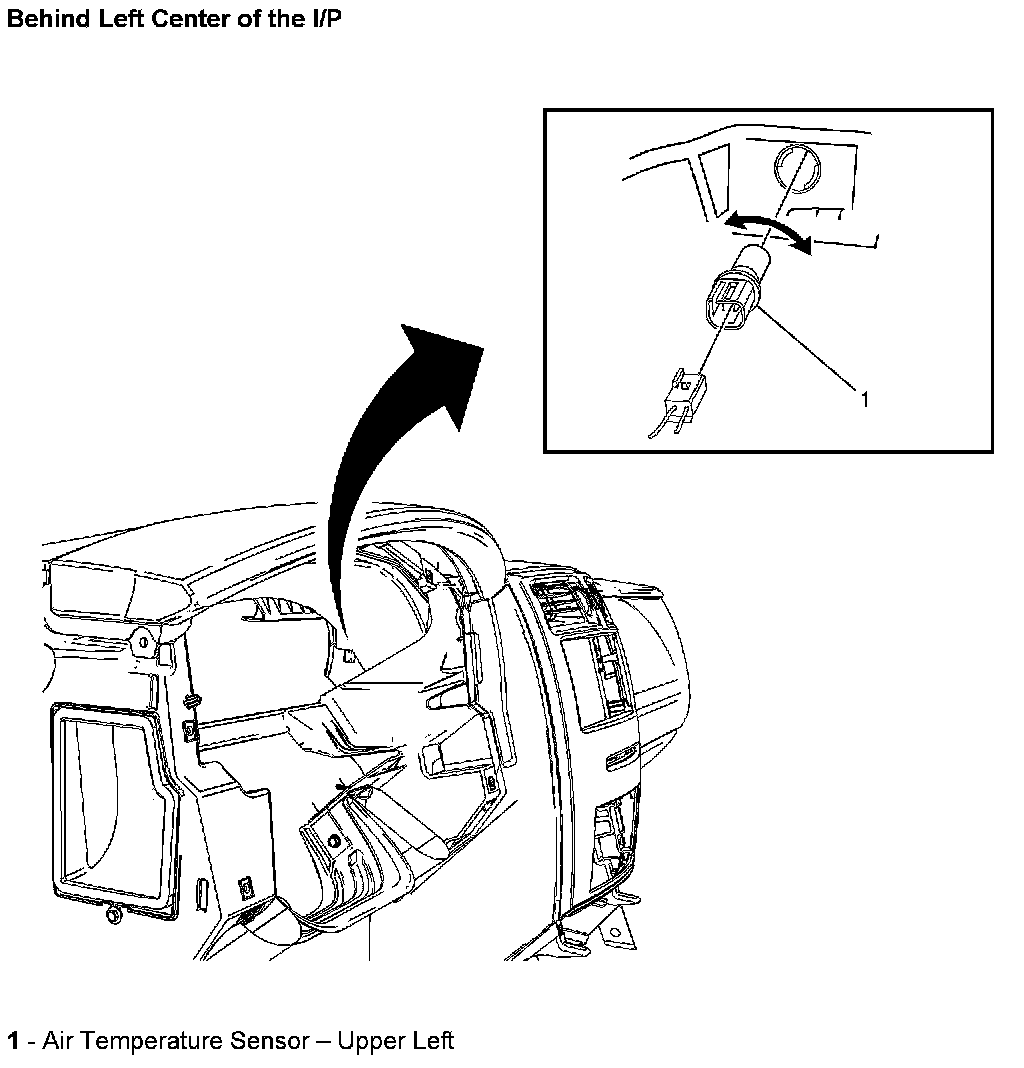

Behind Left Center Of The I/P:

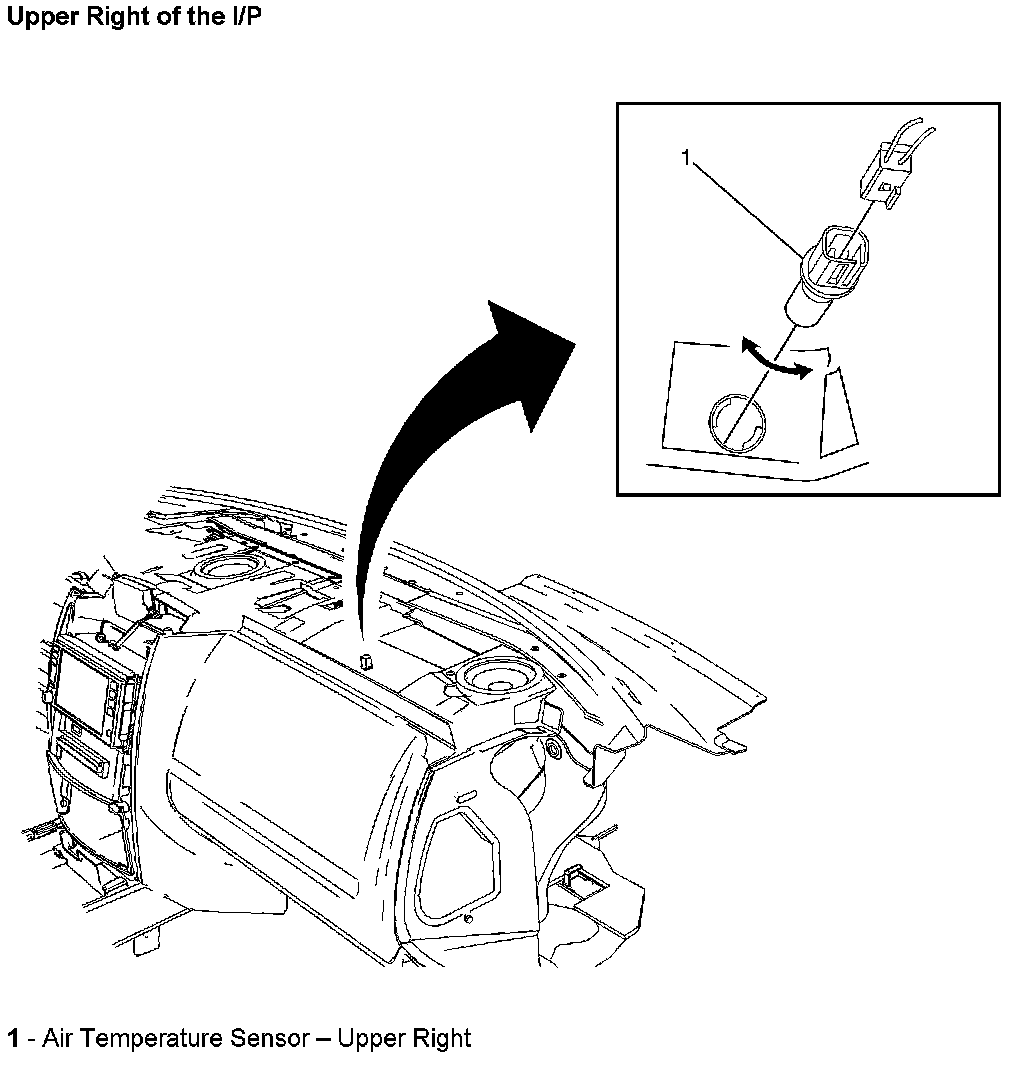

Upper Right Of The I/P:
