Front Fender Sound Insulator Replacement

Fender Sound Insulator Replacement - Front

Removal Procedure

1. Remove the front wheelhouse liner. Refer to Wheelhouse Liner Replacement - Front (Service and Repair) .

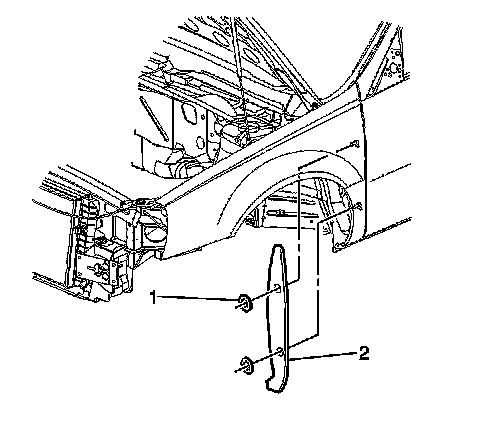

2. Remove the push on retainers (1) securing the front fender sound insulator (2) to the vehicle.
3. Remove the front fender sound insulator (2) from the vehicle.



Installation Procedure





1. Install the front fender sound insulator (2) to the vehicle.
2. Install the push on retainers (1) to secure the front fender sound insulator (2) to the vehicle.
3. Install the front wheelhouse liner. Refer to Wheelhouse Liner Replacement - Front (Service and Repair) .
